Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Al sheave, clevis, SPP


Code: SPP-1A
Brand: Scott Power Products
Product Details
Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Al sheave, clevis, SPP

SPP Universal Stringing Roller

Part No. SPP-1A

Versatile stringing roller suitable for a wide range of stringing projects

FEATURES & BENEFITS

  • Suitable for distribution and ABC
  • Aluminium sheave
  • Lightweight high strength heat treated aluminium

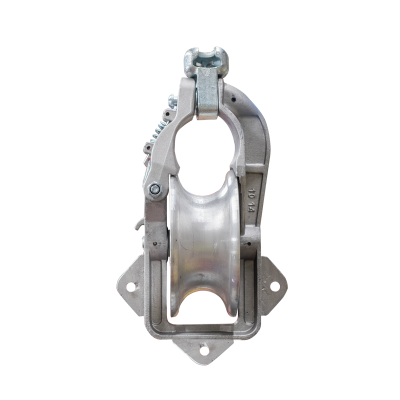

  • Versatile attachment fittings include side and bottom tags and top ball socket fitting
  • Side gate latch can be locked open
  • Sheave is profile machined permitting precise sagging of conductor
  • High quality permanently lubricated high temperature precision bearings

SPECIFICATIONS

  • Maximum OD Conductor 50mmOD
  • 1134kg WLL
  • Bottom of Groove Diameter 110mm
  • Overall Height 370mm
  • Overall Width 205mm
Specifications
Part No.Sheave MaterialMax Conductor OD (mm)WLL (kg)Weight (kg)Bottom of Groove Diameter (mm)Overall Heigh (mm)Overall Width (mm)
SPP-1AAluminium5011304110370205
SPP-1A-DIDuctile Iron5011305110370205

Companion Products

  • SPP-1A-2A
    Insulator bracket, suit SPP-1A max 125mm OD insulator flange, sml/med neck insulators
  • SPP-1A-BKT

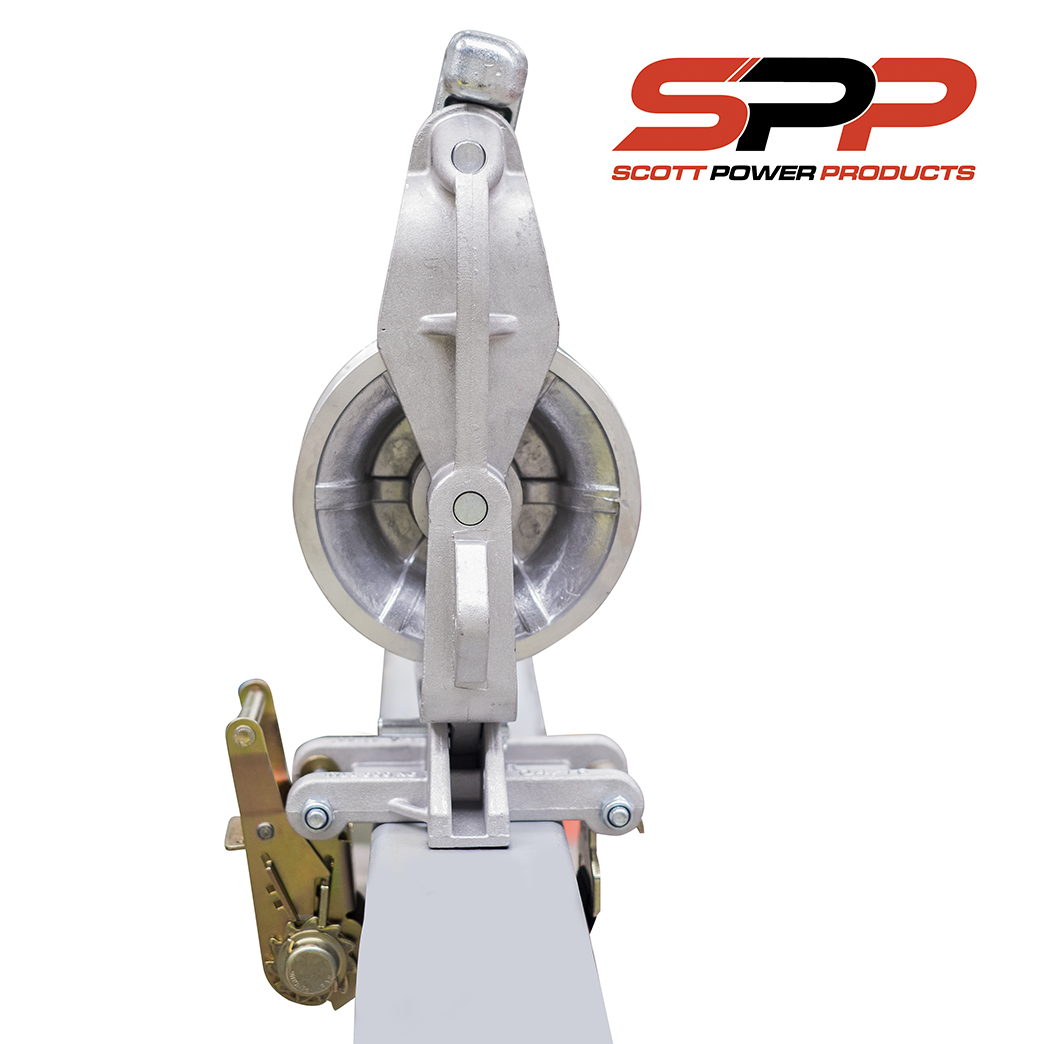

    Universal roller bracket, suits SPP-1A, min x-arm 100mm, pole 200-470mm OD, 500kg WLL,
  • SPP-1A-CAB
    Bracket, roller, cross arm mount, suits x-arms 127x152mm, 5X6", Al cast, SPP
  • SPP-1A-DI
    Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Ductile Iron sheave - SPP
