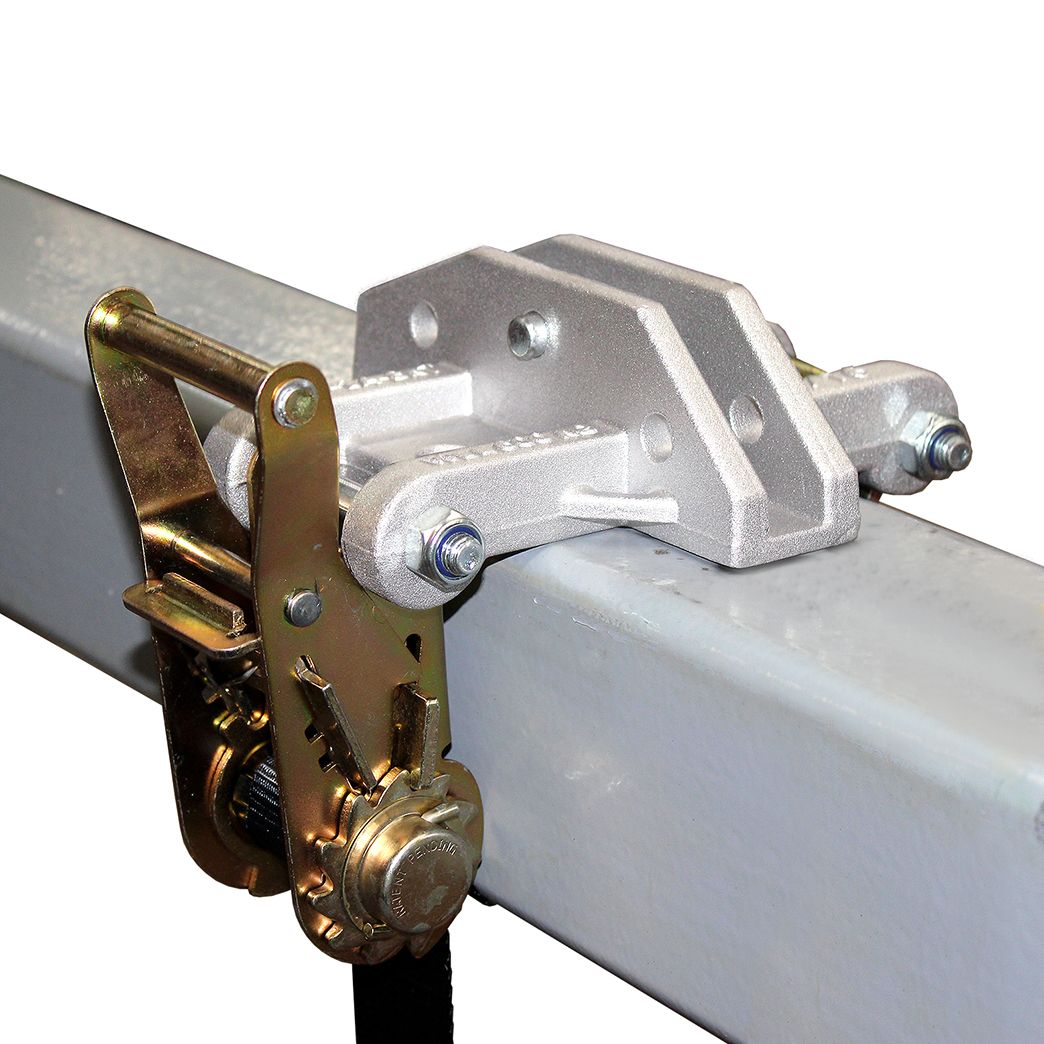

Universal roller bracket, suits SPP-1A, min x-arm 100mm, pole 200-470mm OD, 500kg WLL,

Ten Group // Cable Pulling and Hauling Equipment // Cable Rollers // Overhead Distribution Rollers // Universal roller bracket, suits SPP-1A, min x-arm 100mm, pole 200-470mm OD, 500kg WLL,
Universal roller bracket, suits SPP-1A, min x-arm 100mm, pole 200-470mm OD, 500kg WLL,


Code: SPP-1A-BKT
Brand: Scott Power Products
Product Details
Universal roller bracket, suits SPP-1A, min x-arm 100mm, pole 200-470mm OD, 500kg WLL,

FEATURES & BENEFITS

  • Versatile mounting bracket for crossarms and poles
  • Frame made from Cast Aluminium
  • Lightweight, easy to install
  • Heavy Duty Strap and Zinc Plated Ratchet Assembly
  • 3 Mounting holes for various configurations
  • Ball pin to secure roller

SPECIFICATIONS

  • Min Cross Arm Size 100mm x 100mm
  • Suit Poles 200-470mmOD
  • Weight 2.0kg

Suits Universal Roller SPP-1A & SPP-1A-DI (Sold Separately)

Specifications
Part No.Sheave MaterialMaximum Conductor OD (mm)WLL (kg)Weight (kg)Bottom of Groove Diameter (mm)Overall Heigh (mm)Overall Width (mm)
SPP-1AAluminium5011304110370205
SPP-1A-DIDuctile Iron5011305110370205
