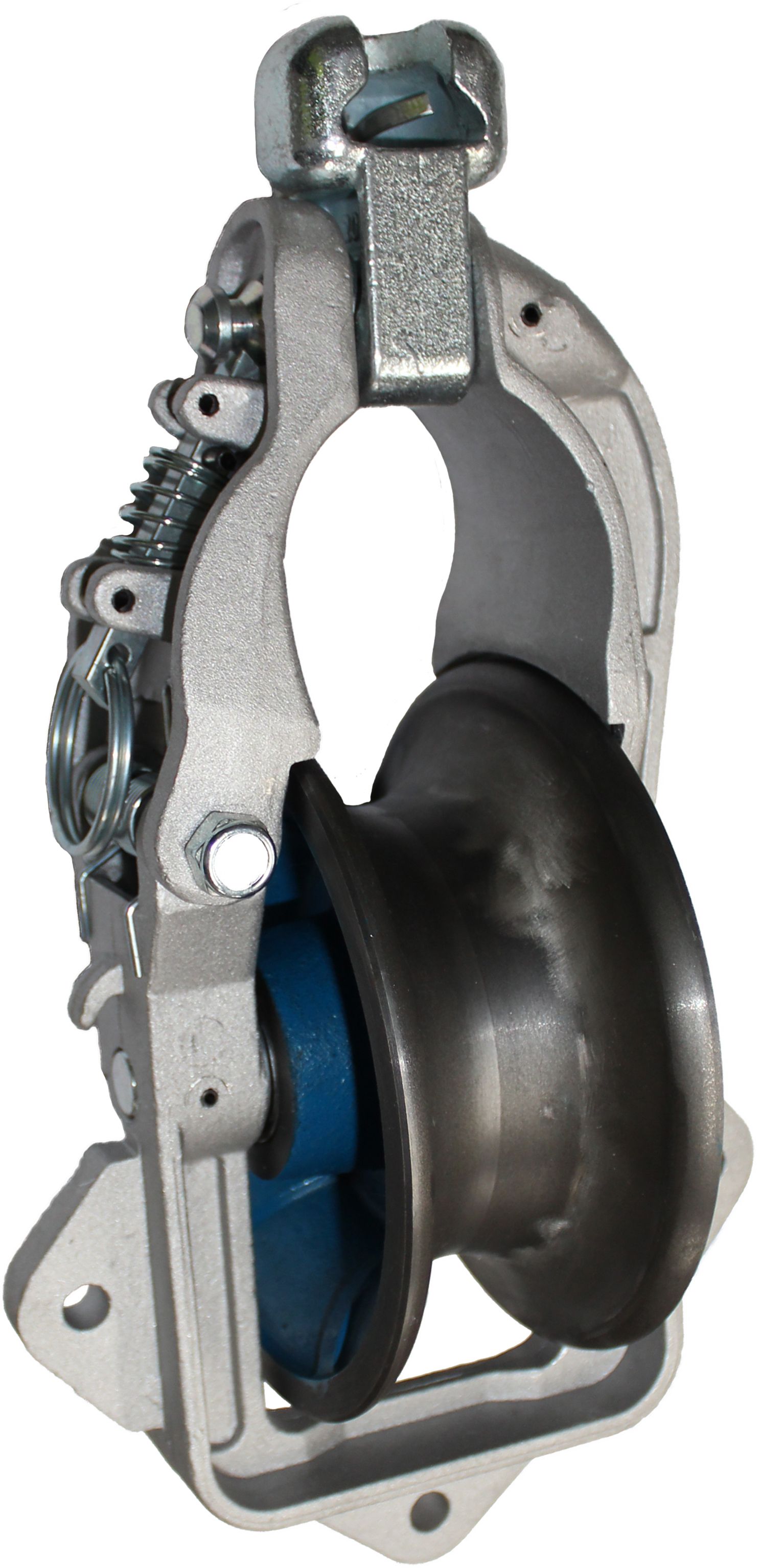

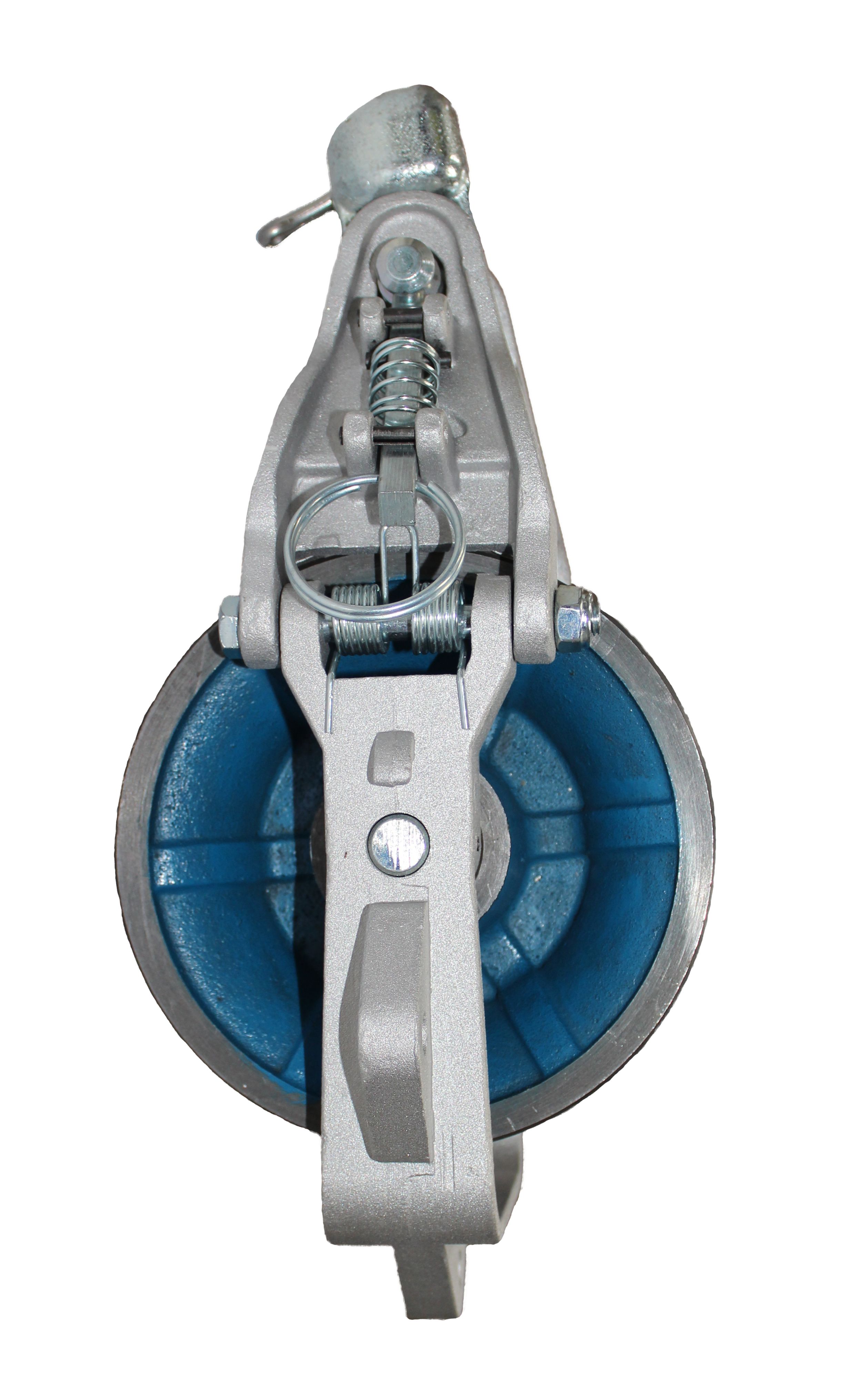

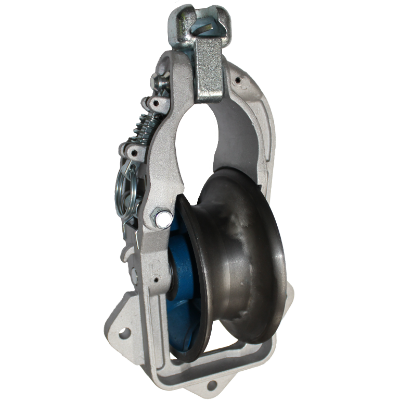

Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Ductile Iron sheave - SPP


Code: SPP-1A-DI
Brand: Scott Power Products
Product Details
Roller, universal, 110mmD, SWL 1130kg, 51mmD max cond, Ductile Iron sheave - SPP

FEATURES & BENEFITS

  • IDEAL for running Steel Conductor (e.g. 3/12 steel)
  • Ductile Iron Sheave
  • Lightweight high strength heat treated aluminium
  • Versatile attachment fittings include side and bottom tags and top ball socket fitting
  • Side gate latch can be locked open
  • Sheave is profile machined permitting precise sagging of conductor
  • High quality permanently lubricated high temperature precision bearings

SPECIFICATIONS

  • Maximum OD Conductor 50mmOD
  • 1134kg WLL
  • Bottom of Groove Diameter 110mm
  • Overall Height 370mm
  • Overall Width 205mm
  • Weight 5kg
Specifications
Part No.Sheave MaterialMaximum Conductor OD (mm)WLL (kg)Weight (kg)Bottom of Groove Diameter (mm)Overall Heigh (mm)Overall Width (mm)
SPP-1AAluminium5011304110370205
SPP-1A-DIDuctile Iron5011305110370205

Universal Roller SPP-1A and Bracket SPP-1A-BKT Available (Sold Separately)
