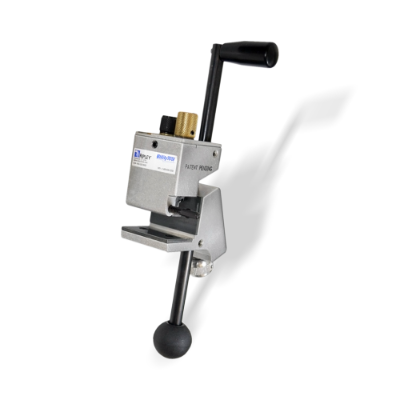

Stripper, cable, adjustable, 12.7mm - 63.5mm, mid span and end strip, Ripley

Stripper, cable, adjustable, 12.7mm - 63.5mm, mid span and end strip, Ripley


Code: US01-7000
Brand: Ripley Tools
Product Details
Stripper, cable, adjustable, 12.7mm - 63.5mm, mid span and end strip, Ripley


Introducing the industry’s most versatile, reliable and accurate adjustable tool for mid-span and end stripping on HV and LV utility cables. Click the image on the right to view the Ripley Stripper in action.

Ripley Cable Sheath Stripper Video

Features

  • Perfect for mid-span and end stripping on CCT, Hendrix, Spacer Wire & Tree Wire Cables
  • Easily strip mid-span double insulations in one go for direct connection via PG or Wedge Style connector, or strip outer sheath only for insulated piercing connectors (IPC’s)
  • Adjusts for 12.7mm to 63.5mm cable diameters
  • Eliminates the need for traditional stripping knives, reducing the risk of cuts or lacerations
  • Heavy duty tool easily removes jacket & various types of insulation materials
  • Patent-pending, self-aligning design maintains optimum blade position to produce precise cuts for reliablesplices & connections
  • Well-balanced tool has low friction parts & ergonomic handles to reduce effort & potential strain from repetitive stripping functions
  • Spare blades also available: Part No. US01-7500

Watch the video on the Ripley US01-7000 adjustable cable stripper on the TEN Group channel here

Cable Type HV and LV Utility Cables
Cable Size 12.7mm to 63.5mm
Compatible Materials Jacket URD, PE, PVC, Copper Tape Shield, LC Shield, Flat Strap
Compatible Materials Insulation XLPE, PE, EPR
Cable Access Mid Span Yes
Cable Access End Yes
Blade Adjustability Angle Yes
Blade Adjustability Depth (mm) Yes (1.5 to 10.6)
