Roller, angle, insulator mount suit 76mm neck, 46-84mm opening, max 50mm conductor


Code: SPP-1E-AR
Brand: Scott Power Products
Product Details
Roller, angle, insulator mount suit 76mm neck, 46-84mm opening, max 50mm conductor

Angle Insulator Roller - SPP

Part No. SPP-1E-AR

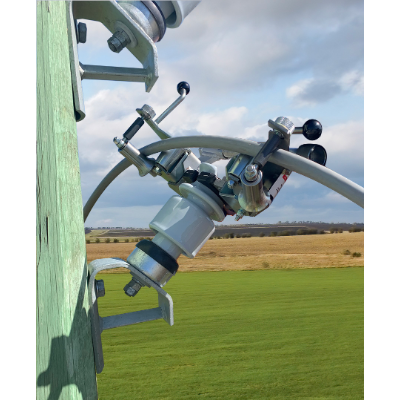

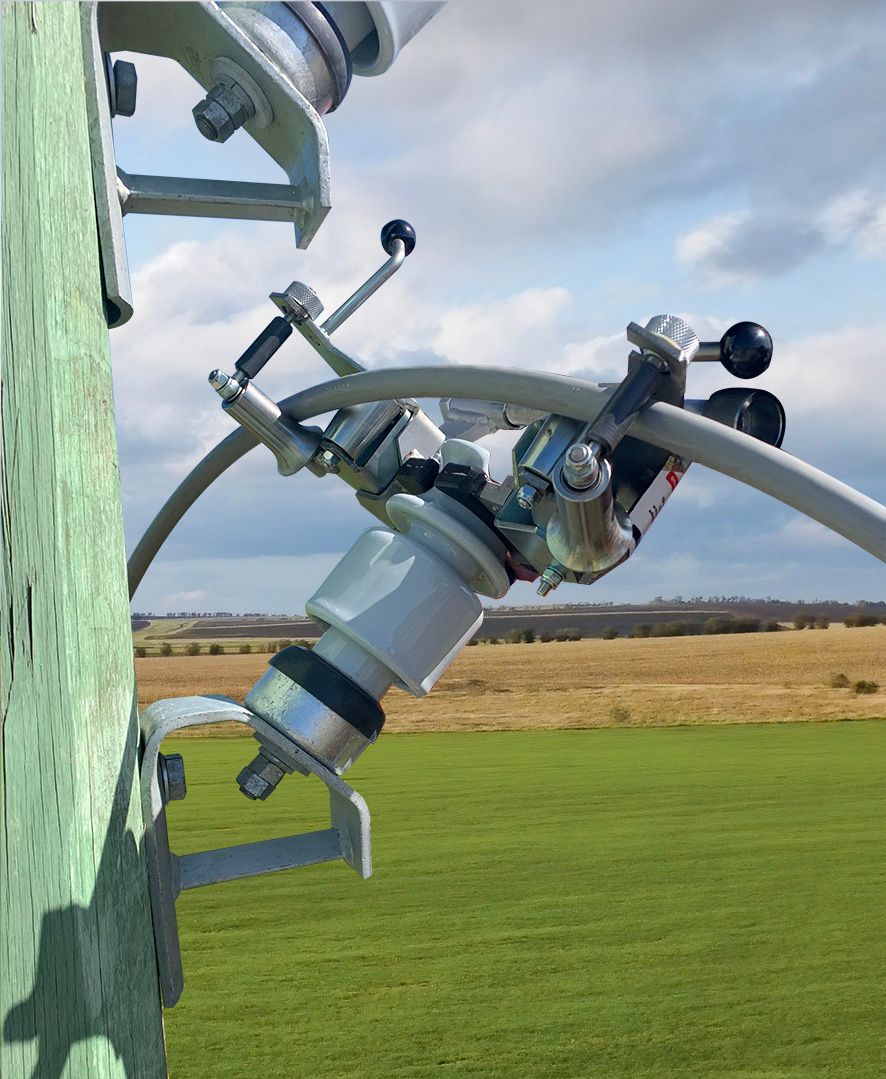

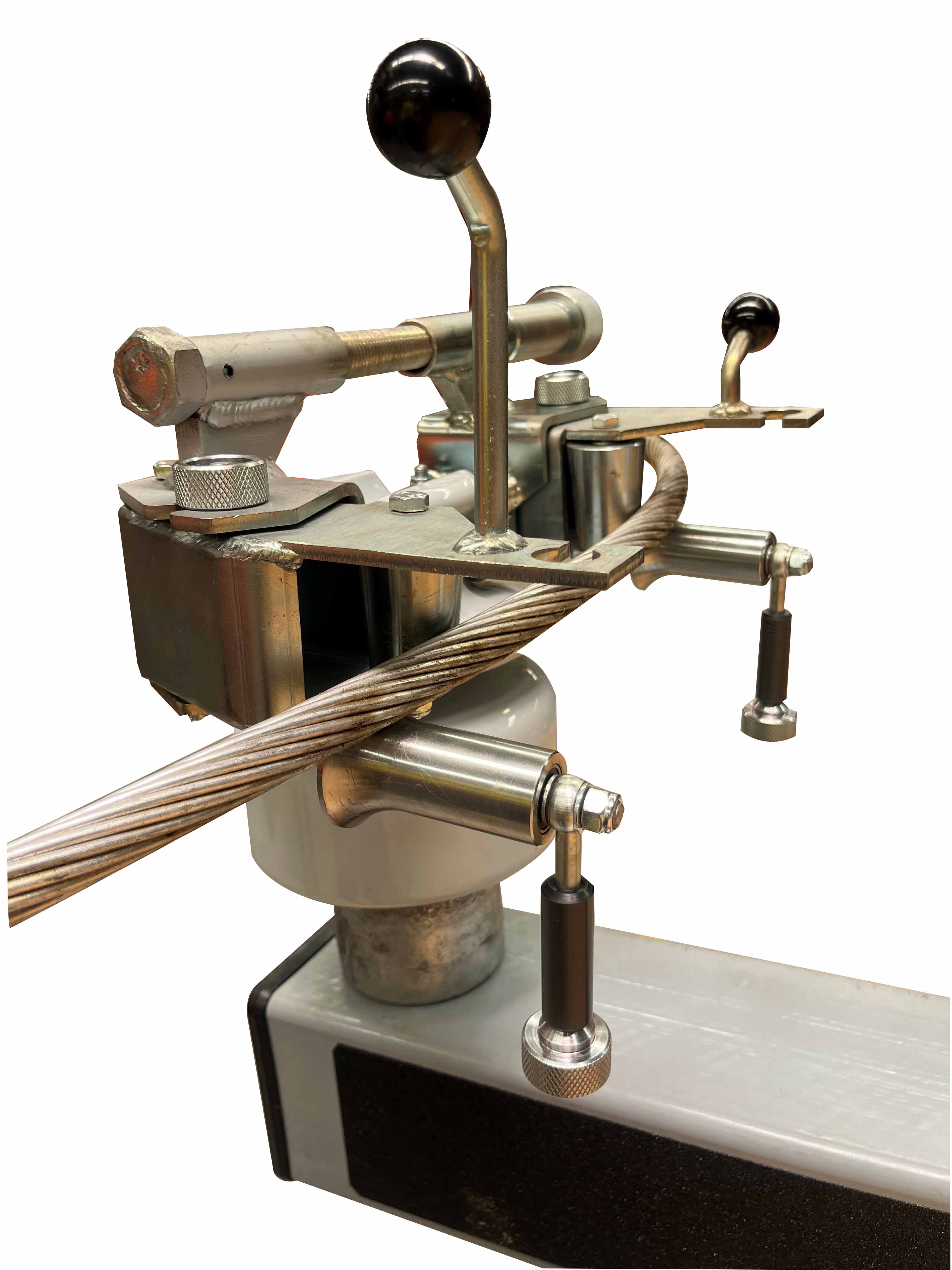

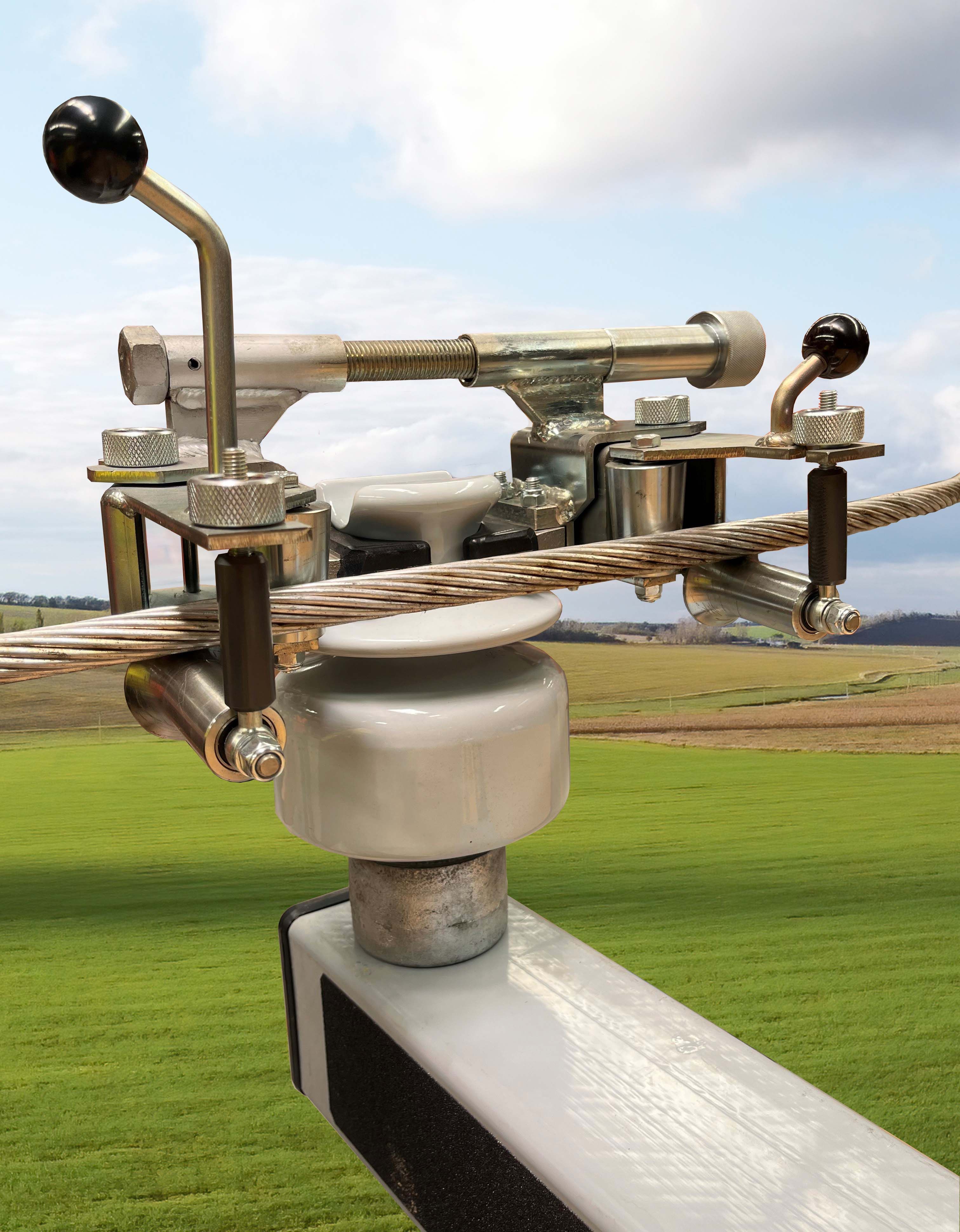

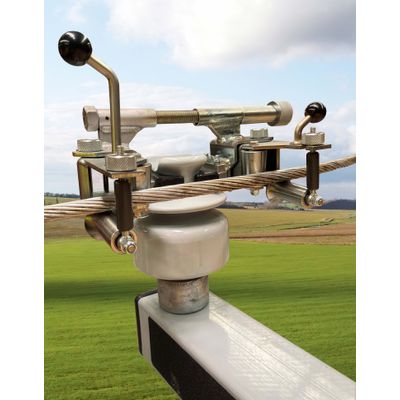

This unique angle insulator roller has 2 adjustable angle rollers and 2 support rollers that allow the conductor to be brought in at the final installation height and adjusted to any required angle alongside the insulator.

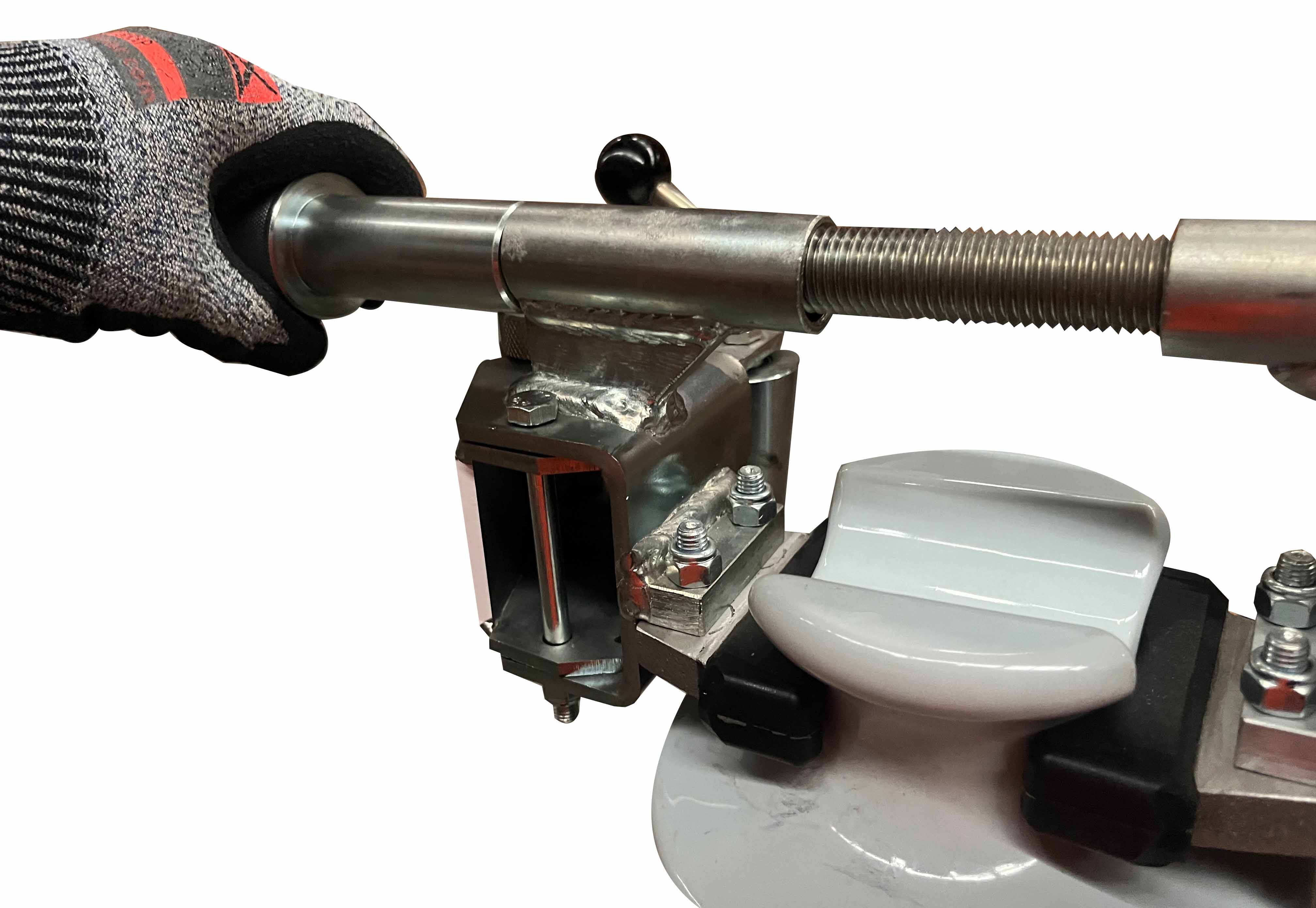

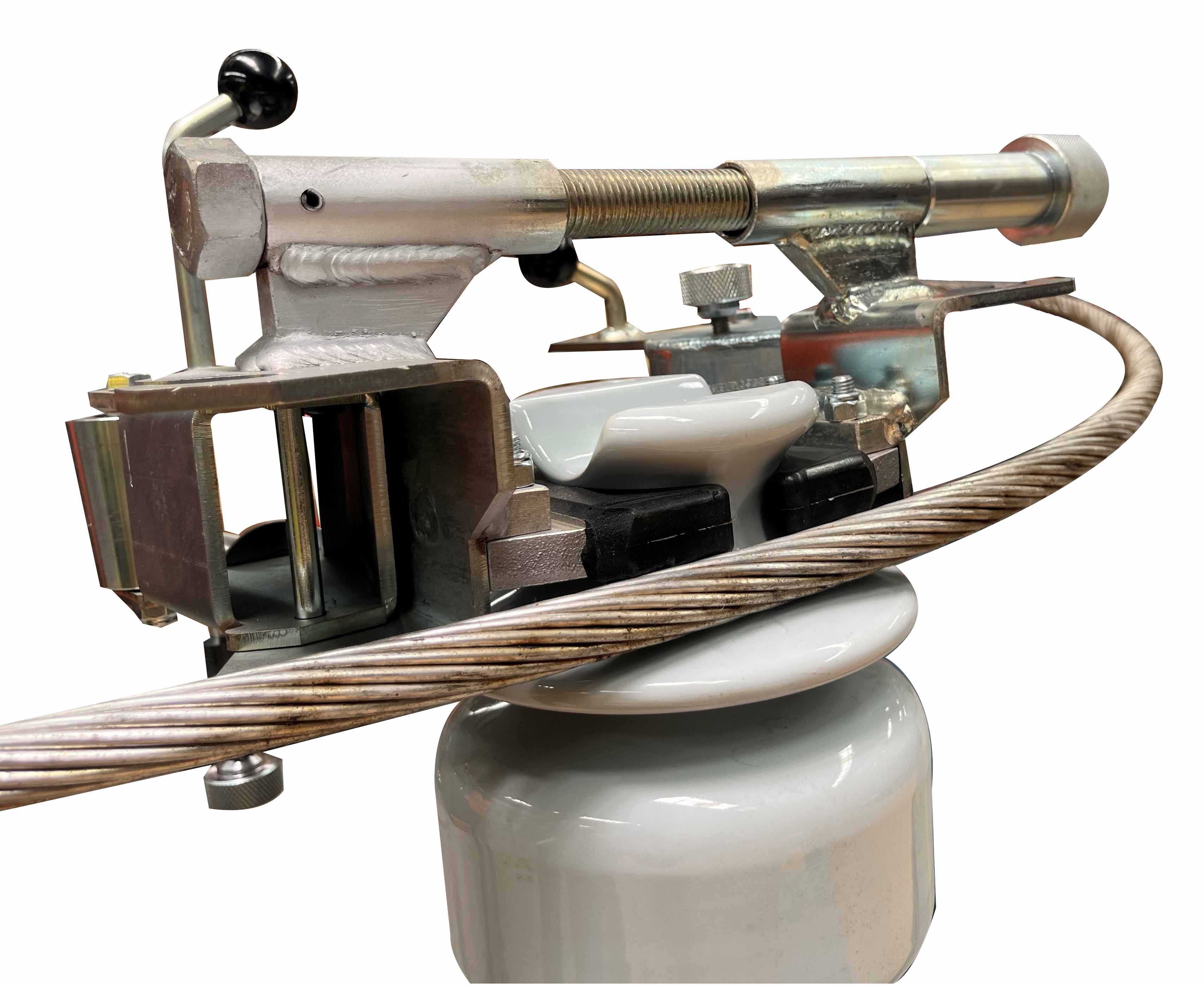

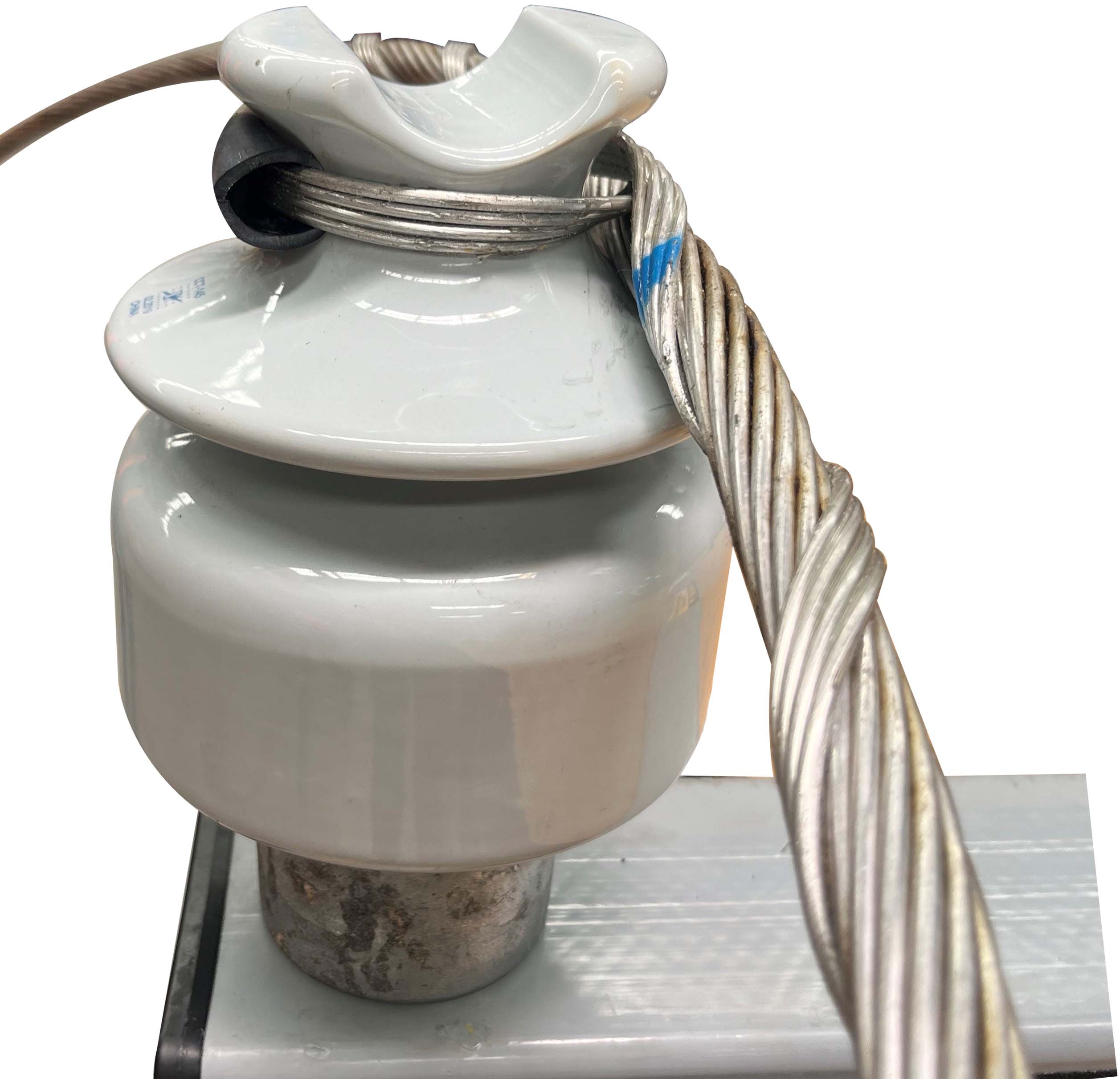

The conductor is fully enclosed at all times during the stringing operation and cannot fall out. When stringing & tensioning is complete, the locking pins are opened and the roller removed, leaving the conductor in its correct position on the insulator.

The sealed bearing assists smooth running of the conductor.

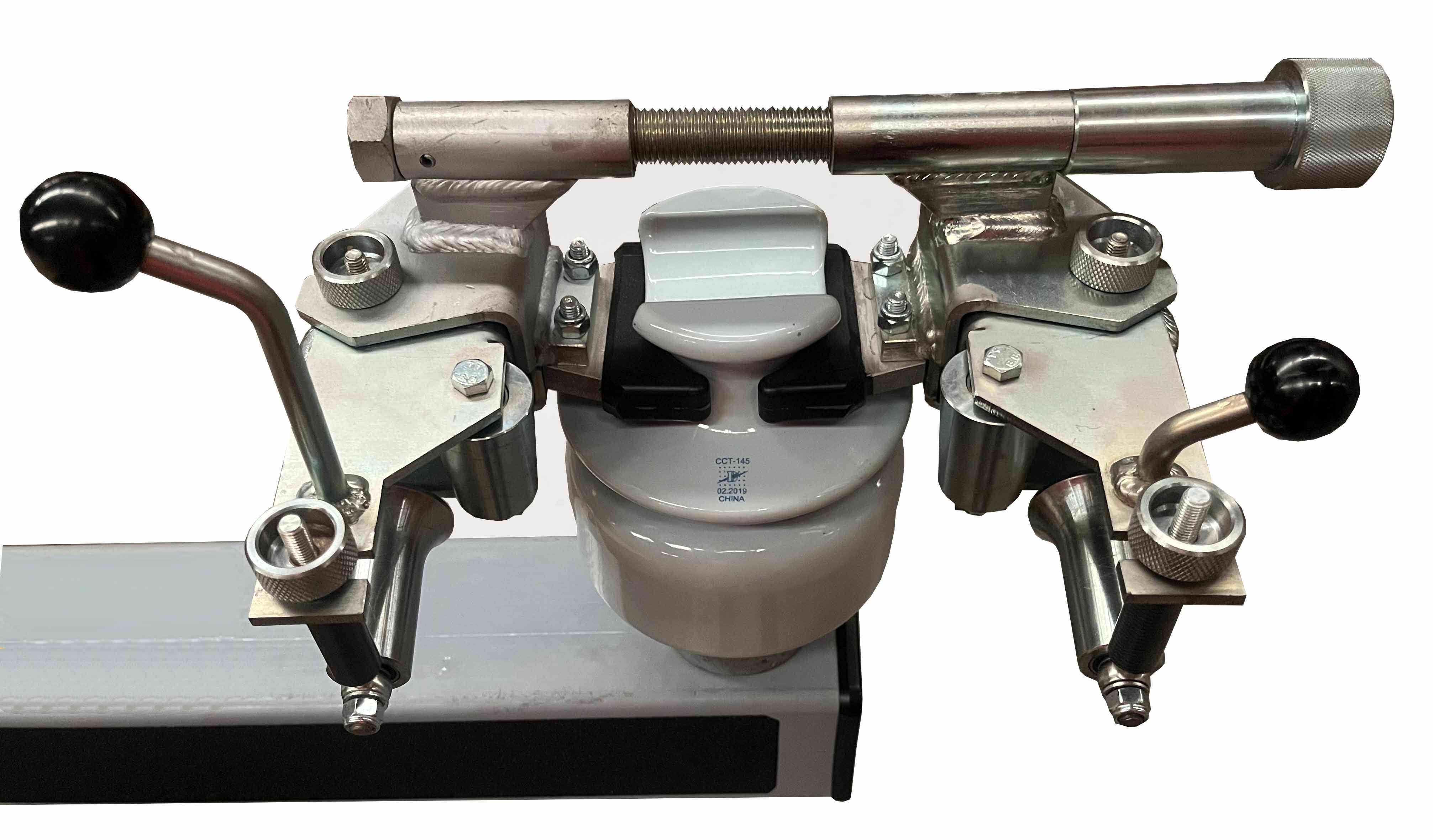

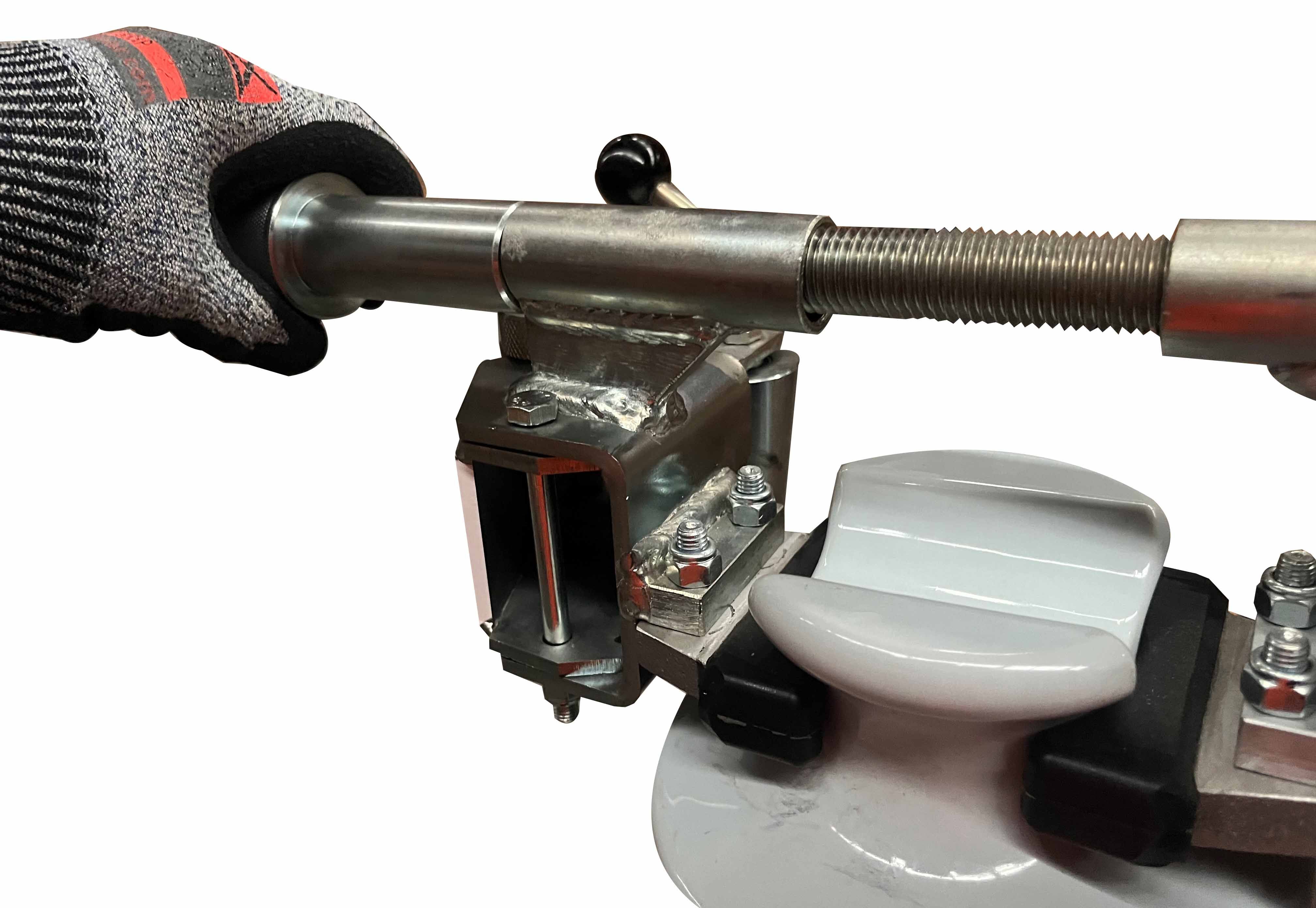

The clamps are specially treated with rubber so as not to damage the insulator.

The roller fits all styles of ceramic insulators.

See below table for suitable neck diameters

Download the attached PDF for installation instructions

Part No.Insulator Neck diameter - MinInsulator Neck diameter - MaxMax Conductor Diameter - MaxConductor TypeWLLWeight
SPP-IE-AR46mm86mm50mmAL/CU/ACSR/ST*/ABC/CCT300kg7.4kg

*Steel Conductor will increase wear and may reduce service life of vertical & horizontal rollers
