Roller, universal, 110mmD, Sherman style pull & turn, SWL 1130kg, 51mmD max cond, SPP

Ten Group // Cable Pulling and Hauling Equipment // Cable Rollers // Overhead Distribution Rollers // Roller, universal, 110mmD, Sherman style pull & turn, SWL 1130kg, 51mmD max cond, SPP
Roller, universal, 110mmD, Sherman style pull & turn, SWL 1130kg, 51mmD max cond, SPP


Code: SPP-1A-SB
Brand: Scott Power Products
Product Details

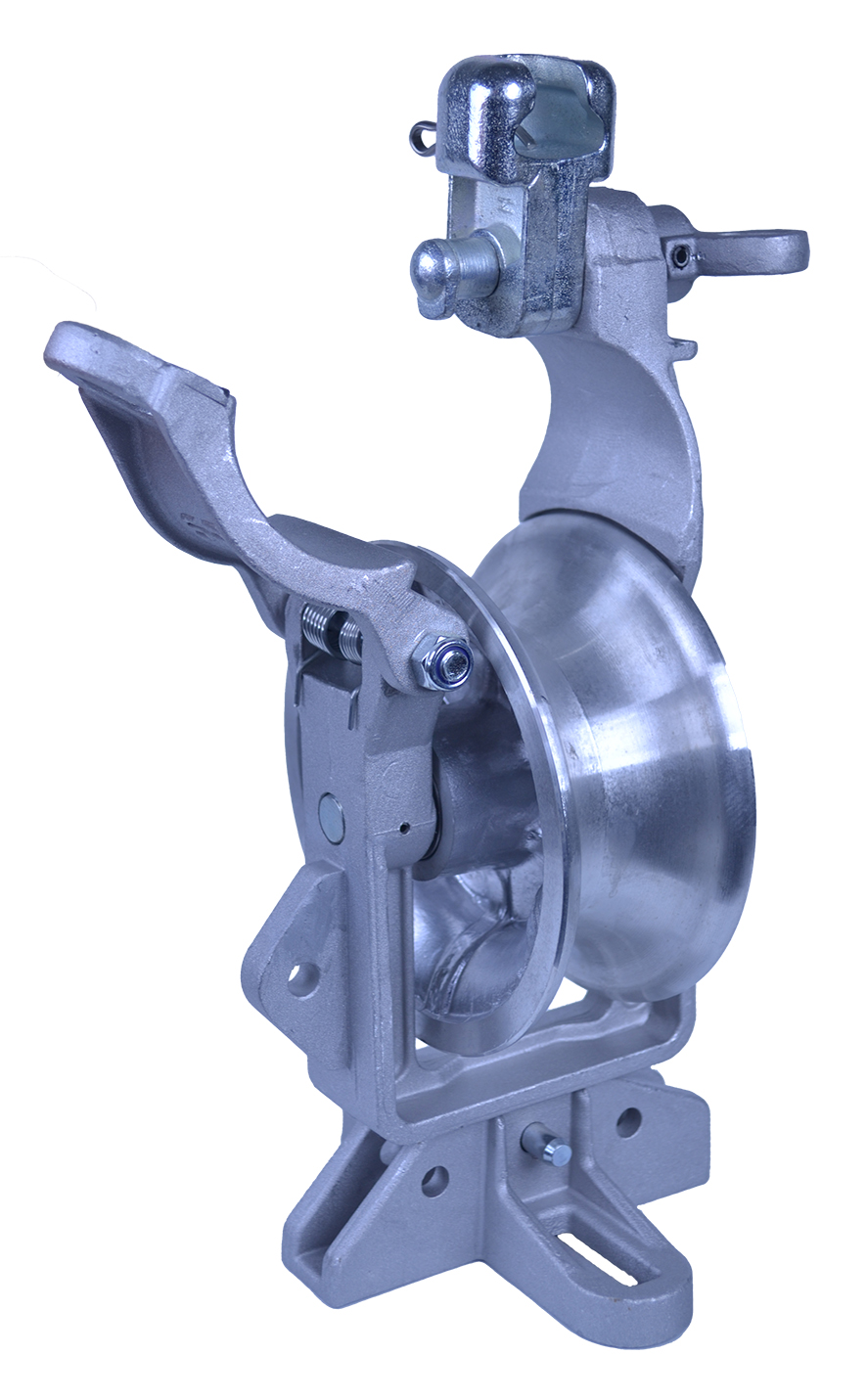

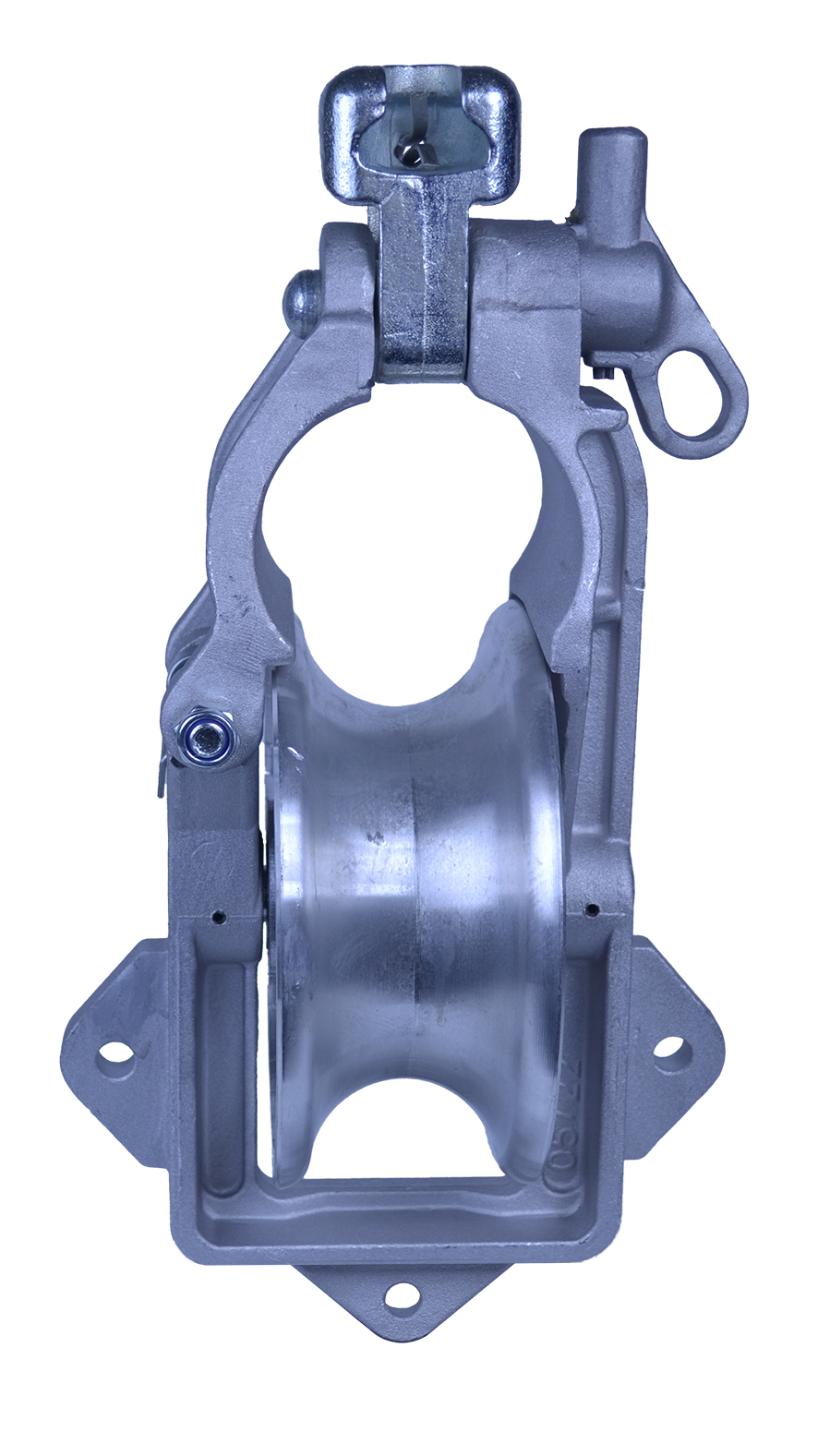

Roller, universal, 110mmD, Sherman style pull & turn, SWL 1130kg, 51mmD max cond, SPP


    Universal Stringing Roller - SPP

    Features

  • Suitable for distribution and ABC
  • Aluminium sheave
  • Lightweight high strength heat treated aluminium
  • Versatile attachment fittings include side and bottom tags and top ball socket fitting
  • Sheave is profile machined permitting precise sagging of conductor
  • High quality permanently lubricated high temperature precision bearings

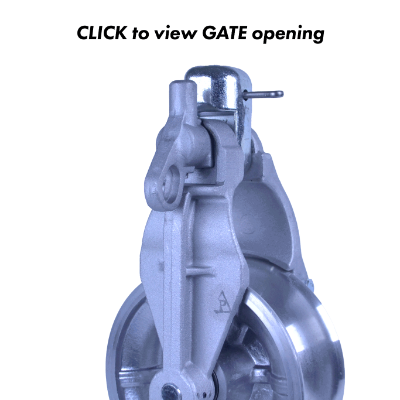

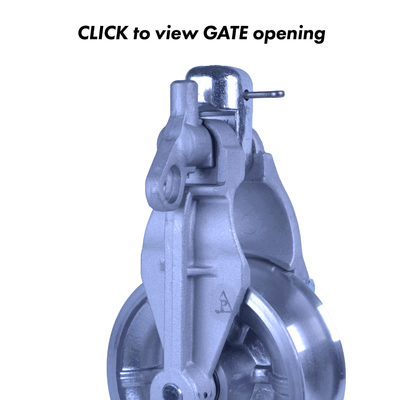

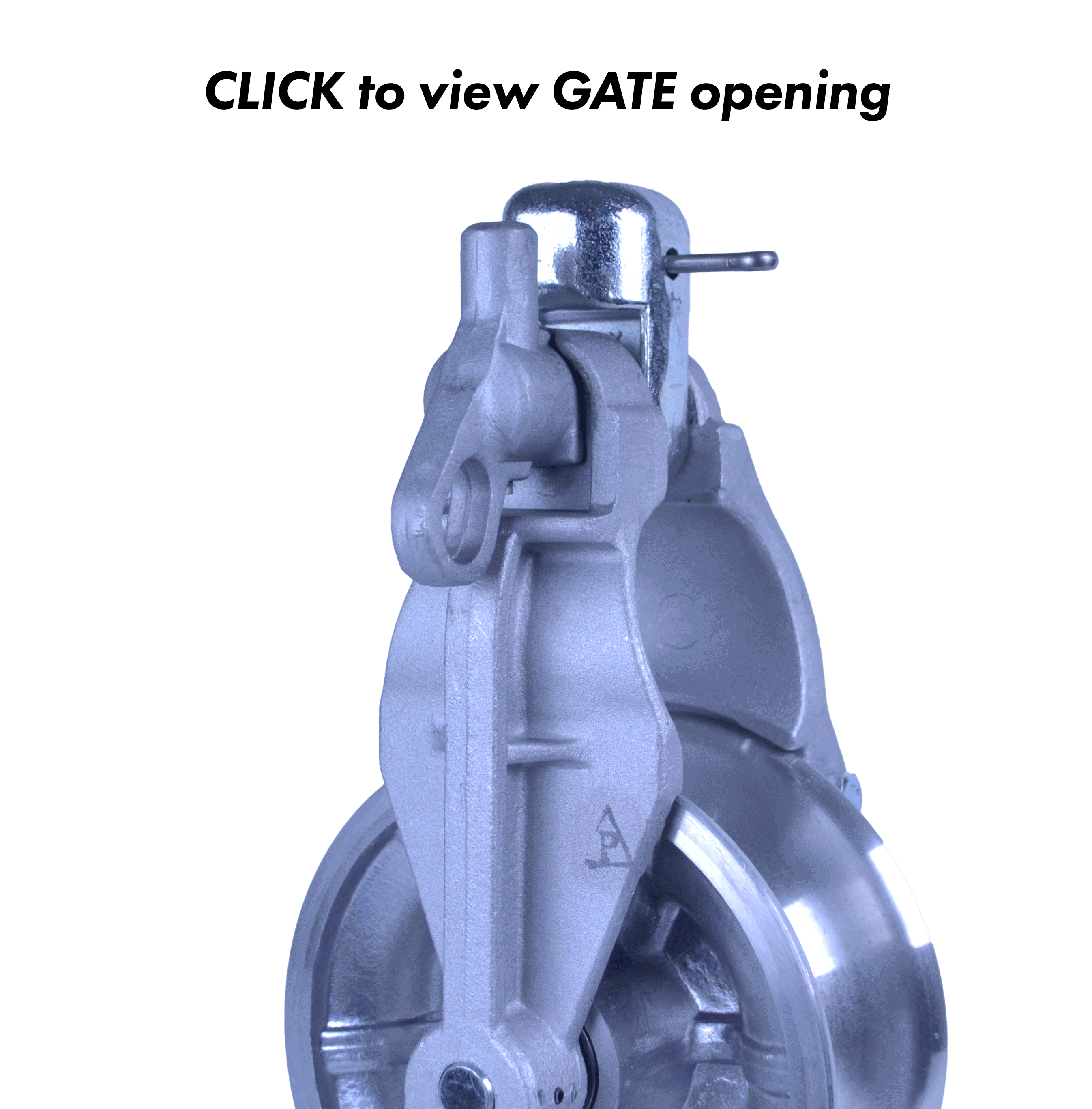

  • “Pull & Turn” release gate
  • Suitable for distribution conductors & ABC
  • Sealed ball bearings
    • Part No.Maximum OD Conductor (mm)WLL (kg)Wt (kg)Bottom of Groove Diameter (mm)
    SPP-1A-SB5011304.1110

    Companion Products

    • SPP-1A-2A
      Insulator bracket, suit SPP-1A max 125mm OD insulator flange, sml/med neck insulators
    • SPP-1A-BKT
      Universal roller bracket, suits SPP-1A, min x-arm 100mm, pole 200-470mm OD, 500kg WLL,
    • SPP-1A-CAB
      Bracket, roller, cross arm mount, suits x-arms 127x152mm, 5X6", Al cast, SPP
