Pump, HP, hydraulic, electric, SA, 0.75kW, 230v, c/w male TC-372 coupler, Assembly

Ten Group // HYDRAULIC TOOLS & EQUIPMENT // Hydraulic Pumps // Electric Hydraulic Pumps // Pump, HP, hydraulic, electric, SA, 0.75kW, 230v, c/w male TC-372 coupler, Assembly
Pump, HP, hydraulic, electric, SA, 0.75kW, 230v, c/w male TC-372 coupler, Assembly


Code: PH240V-SA-A
Brand: Unspecified
Product Details
Pump, HP, hydraulic, electric, SA, 0.75kW, 230v, c/w male TC-372 coupler, Assembly

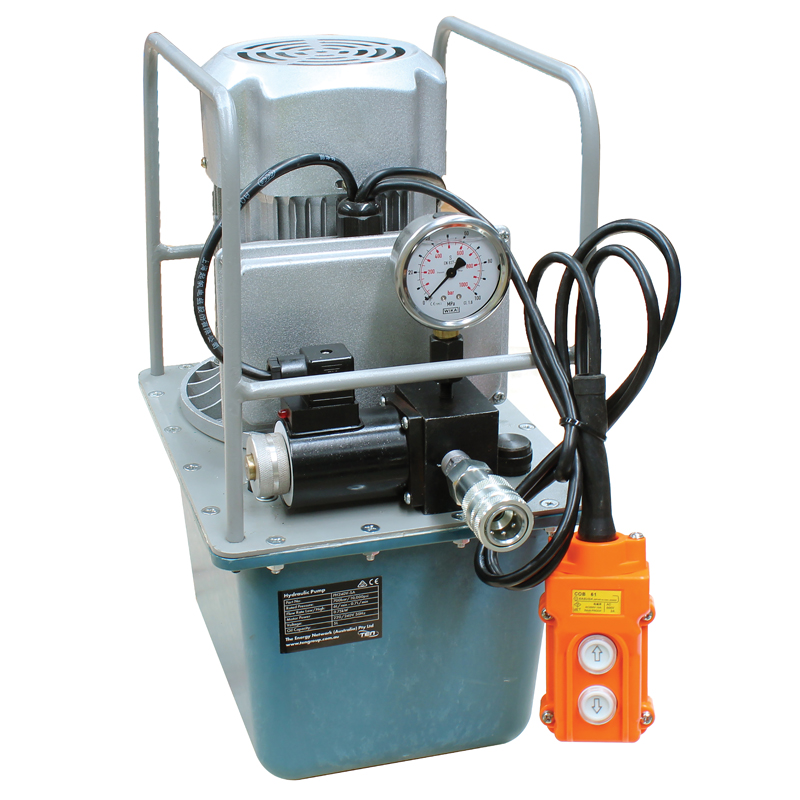

Electric High Pressure Single Acting Hydraulic Pump

Part No. HP240-SA-A

    High pressure electric hydraulic pump gives the operator portability and complete control

  • Simple push button control
  • 700Bar/10,000psi

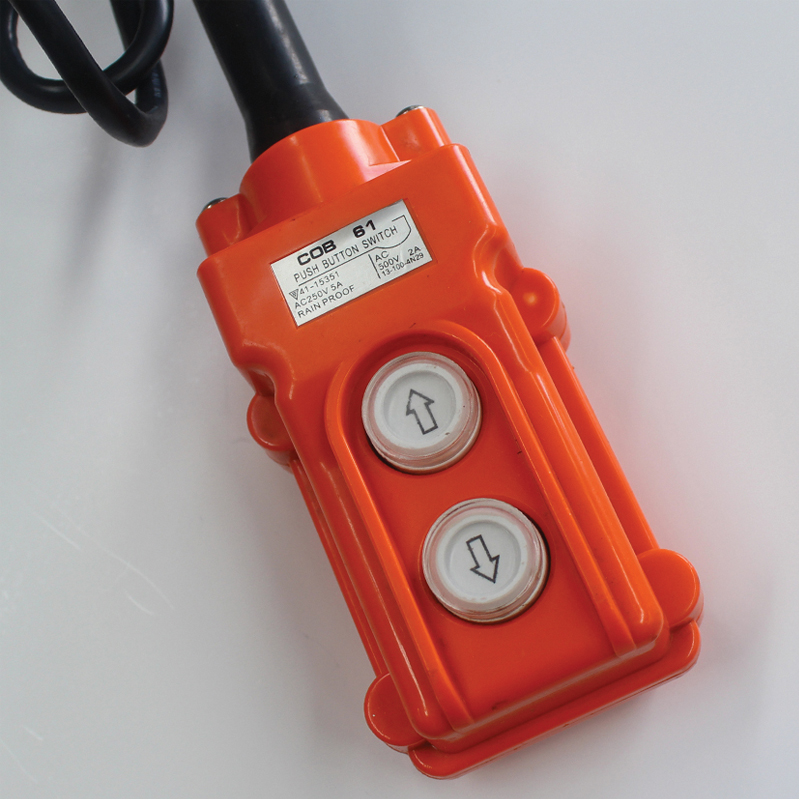

  • Corded pendant remote
  • Single phase (230V)

Part No. PH240V-SA-A
Engine Single phase electric - 230V - 50Hz
Motor Power 0.75kW
Maximum Pressure 700Bar (10,000psi)
Flow Rate - Low Pressure 6 litre/min
Flow Rate - High Pressure 0.7 litre/min
Oil tank capacity 5 litre
Weight Approx. 28kg (incl. oil)
Dimensions 315mm (L) x 255mm (W) x 460mm (H)
