Winch, battery, 13.37kN 1363kg, 762mm ext, conduit adaptors, iToolco


Code: CM3K
Brand: iToolco
Product Details
Winch, battery, 13.37kN 1363kg, 762mm ext, conduit adaptors, iToolco

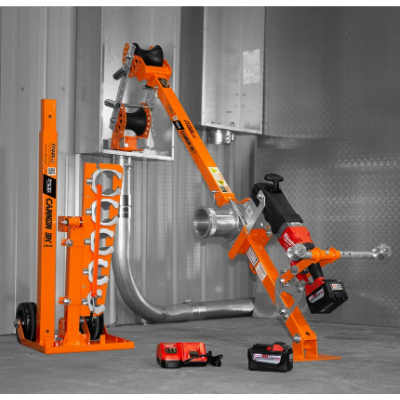

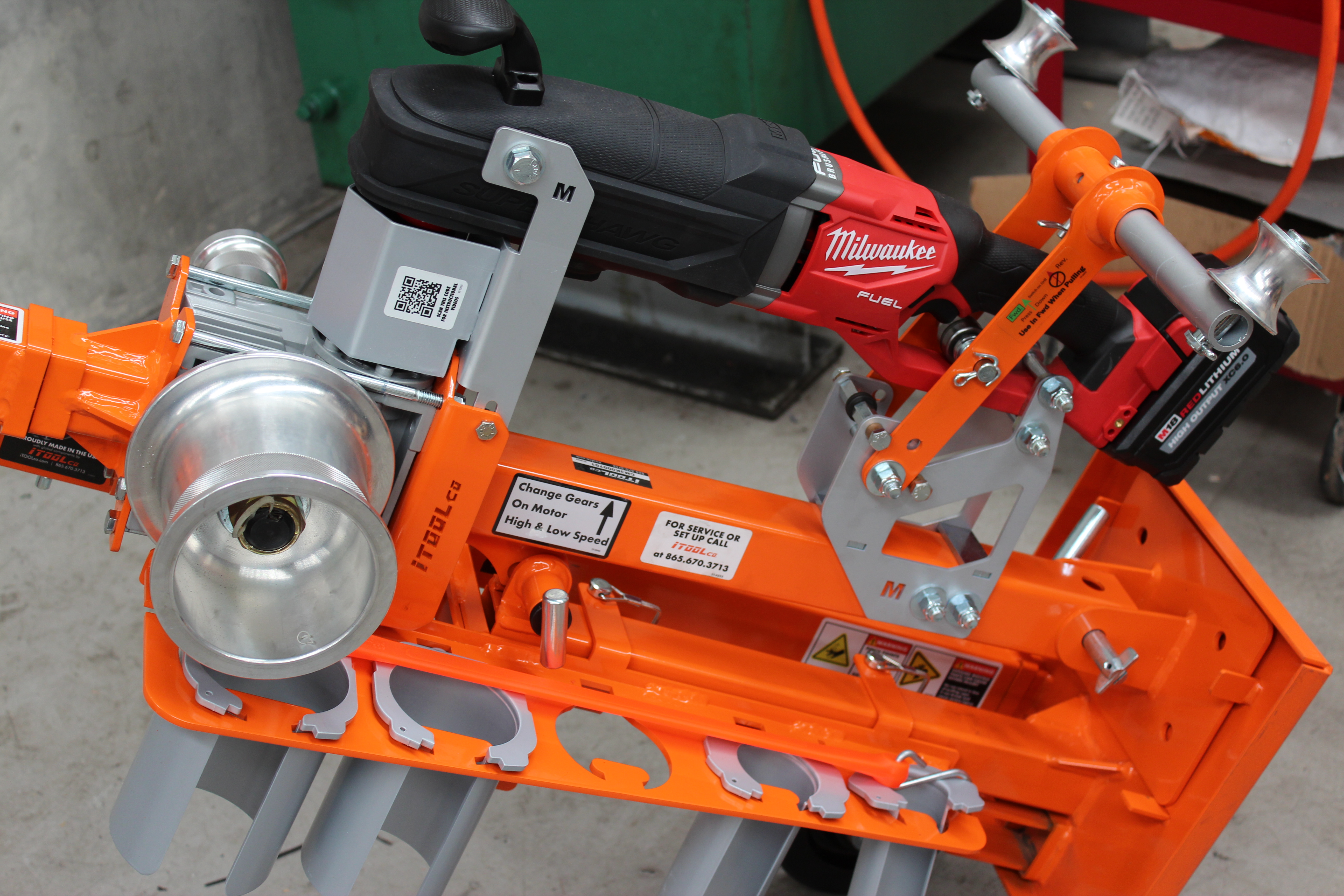

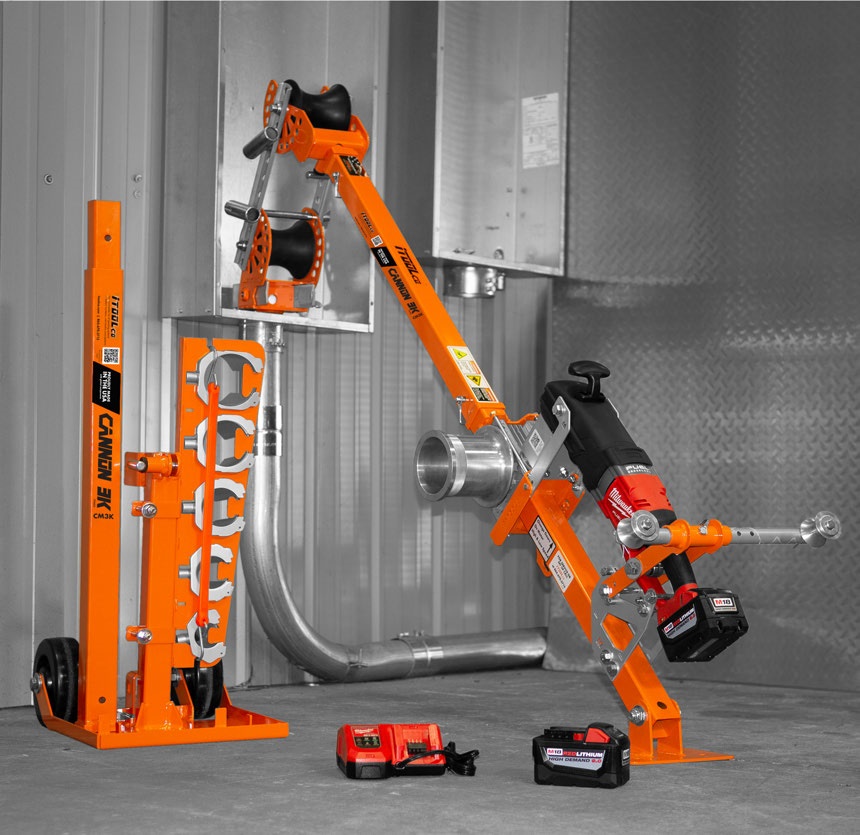

    iToolco Battery Capstan Winch

    Speed, Versatility, and Performance are all yours with iToolco’s Battery Capstan Winch.

    This portable 1363kg/13.37kN puller is intuitively designed to handle all of your day-to-day conductor pulls.

    The built-in capstan switch automatically turns the puller on and off.

    Simply tug on the rope to start the pull and back off to shut it down.

    Delivers dynamic performance in remote locations or areas where power is not yet available.

    Features

    • Pulling from remote locations no longer a challenge

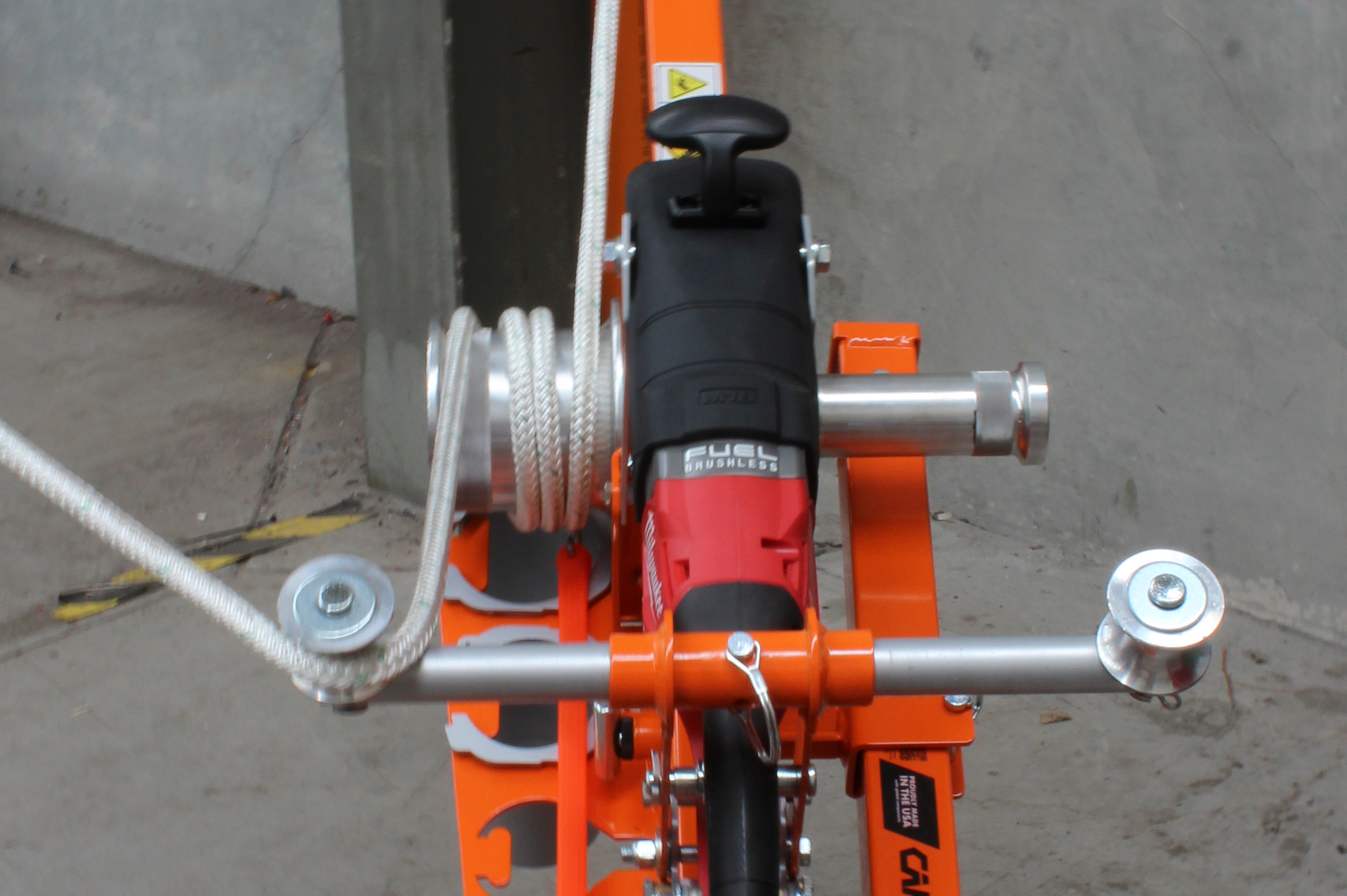

    • Built-In Rope Engagement Capstan Switch
    • Wide angle Dual Head Adjustment
    • Ready for immediate use on site
    • Quickly mobilised and placed in working position
    • Pulling from remote locations
    • 5 Conduit adaptors with built-in carry rack
    • Powered by M18 Milwaukee 18V 6.0Ah batteries
    Performance
    Pull Speed - Large Capstan5.5m and 15m per min on 1360kg/13.37kN
    Pull Speed - Small Capstan12.0m and 33m per min on 680kg/6.67kN small Capstan
    Max pulling Capacity1360kg
    Pull at max speed680kg
    Powered by MilwaukeeM18 drive unit
    BatteryMilwaukee M18 - 18V 6.0Ah

    Part No Ordering Information Dimensions Collapsed Dimensions Extended Weight
    CM3K Winch, Conduit Adaptors and Rack, Motor 2121mm (H) x 914mm (W) x 686mm (L) Extends up to 3.0m 62.3 kg
    CM3K-K Winch, Conduit Adaptors and Rack, Motor, 2 x Batteries, Charger 2121mm (H) x 914mm (W) x 686mm (L) Extends up to 3.0m 62.3 kg
