Tester, hot stick, 75kV/ft wet 100kv/ft dry, battery, USB charge port, Hastings

Tester, hot stick, 75kV/ft wet 100kv/ft dry, battery, USB charge port, Hastings


Code: 7707
Brand: Hastings Fiberglass Products
Product Details
Tester, hot stick, 75kV/ft wet 100kv/ft dry, battery, USB charge port, Hastings

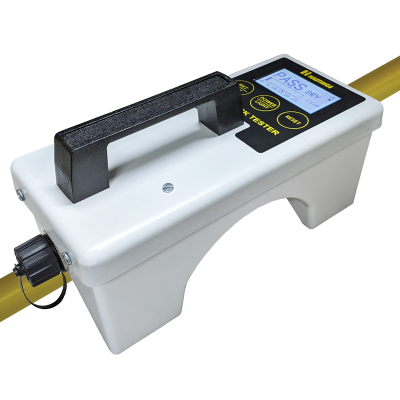

Hastings Battery Powered Hot Stick Tester

Test fibreglass sticks on site when there is no power present.

Utilising a 2,500 volt output, the meter is calibrated to indicate the leakage values that would be present if 75KV were applied to a 300mm section of the fibreglass for the wet test and 100KV per foot for the dry test

  • Push Button switch for wet or dry tests and a dual range scale which gives the operator leakage current values in micro amps
  • Portable and lightweight for ease of use
  • Meets OHSA 1910.269
  • The tester is designed to protect the operator while in use
  • Bright Digital Display with easy to read PASS/FAIL
  • The tester comes complete with a padded carrying case and instructions
  • A test bar is also provided to ensure the tester is working properly
  • Battery or USB operation

Part No. Operating Temperature Battery Life Charging Time Dimensions (mm) Weight (kg)
7707 0-40degC 6 hours 1.5 hours 195 x 100 x 94 2.4

3m USB Charging Cord Part No. Replacement Test Bar Part No.
A30431 A30212
