Sock, cable, single, soft eye, 25-32mm, breaking load 113kN, 1470mm L, gal steel, Slingco

Sock, cable, single, soft eye, 25-32mm, breaking load 113kN, 1470mm L, gal steel, Slingco


Code: ZCS1713
Brand: Slingco
Product Details
Sock, cable, single, soft eye, 25-32mm, breaking load 113kN, 1470mm L, gal steel, Slingco


Cable Pulling Grips - Slingco

For the installation of overhead conductors and cable in conduits, ducts and trenches

Slingco, a world-leading manufacturer & supplier of cable grips.

Founded more than 40 years ago, Slingco remains a family-owned business but has evolved into an expert design and manufacturing operation, producing high quality cable grips, assemblies and more

Slingco operates out of regional bases in the UK and USA, supplying products around the world, making heavy-duty cable and conductor installation a whole lot easier.

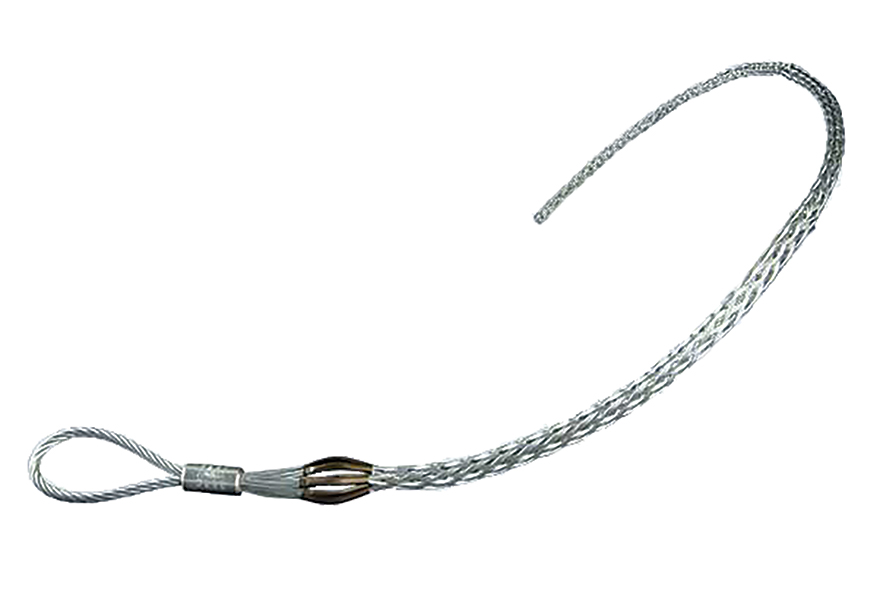

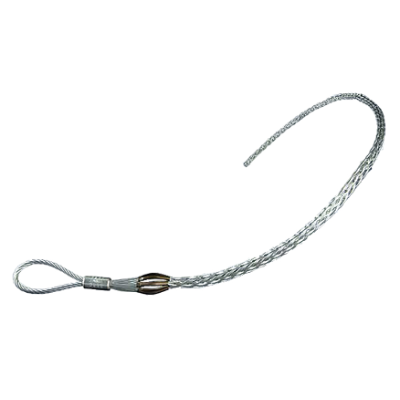

MU TYPE - HIGH STRENGTH CABLE GRIP

KEY FEATURES

  • Heavy Duty multi-weave construction
  • Used for heavy duty pulling
  • Suitable for Bare Steel, AMOKABEL, AL and CU Conductors
  • Colour coded for easy identification

The MU Type grip’s triple-weave construction is ideal for heavy loads.
Cable grips are color coded for ease of identification
Hand-Woven with quality Galvanized Steel.
Perfect for stringing overhead transmission and distribution lines and heavy load pulls of any kind and ideal for new or old conductors
The flexible eye connects with line pulling swivels for trouble free pulling applications.

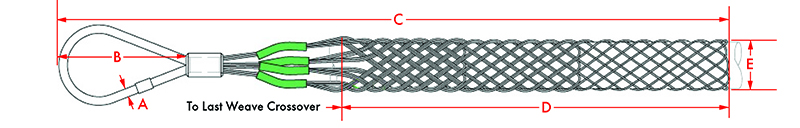

GRIP SPECIFICATION

Part No.Colour CodeConductor RangeAMOKABELA (mm)B (mm)C (mm)D (mm)Breaking Load kg/kN
ZCS1710Green6-12CCSX2571029657203,170 / 31.09
ZCS1711Brown12-19CCSX6281271,2639784,760 / 46.68
ZCS1712Blue19-25CCSX15991561,5371,1626,395 / 62.71
ZCS1713Yellow25-32-131651,9091,47011,340 / 111.21
ZCS1714Black32-38-131651,7251,29114,060 / 137.88


Important Note:
Ensure fitting instructions are followed and always apply the recomended Steel Band for maximum grip of the conductor
