Cable Stripper–Battery Tool Operated–3/8” square drill adapter. Suits Aust. LV ABC & UG Cables-Ripley

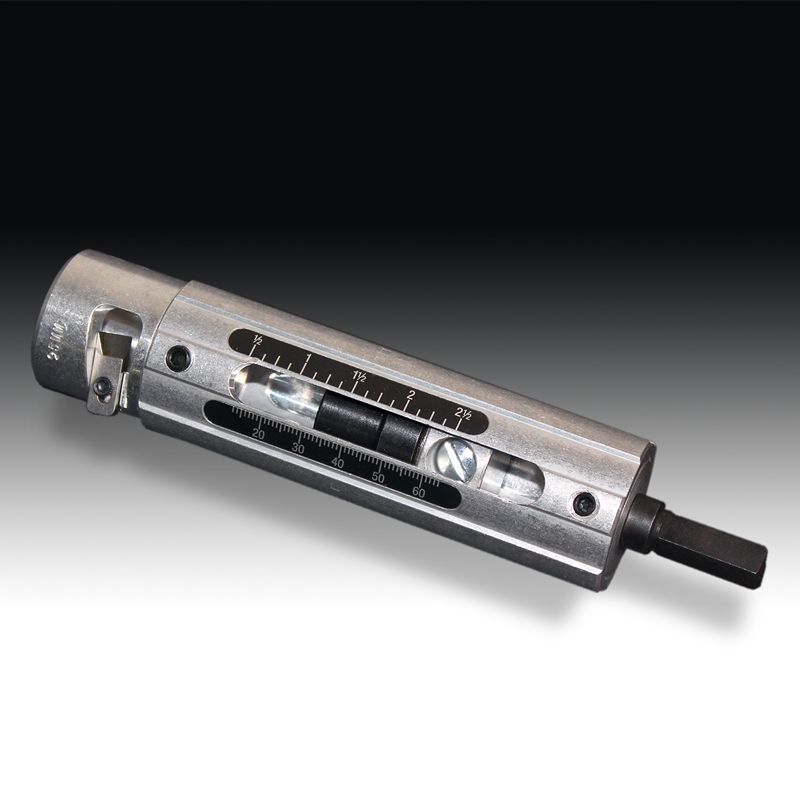

Power Driven Cable End Stripper

Part No: WS68-3-8

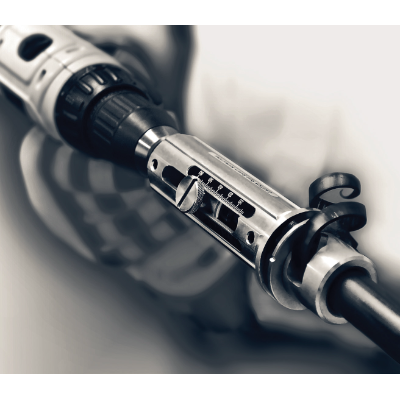

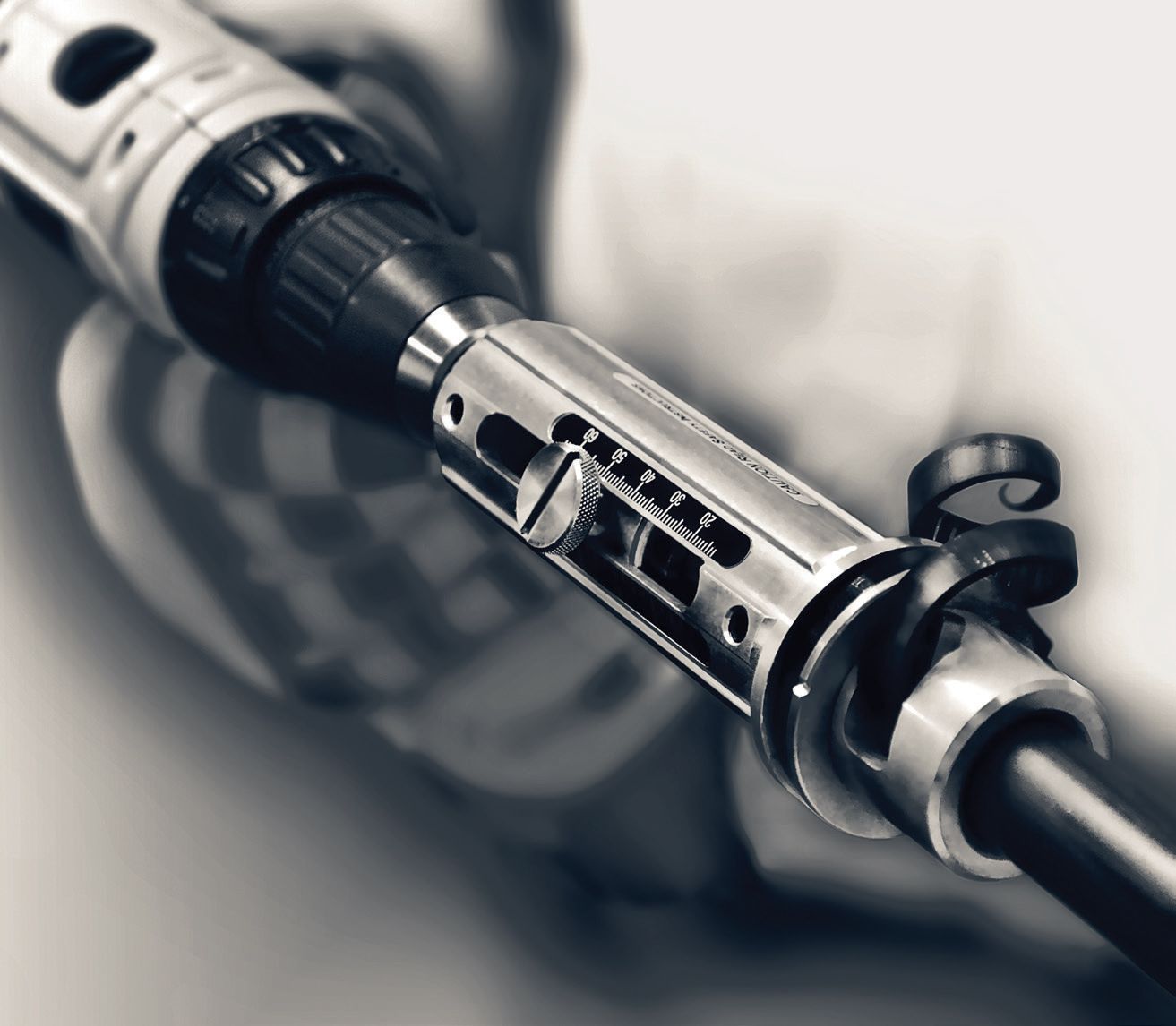

The Utility Tool LV Cable Strippers are a fast, safe and economical stripping tool with interchangeable square cut bushings for a wide range of common Australian LV cables. Easily setup with your chosen bushing, the tool can be quickly attached to your cordless driver for effortless cable stripping.

Benefits

• Increases safety by eliminating use of traditional knives, reducing the risk of cuts or lacerations.
• Easily attaches to power drill for safe and efficient cable stripping.
• Adjustable strip lengths from 15.9mm to 63.6mm.
• Increases splice and union reliability with accurate strips every time.
• Use with bushings specifically designed to suit 16-150mm2 Australian conductor.
• For Low Voltage Applications
• Evenly Strips Insulation.

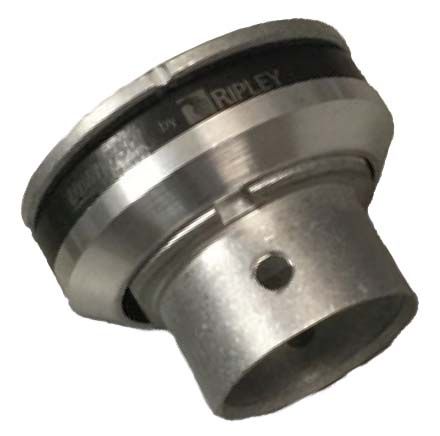

• The optional WS 68 Snap’s patent-pending Quick Connect Adapter makes changing bushings faster and more efficient - even with gloves on!

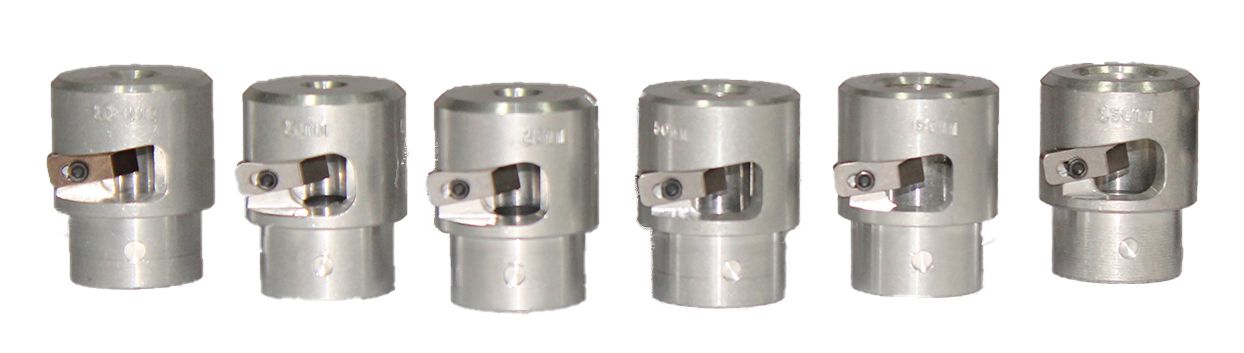

TEN Square Cut Cable Stripper Bushings

Large range of bushings suit common Australian cable sizes

Quick and simple bushing interchange for fast cable stripping

Bushings Suit the following Stripping Tools

• Milwaukee - M18™ Battery Cable Stripper - Part No. M18BCS-0C
• Ripley - Power Driven Stripper - Part No. WS68-3-8
• Ripley - Power Driven Stripper - Part No. WS68-1-4
• Ripley - 4 x 4 Stripper - Part No. 36001H
• Ripley - 2 x 2 Stripper - Part No. 36101H

Range of available bushings

TEN Part No.	Square Cut Bushings to suit LV ABC
RB-100	10mm² Al XLPE OH
RB-101	16mm² Al XLPE OH
RB-200	25mm² Al XLPE OH
RB-201	35mm² Al XLPE OH
RB-300	50mm² Al XLPE OH
RB-301	70mm² Al XLPE OH
RB-400	95mm² Al XLPE OH
RB-401	120mm² Al XLPE OH
RB-500	150mm² Al XLPE OH
TEN Part No.	Square Cut Bushings to suit Underground
RB-102	16mm² Cu XLPE/PVC LV UG (Olex)
RB-202	35mm² Cu XLPE/PVC LV UG (Olex)
RB-302	50mm² Cu XLPE/PVC LV UG (Olex)
TEN Part No.	Square Cut Bushings to suit Building Cable
RB-103	16mm² Cu PVC SDI V90 - Red (Olex)
RB-103	16mm² Cu PVC SDI V90 - Black (Olex)
RB-303	70mm² 19/2.14 Cu Green/Yellow Earth building wire
RB-600	240mm² Cu Double Insulated
TEN Part No.	Square Cut Bushings to suit PVC
RB-304	50mm² Cu PVC 0.6/1kV - Black on White (Olex)
RB-305	70mm² Cu PVC 0.6/1kV - Black on Clear (Olex)
RB-305	70mm² Cu PVC 0.6/1kV - Black-White on Clear (Olex)
TEN Part No.	Square Cut Bushings to suit Misc Cable
RB-306	70mm² Cu XLPE / PVC, Black on White (Olex)
RB-402	120mm² Cu XLPE / PVC, Black on Clear (Olex)
RB-501	150mm² Cu, Black-White on Clear (Olex)
RB-502	185mm² Cu, Black-White on Clear (Olex)
RB-502	185mm² Cu, Black (Prysmian)
RB-501	150mm² Al, Black (Olex)
RB-601	240mm² Al XLPE / PVC, Black on Colour (Olex)
RB-700	157mm² HD Al, Railway, 12 x 3.27 0.6/1KV V-90 L Electric Cable (Prysmian)
CB6667	Bushing spare blade
TEN Part No.	Ripley Stripper Bodies & Accessories
WS68-3-8	RIPLEY Power/Drill Driven Stripper
36001H	RIPLEY 4 x 4 Stripper
36101H	RIPLEY 2 x 2 Stripper
40110	RIPLEY Bushing quick connect for above strippers
