Stripper, chamfer tool for insulation, 45deg, 14 - 60mm OD, Ripley

Ten Group // HAND TOOLS // Cable Preparation and Stripping // Cable Strippers // Stripper, chamfer tool for insulation, 45deg, 14 - 60mm OD, Ripley
Stripper, chamfer tool for insulation, 45deg, 14 - 60mm OD, Ripley


Code: US10-7001
Brand: Ripley Tools
Product Details
Stripper, chamfer tool for insulation, 45deg, 14 - 60mm OD, Ripley

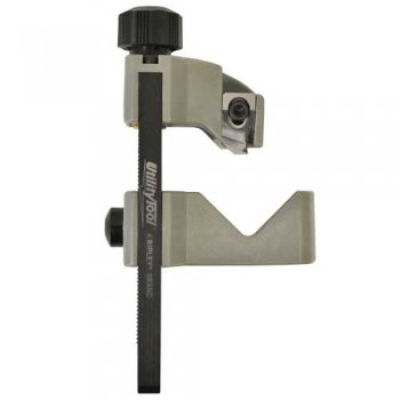

Chamfer Tool - Insulation - RIPLEY

Part No. US10 Series

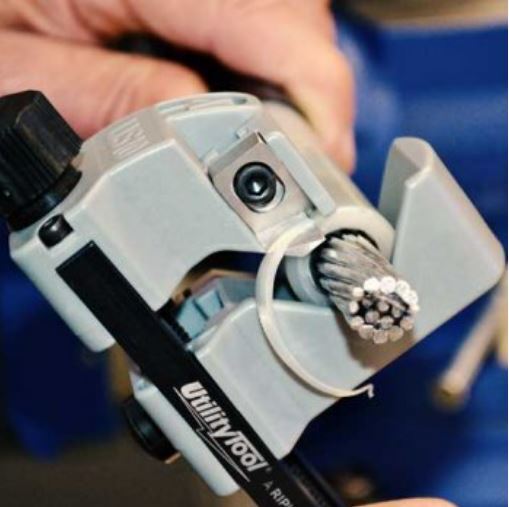

Insulation Chamfering Tool utilizes a size adjustment clamping system to quickly and easily adjust and lock onto the insulation.

Features

  • Perform either a 30 Deg (7000) or 45 Deg (7001) angle bevel with a factory-set chamfer depth of 1.9 mm
  • Adjustable from 0 mm to 3.81mm
  • Equipped with safe, recessed blade to prevent potential injury & blade damage
  • Spare blades also available.
Part No.Tool Type/ApplicationCable Insulation Capacity (mm)Replacement Blade
US10-700030 Deg Bevel Edger14 - 60US10-7500
US10-700145 Deg Bevel Edger14 - 60US10-7501
