Test leads, set, crocodile clips and probes, 3 leads, CAT IV 600V 10A


Code: TL30
Brand: Unspecified
Product Details
Test leads, set, crocodile clips and probes, 3 leads, CAT IV 600V 10A

3 Test Leads Set Cat IV 600V

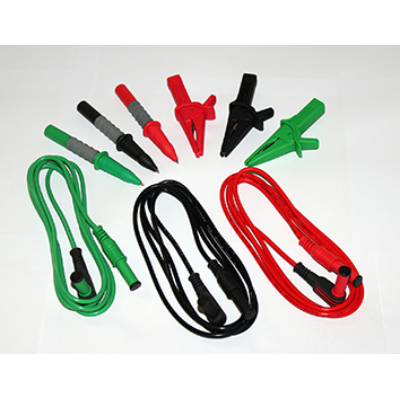

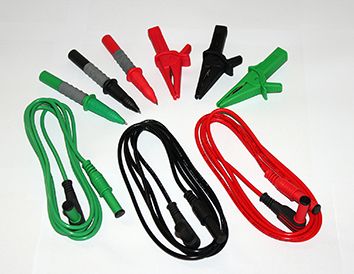

The TL-30 Replacement Test Leads Set has Red, Black and Green Probes and Crocodile Clips.

Rated to safety standard Cat IV 600V 10A. Test leads for meters and testers are highly susceptible to poor contact and damage.

The patented screw end offsets the bending oppression, which makes it highly durable and long lasting.

Fits most Test Equipment with 4mm Sockets.

Specification

  • Wire: PVC UL 1803 / 18AWG.
  • Length: 1100mm ±30mm
  • Out diameter: 3.50mm
  • Temperature tolerance range: -40ºC to 105ºC
  • Braid copper wires: 64/0.12mm
  • Terminal: Right angle 4mm brass (nickel plated) banana plug with caged and insulated sheathing to avoid the brass oxidation.
  • Rating: EN 61010-031:2002+A1:2008 - CAT III 1000V 10A / CAT IV 600V 10A
