Bushing, suit PSC-1, for ACSR conductor,18.83mm

Ten Group // HAND TOOLS // Cable Preparation and Stripping // Cable Strippers // Bushing, suit PSC-1, for ACSR conductor,18.83mm
Bushing, suit PSC-1, for ACSR conductor,18.83mm


Code: TE5770
Brand: TEN
Product Details

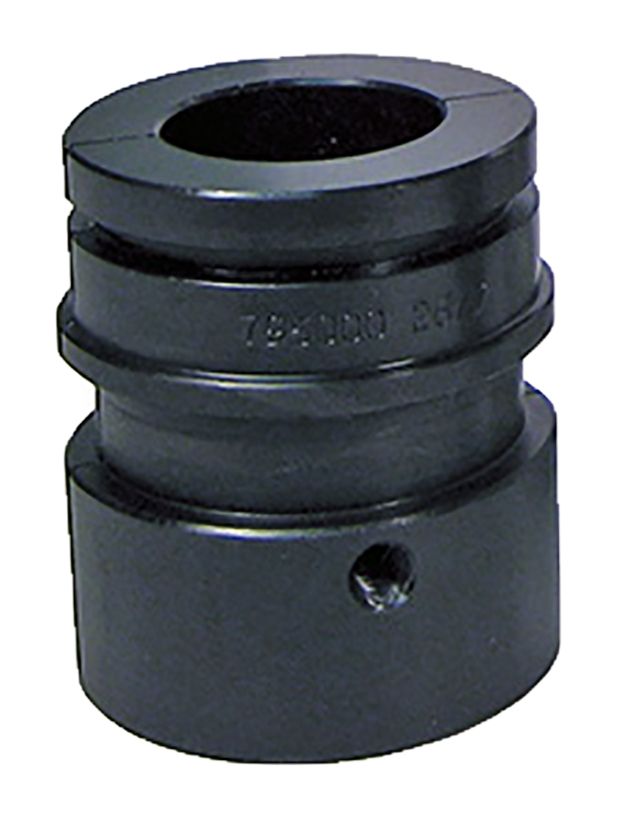

Bushing, suit PSC-1, for ACSR conductor,18.83mm

Bushing for Aluminium Trimmer - Pre-Crimping ACSR

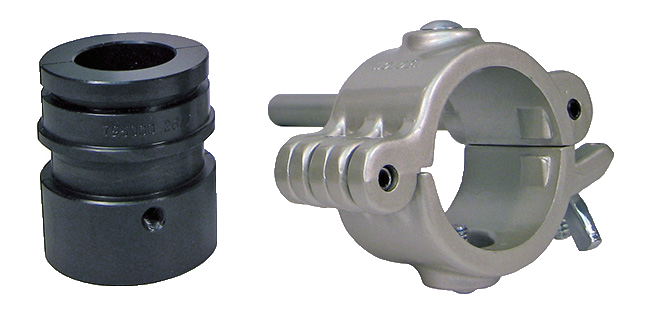

Bushing to suit PSC-1 Trimmer

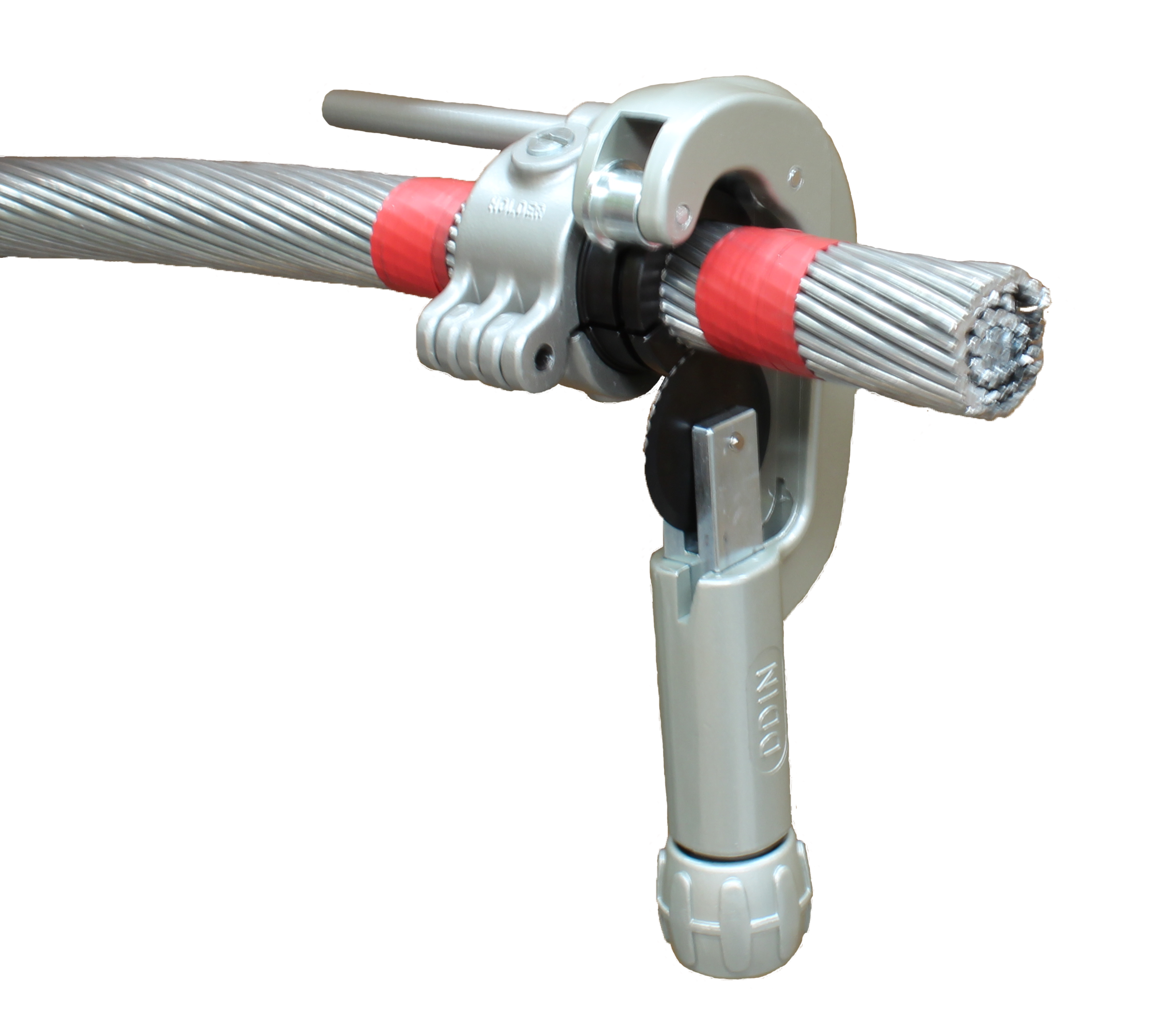

Attaches to trimming to guide the cutter to trim and remove the outside layers of Aluminium, exposing the ACSR for crimping.

Available Bushing Sizes to suit Australian ACSR conductor sizes

Part No. ACSR ConductorConductor ODmm
TE7016CHERRY14.3
TE7021GRAPE17.5
TE6375LEMON21.0
TE5778LYCHEE22.8
TE5782LIME24.5
TE5797MANGO27.0
TE5803ORANGE29.5
TE5809OLIVE31.5
