Mandrel, duct proving, HDPE, 28mm OD, 60mmL, SPP


Code: SPP-PM-28
Brand: Scott Power Products
Product Details
Mandrel, duct proving, HDPE, 28mm OD, 60mmL, SPP

Conduit Proving Mandrels – Stainless Steel Fittings

SPP-PM-Series

Used for testing circular integrity of Conduit before hauling or pulling underground cable

 Features

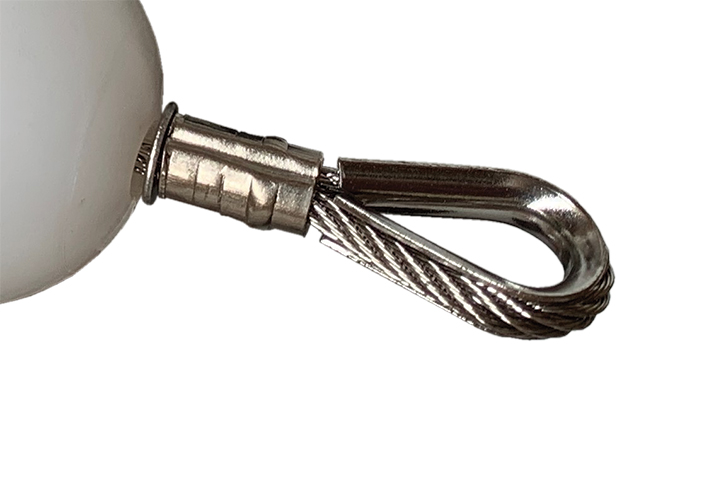

  • Manufactured standard with Stainless-Steel Wire Rope & Thimbles and Stainless-Steel Eye Nuts and Rod attachments to secure ropes for cable hauling
  • Tests electrical and communications conduits
  • Ideal for testing NBN & Telstra ducts or conduits
  • Made from high-density polyethylene material for long life and lubricity

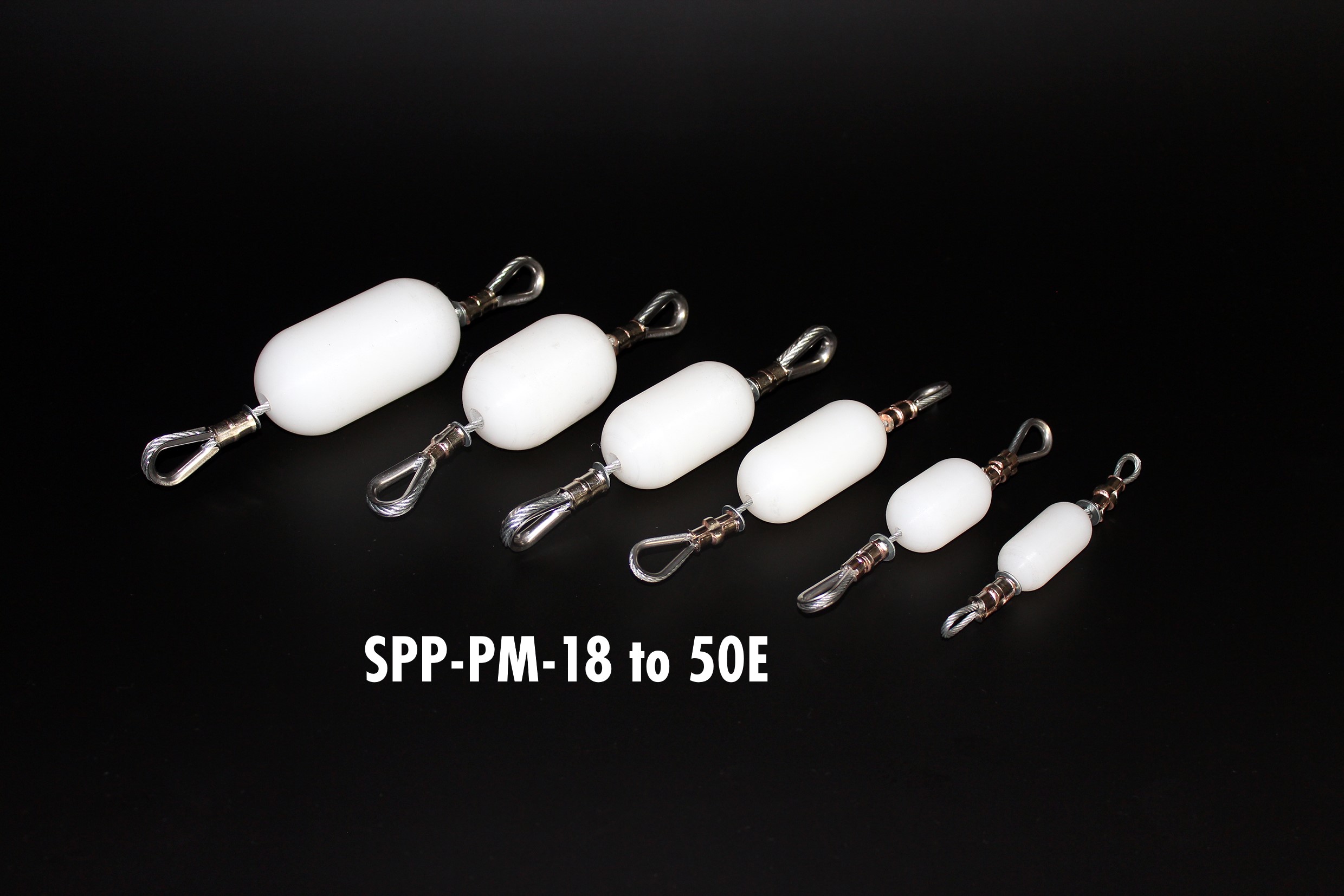

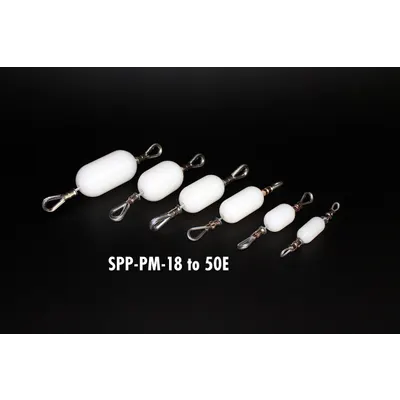

Part # Conduit Size (mm) Conduit Type Mandrel Length (mm) Mandrel Diameter (mm) Overall Length (mm) Weight Eye Fittings
SPP-PM-18   Telco 40 18 115 0.05 2mm Stainless Wire & Thimble
SPP-PM-24   Telco 40 24 115 0.05 2mm Stainless Wire & Thimble
SPP-PM-28   Telco 60 28 160 0.05 3.2mm Stainless Wire & Thimble
SPP-PM-32   Telco 60 32 180 0.05 3.2mm Stainless Wire & Thimble
SPP-PM-38   Telco 60 38 180 0.07 3.2mm Stainless Wire & Thimble
SPP-PM-50T 50mm Telco 80 47 145 0.15 6mm Stainless Eye-Nut
SPP-PM-63T 63mm Telco 100 60 180 0.3 8mm Stainless Eye-Nut

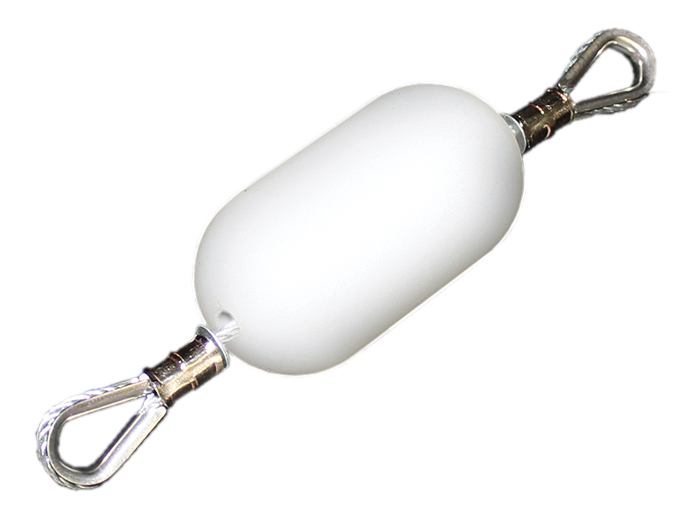

SPP-PM-50E 50mm Electrical 80 40 200 0.1 3.2mm Stainless Wire & Thimble
SPP-PM-63E 63mm Electrical 100 52 180 0.25 8mm Stainless Eye-Nut
SPP-PM-080 80mm Electrical 180 74 260 0.75 8mm Stainless Eye-Nut
SPP-PM-100 100mm Electrical 180 90 275 1.1 10mm Stainless Eye-Nut
SPP-PM-125 125mm Electrical 245 113 340 2.2 10mm Stainless Eye-Nut
SPP-PM-150 150mm Electrical 245 130 340 2.85 10mm Stainless Eye-Nut
SPP-PM-200 200mm Electrical 280 184 375 5.8 10mm Stainless Eye-Nut
