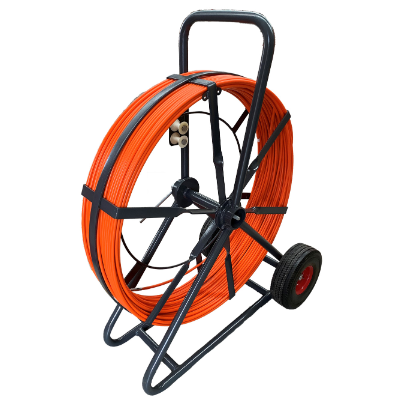

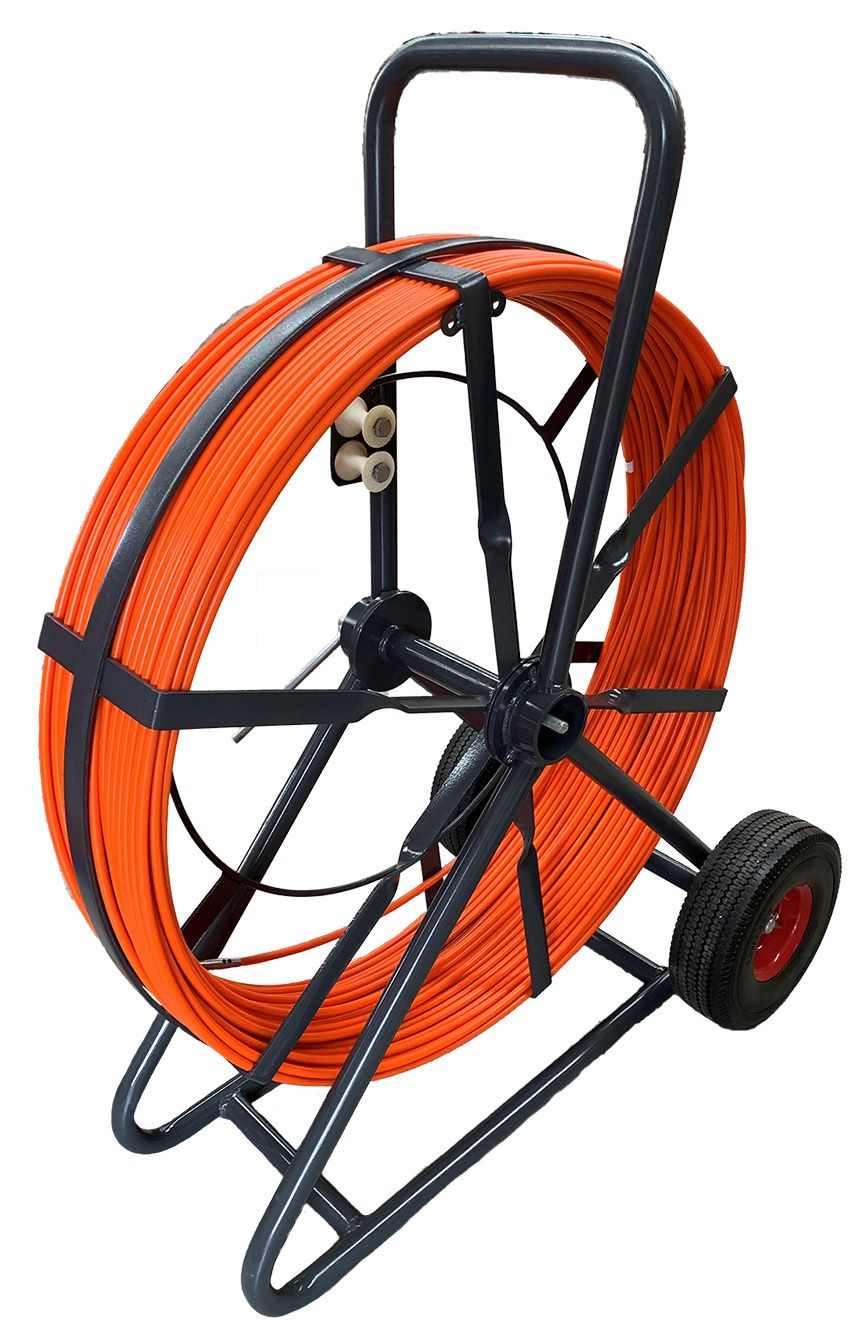

Duct snake, rodder, fibreglass powder-coated frame, 9mmOD x 100mL, trace & wheels, SPP

Ten Group // Cable Pulling and Hauling Equipment // Underground Rodding & Blowing // Duct Snakes // Duct snake, rodder, fibreglass powder-coated frame, 9mmOD x 100mL, trace & wheels, SPP
Duct snake, rodder, fibreglass powder-coated frame, 9mmOD x 100mL, trace & wheels, SPP


Code: SPP-DR9-100
Brand: Scott Power Products
Product Details
Duct snake, rodder, fibreglass powder-coated frame, 9mmOD x 100mL, trace & wheels, SPP

SPP Duct Rodder SPP-DR9-100



Features

  • Quality Fibreglass rod coated with abrasion resistant UV stable polymer
  • All sizes supplied standard with an internal copper wire for traceability
  • Supplied with Stainless Steel End Fitting and Removable Pulling Eyes for 6, 9 and 11mm
  • Brass End Fitting and Removable Pulling Eyes for 4.5mm
  • 9 and 11mm Reels are Powder-coated and fitted with a Drag Brake and Wheels
  • 4.5 and 6mm Reels are Galvanised
  • All Rodders include a Jointing/Repair Kit in pouch attached to the Reel (details below)
  • Full range of Accessories available
Rodder Part NoRod OD (mm)Rod Length (m)Replacement Rod Part No.Jointing Kit Part No.Jointing Kit Components
SPP-DR4.5-60 4.5mm 60m SPP-DR-ROD4.5-* SPP-DR-JK4.5 1 x Joiner
1 x Rod End
1 x Pulling Eye
2 x Allen Keys - 6, 9, 11mm Rod
1 x Glue
1 x Rubber Rod Grip
SPP-DR6-60 6mm 60m SPP-DR-ROD6-* SPP-DR-JK6
SPP-DR6-100 6mm 100m SPP-DR-ROD6-* SPP-DR-JK6
SPP-DR9-100 9mm 100m SPP-DR-ROD9-* SPP-DR-JK9
SPP-DR9-200 9mm 200m SPP-DR-ROD9-* SPP-DR-JK9
SPP-DR11-200 11mm 200m SPP-DR-ROD11-* SPP-DR-JK11
SPP-DR11-300 11mm 300m SPP-DR-ROD11-* SPP-DR-JK11

*Nominate length of rod required - supplied with rod ends



SPP Duct Rodders Accessories

 Rod GripRod EndPulling EyeSwivel Rod EndRod JoinerFlexible GuideRoller Guide
Part No.SPP-DR-RGSPP-DR-RE-*SPP-DR-PE-*SPP-DR-SRE-*SPP-DR-RJ-*SPP-DR-FG-*SPP-DR-RG-*
Note - - - Not available in 4.5mm - - -

*Nominate rod size
