Bellmouth, feeding sheave, suit 80mm conduit, SPP


Code: SPP-BM-080
Brand: Scott Power Products
Product Details

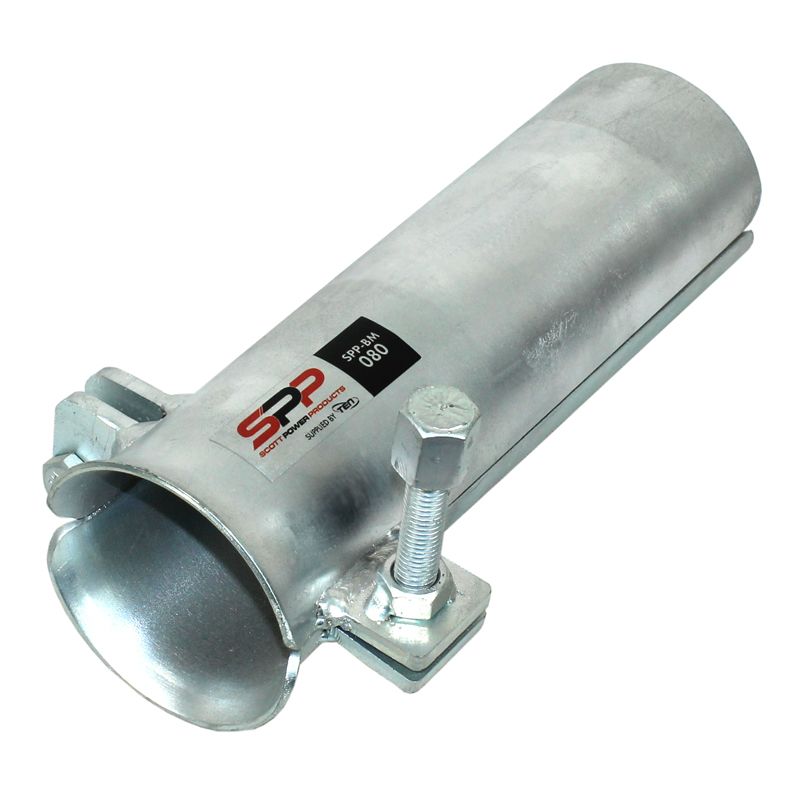

Bellmouth, feeding sheave, suit 80mm conduit, SPP

SPP Bell-Mouth Cable Feeding - Lockable

Part No. SPP-BM-080

Part No Neck OD Suits Conduit Nminal Diameter Split Feature Dimensions Wt (kg)
SPP-BM-080 74mm 80mm Hinged Length: 250mm Width: 130mm Height: 140mm 1.6kg

Features

  • Made from Zinc Plated Steel
  • Split design allows easy removal after cable installation
  • Designed for cable entry applications
  • Allows multi-direction entry into the conduit
Part No Neck OD Suits Conduit Nminal Diameter Split Feature Dimensions Wt (kg)
SPP-BM-050E 42mm 50mm Electrical Dual Wingnut Length: 255mm Width: 120mm Height: 115mm 1.1kg
SPP-BM-050T 48mm 50mm Telco Dual Wingnut Length: 255mm Width: 130mm Height: 115mm 1.3kg
SPP-BM-063E 48mm 63mm Electrical Dual Wingnut Length: 255mm Width: 140mm Height: 115mm 1.3kg
SPP-BM-063T 60mm 63 Telcomm Hinged Length: 250mm Width: 117mm Height: 110mm 1.3kg
SPP-BM-080 74mm 80mm Hinged Length: 250mm Width: 130mm Height: 140mm 1.6kg
SPP-BM-100 98mm 100mm Hinged Length: 250mm Width: 177mm Height: 155mm 2.8kg
SPP-BM-125 118mm 125mm Hinged Length: 250mm Width: 200mm Height: 165mm 3.4kg
SPP-BM-150 138mm 150mm Hinged Length: 250mm Width: 220mm Height: 175mm 3.8kg
SPP-BM-200 190mm 200mm Hinged Length: 300mm Width: 297mm Height: 260mm 1.6kg
