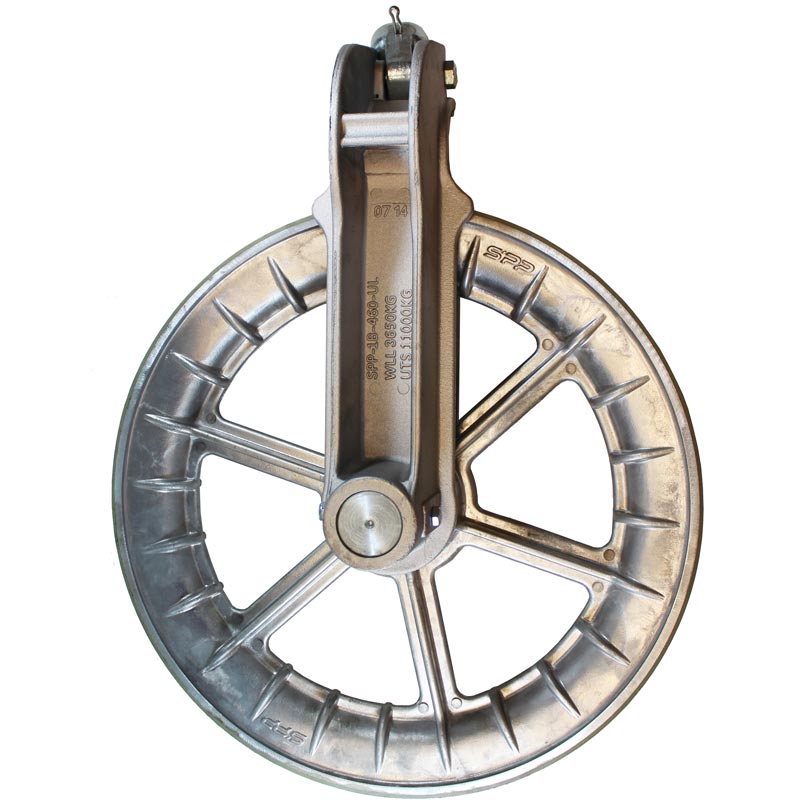

Single Stringing Roller, 460mm Urethane Lined, Spring Loaded Gate, SPP
Single Stringing Roller, 460mm
Urethane Lined, Spring Loaded
Gate, SPP
Code: SPP-1B-460-UL
Brand: Scott Power Products
Product Details
Roller, stringing, single, 460mm, spring gate, 3.6T WLL, urethane lined, SPP
Brand: Scott Power Products
Product Details
Roller, stringing, single, 460mm, spring gate, 3.6T WLL, urethane lined, SPP
- Extra large contoured throat for swivels, grips and splices
- Precision ground bearings reduce pulling loads for accurate sagging
- Secured pins
- Durable and fully corrosion protected
- Urethane lined
- Socket fitting standard
- Helicopter attachments available as optional extras - Part No. HELIHORN

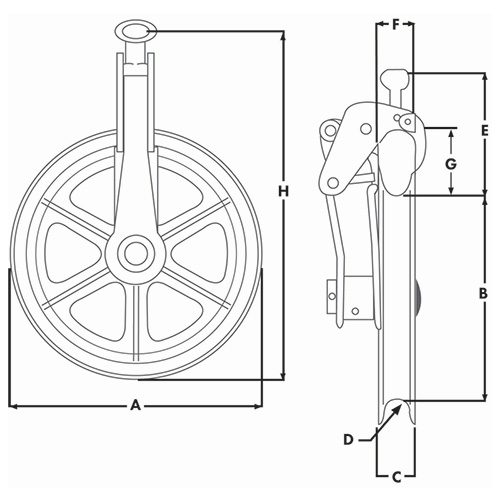

| Part # | A | B | C | D | E | F | G | H | Weight | WLL* |
|---|---|---|---|---|---|---|---|---|---|---|
| SPP-1B-355-UL | 420mm | 355mm | 60mm | 18.5mm | 240mm | 76mm | 145mm | 630mm | 11.8kg | 2700kg |
| SPP-1B-460-UL | 560mm | 460mm | 83mm | 20.3mm | 240mm | 83mm | 145mm | 750mm | 23kg | 3600kg |
| SPP-1B-610-UL | 710mm | 610mm | 88mm | 22.9mm | 240mm | 85mm | 145mm | 900mm | 31.5kg | 4330kg |
* Working Load Limit (WLL) based on 3:1 Ultimate Tensile Strength
