Roller, stringing, single, 355mm, spring gate, 2.7T WLL, urethane lined, SPP

Ten Group // Cable Pulling and Hauling Equipment // Cable Rollers // Overhead Transmission Rollers // Roller, stringing, single, 355mm, spring gate, 2.7T WLL, urethane lined, SPP
Roller, stringing, single, 355mm, spring gate, 2.7T WLL, urethane lined, SPP


Code: SPP-1B-355-UL
Brand: Scott Power Products
Product Details

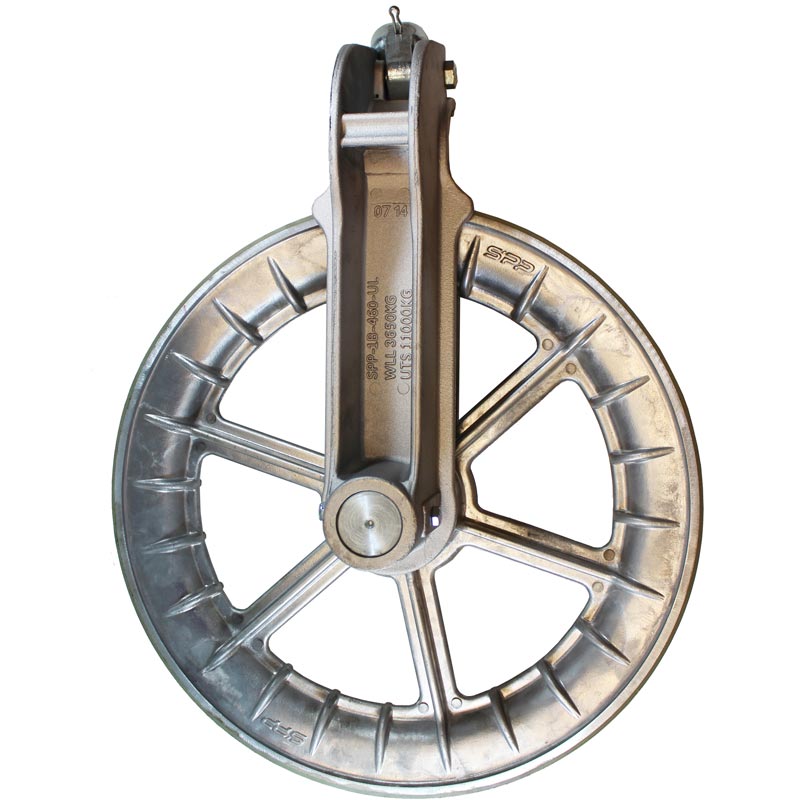

Roller, stringing, single, 355mm, spring gate, 2.7T WLL, urethane lined, SPP

  • Extra large contoured throat for swivels, grips and splices
  • Precision ground bearings reduce pulling loads for accurate sagging
  • Secured pins
  • Durable and fully corrosion protected
  • Urethane lined
  • Socket fitting standard
  • Helicopter attachments available as optional extras - Part No. HELIHORN

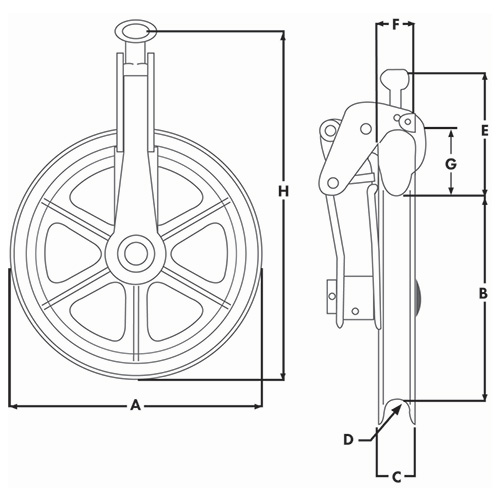

Part # A B C D E F G H Weight WLL*
SPP-1B-355-UL 420mm 355mm 60mm 18.5mm 240mm 76mm 145mm 630mm 11.8kg 2700kg
SPP-1B-460-UL 560mm 460mm 83mm 20.3mm 240mm 83mm 145mm 750mm 23kg 3600kg
SPP-1B-610-UL 710mm 610mm 88mm 22.9mm 240mm 85mm 145mm 900mm 31.5kg 4330kg

* Working Load Limit (WLL) based on 3:1 Ultimate Tensile Strength
