Roller, universal, 110mmD, SWL 1130kg, 51mmD max, Al sheave, T12 Safety Hook, SPP


Code: SPP-1A-T12
Brand: Scott Power Products
Product Details
Roller, universal, 110mmD, SWL 1130kg, 51mmD max, Al sheave, T12 Safety Hook, SPP

Kit Components

This item contains the following components:

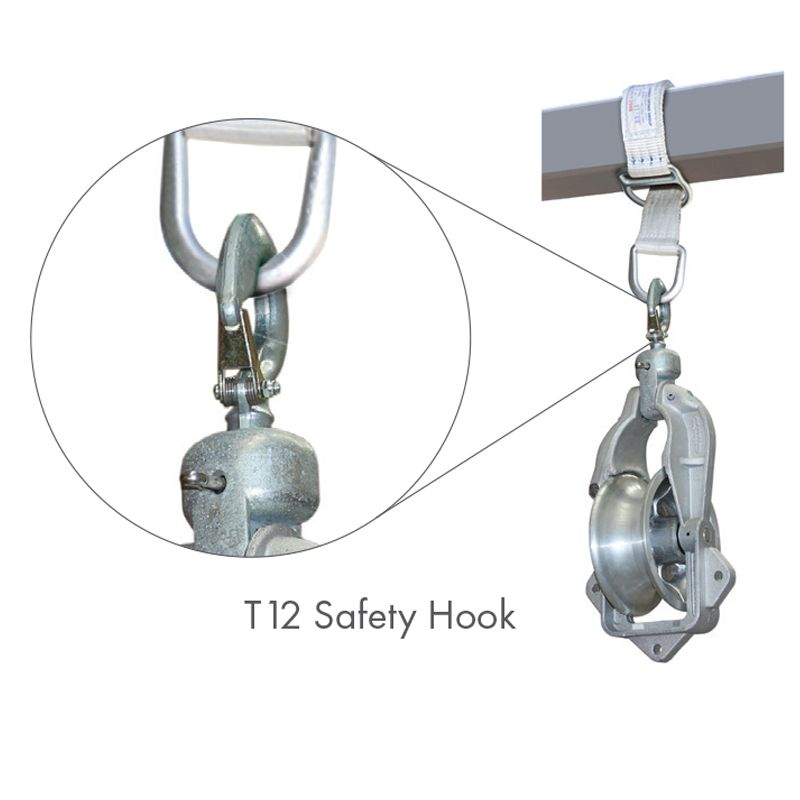

SPP Universal Stringing Roller with Safety Hook - Part No. SPP-1A-T12

Features

  • Suitable for distribution and ABC
  • Aluminium sheave
  • Lightweight high strength heat treated aluminium
  • Versatile attachment fittings include side and bottom tags and top ball socket fitting
  • Side gate latch can be locked open
  • Sheave is profile machined permitting precise sagging of conductor
  • High quality permanently lubricated high temperature precision bearings
Part No Sheave Material WLL Weight Maximum Conductor OD Bottom of Groove Dia. Overall Height Overall Width
SPP-1A Aluminium 1130kg 4kg 50mm 110mm 370mm 205mm
Part No Description WLL Weight
T12 Safety Hook 70kN 0.55kg
