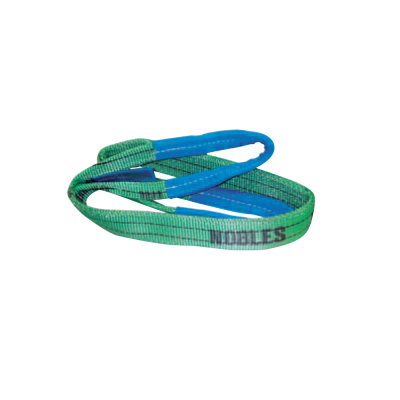

Sling, flat, green, 2T, 2m, AS1353
Sling, flat, green, 2T, 2m, AS1353
Code: SLF2-2
Brand: Unspecified
Product Details
Sling, flat, green, 2T, 2m, AS1353
Brand: Unspecified
Product Details
Sling, flat, green, 2T, 2m, AS1353
The NOBL-O-TECH “high twisted yarn polyurethane impregnated” cover also features a unique “raised rib” structure that provides superior abrasion resistance when compared to standard polyester round sling covers. The sling covers are colour coded and striped for simple recognition of the sling WLL.
- Round slings to AS4497
- Flat slings to AS1353
| Loading Factor | 1.0 | 0.8 | 2.0 | 1.7 | 1.4 | 1.0 | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Round Sling Part # | Standard lengths (m) | Flat Sling Part # | Standard lengths (m) | Sling Colour | Lift Mode | Vertical | Choke | Basket | 60° | 90° | 120° |
| SLR1 | 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5 & 6 | SLF1 | 1, 1.5, 2, 2.5, 3, 5 & 10 | Violet | WLL Tonnes → | 1 | 0.8 | 2 | 1.7 | 1.4 | 1 |
| SLR2 | 0.5, 0.75, 1, 1.5, 2, 2.5, 3, 4, 5 & 6 | SLF2 | 1, 1.5, 2, 2.5, 3, 5 & 10 | Green | WLL Tonnes → | 2 | 1.6 | 4 | 3.4 | 2.8 | 2 |
| SLR3 | 1, 1.5, 2, 2.5, 3, 4, 5 & 6 | SLF3 | 2, 3, 4, 5 & 6 | Yellow | WLL Tonnes → | 3 | 2.4 | 6 | 5.1 | 4.2 | 3 |
| SLR4 | 1, 1.5, 2, 3, 4, 5 & 6 | SLF4 | 3 & 4 | Grey | WLL Tonnes → | 4 | 3.2 | 8 | 6.9 | 5.6 | 4 |
| SLR5 | 2, 3, 4, 5 & 6 | SLF5 | 4 | Red | WLL Tonnes → | 5 | 4.0 | 10 | 8.6 | 7.0 | 5 |
| SLR6 | 2, 2.5, 3, 4, 5 & 6 | SLF6 | 3 | Brown | WLL Tonnes → | 6 | 4.8 | 12 | 10.3 | 8.4 | 6 |
| SLR8 | 2, 2.5, 3, 4 & 6 | SLF8 | 3 | Blue | WLL Tonnes → | 8 | 6.4 | 16 | 13.8 | 11.2 | 8 |
| SLR10 | 3, 4, 6, 8 & 10 | SLF8 | - | Orange | WLL Tonnes → | 10 | 8.0 | 20 | 17.3 | 14.1 | 10 |
