Assembly, locking dog, 6 hole, 5 1/4" bolt circle, suit C303-0075 KB Adapter

Ten Group // Electrical Power Line Materials // Anchors and Driving Equipment // Screw Anchors & Driving Equipment // Assembly, locking dog, 6 hole, 5 1/4" bolt circle, suit C303-0075 KB Adapter
Assembly, locking dog, 6 hole, 5 1/4" bolt circle, suit C303-0075 KB Adapter


Code: SAE10425
Brand: Unspecified
Product Details
Assembly, locking dog, 6 hole, 5 1/4" bolt circle, suit C303-0075 KB Adapter

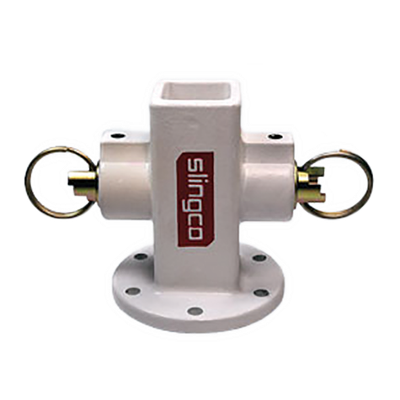

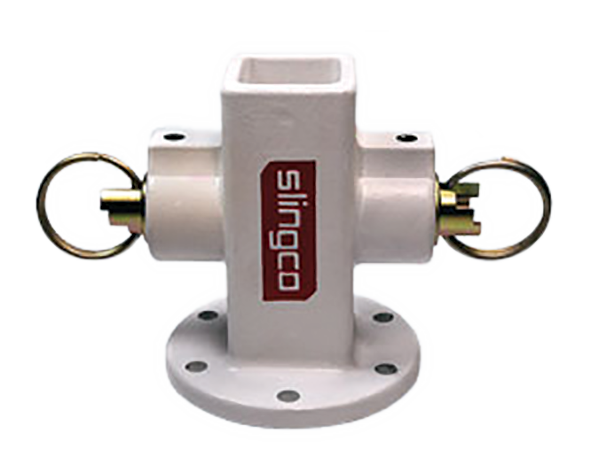

Locking Dog Assembly

Is bolted to the Kelly bar adapter. A pair of spring loaded dogs secure the Drive End Assembly and Anchor Rod

Partner with a company who supplies a complete range of Anchors, Anchor Rods, Accessories and Installation equipment

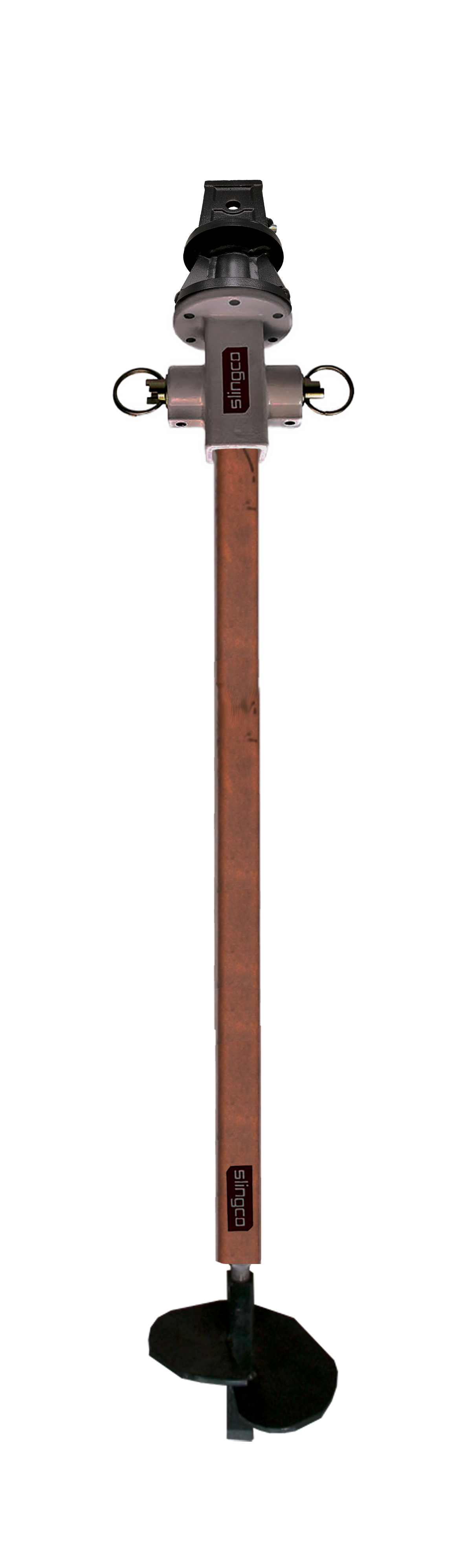

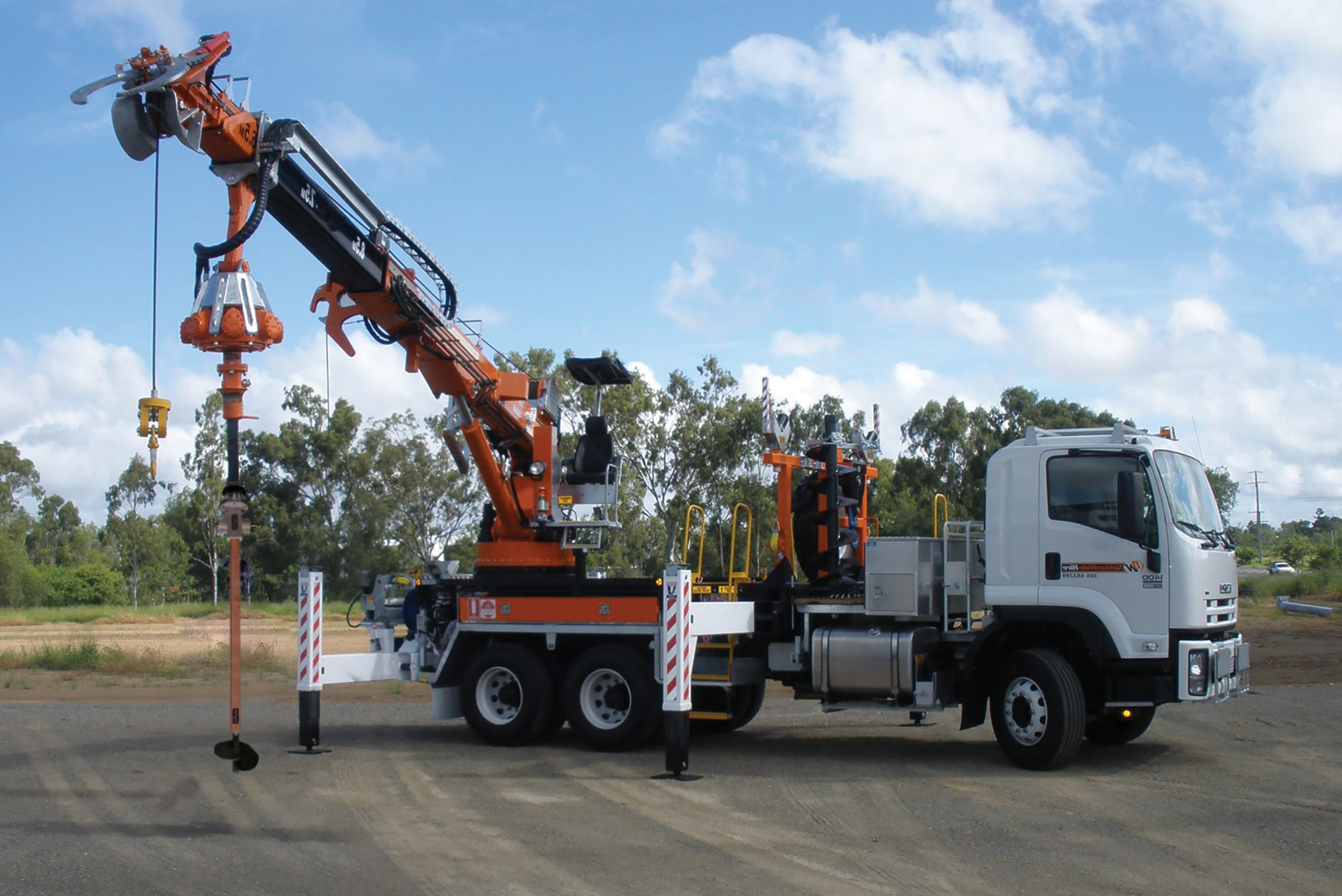

Slingco’s anchoring equipment is designed to work with the Kelly bar of the lifter borer truck by transferring the torque from the drive motor to the screw anchor. The installation equipment includes common size kelly bar adapters, drive wrench locking dogs and drive wrenches. Sling-co’s drive wrench assembly is rated for 10,000 foot pounds of torque allowing for anchor installation in the toughest of environments.

ORDERING INFORMATION
Part No.DescriptionDetails
C303-0075Kelly Bar AdapterSuit 75mm x 75mm Drive - 6 hole configuration
SAE10425Locking Dog Assembly (Formerly C303-0069HD)For 133mm 5¼" Bolt Circle - 6 hole configuration
SAE09639Drive End Wrench (Standard) (Formerly C102-1583)2.1m OAL, Used for both 35mm (1⅜") Square Shaft & 57mm (2¼") Socket Power Hub Anchors
SAE08666Drive End Wrench (Hybrid) (Formerly C303-1064)2.1m OAL, Used for both 38mm (1½") Square Shaft Swamp Anchors & 63mm (2½") Socket Power Hub Anchors
