Wrench, drive end, 2.13m L, yellow tip, suit 38mm sq shaft & 63mm hub anchors

Ten Group // Electrical Power Line Materials // Anchors and Driving Equipment // Screw Anchors & Driving Equipment // Wrench, drive end, 2.13m L, yellow tip, suit 38mm sq shaft & 63mm hub anchors
Wrench, drive end, 2.13m L, yellow tip, suit 38mm sq shaft & 63mm hub anchors


Code: SAE08666
Brand: Unspecified
Product Details
Wrench, drive end, 2.13m L, yellow tip, suit 38mm sq shaft & 63mm hub anchors

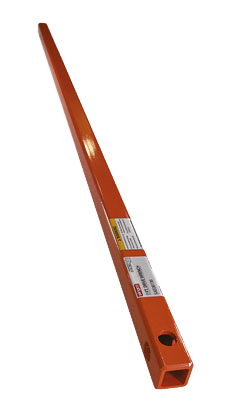

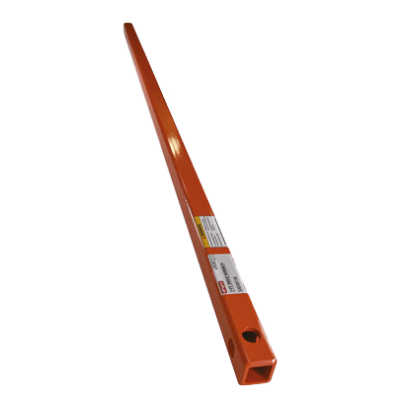

Drive End Wrench/Torque Tube (Hybrid)

Engages the anchor hub & drives the anchor into the ground, either internally or externally depending on the anchor type

Partner with a company who supplies a complete range of Anchors, Anchor Rods, Accessories and Installation equipment

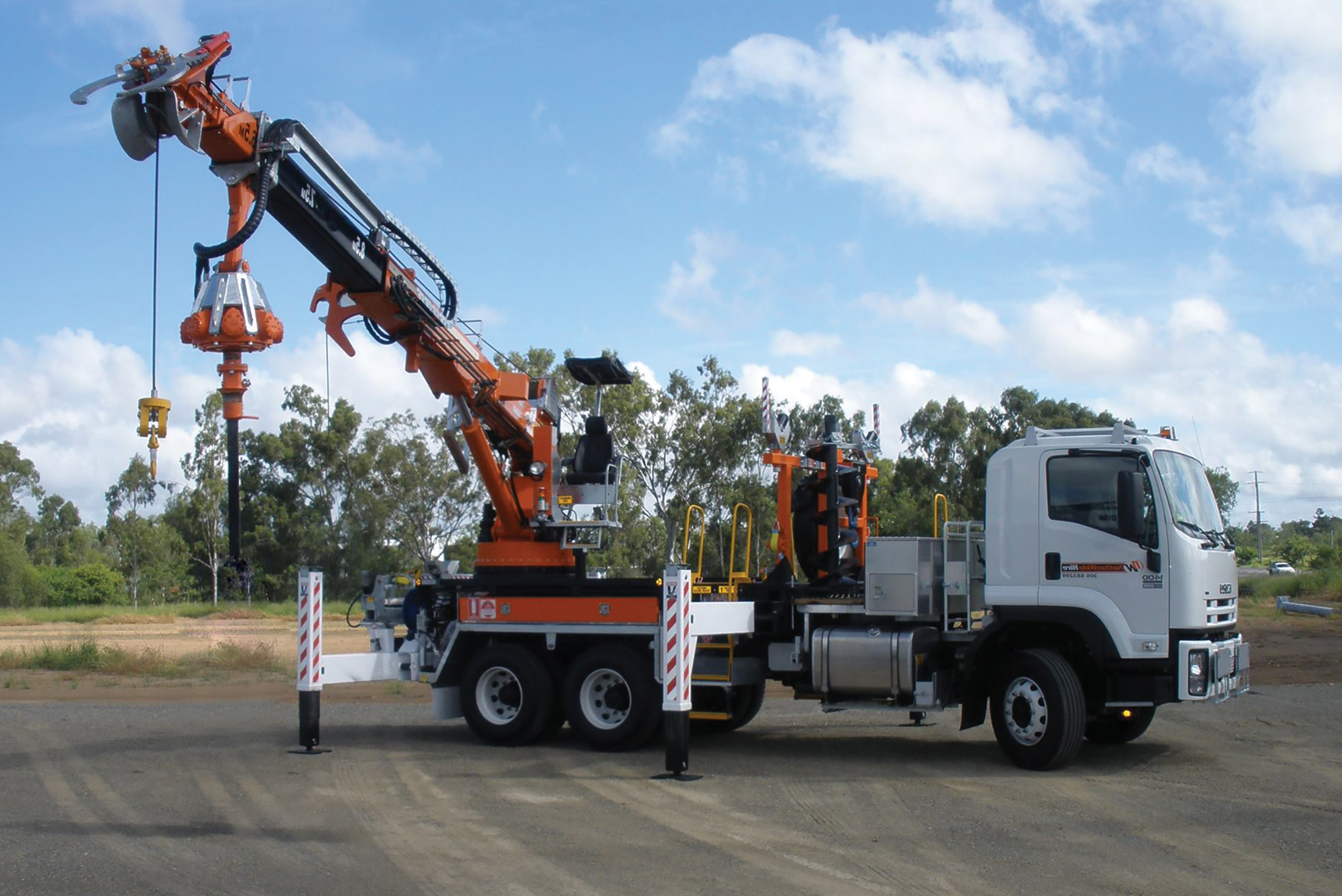

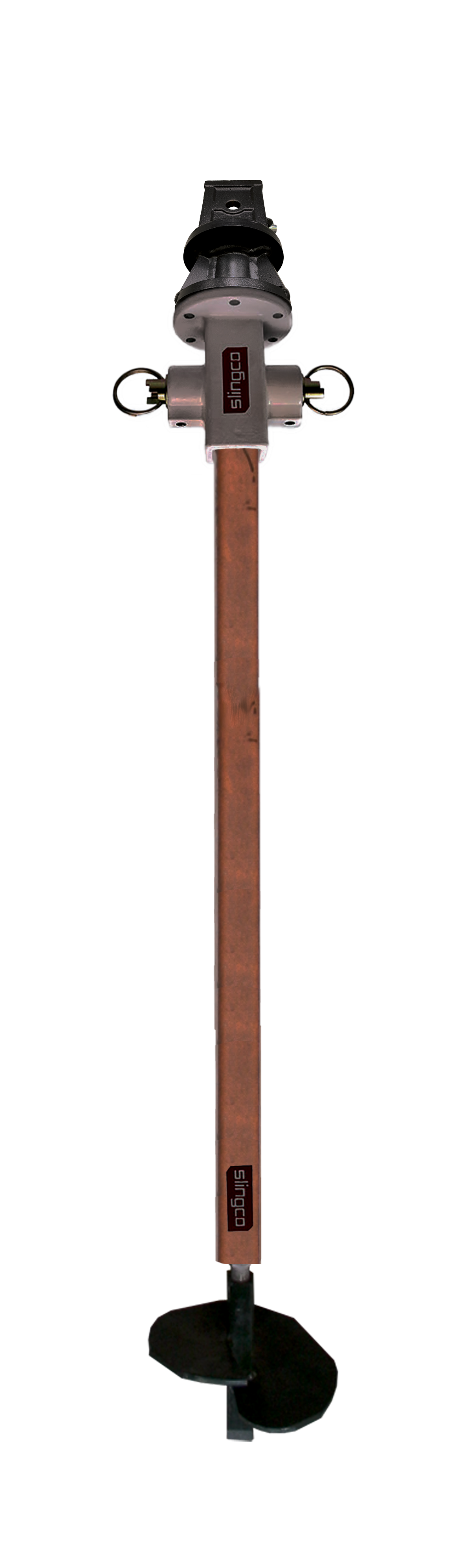

Slingco’s anchoring equipment is designed to work with the Kelly bar of the lifter borer truck by transferring the torque from the drive motor to the screw anchor. The installation equipment includes common size kelly bar adapters, drive wrench locking dogs and drive wrenches. Sling-co’s drive wrench assembly is rated for 10,000 foot pounds of torque allowing for anchor installation in the toughest of environments.

ORDERING INFORMATION
Part No.DescriptionDetails
C303-0075Kelly Bar AdapterSuit 75mm x 75mm Drive - 6 hole configuration
SAE10425Locking Dog Assembly (Formerly C303-0069HD)For 133mm 5¼" Bolt Circle - 6 hole configuration
SAE09639Drive End Wrench (Standard) (Formerly C102-1583)2.1m OAL, Used for both 35mm (1⅜") Square Shaft & 57mm (2¼") Socket Power Hub Anchors
SAE08666 Drive End Wrench (Hybrid) (Formerly C303-1064)2.1m OAL, Used for both 38mm (1½") Square Shaft Swamp Anchors & 63mm (2½") Socket Power Hub Anchors
