Stand, reel jack, 2.7T Max, suits drums 56-167cm dia, 1.3T & 2.7T axles included, iToolCo

Ten Group // Cable Pulling and Hauling Equipment // Drum Handling Equipment // Drum Jacks // Stand, reel jack, 2.7T Max, suits drums 56-167cm dia, 1.3T & 2.7T axles included, iToolCo
Stand, reel jack, 2.7T Max, suits drums 56-167cm dia, 1.3T & 2.7T axles included, iToolCo


Code: RJ6K-AX02
Brand: iToolco
Product Details
Stand, reel jack, 2.7T Max, suits drums 56-167cm dia, 1.3T & 2.7T axles included, iToolCo

Kit Components

This item contains the following components:

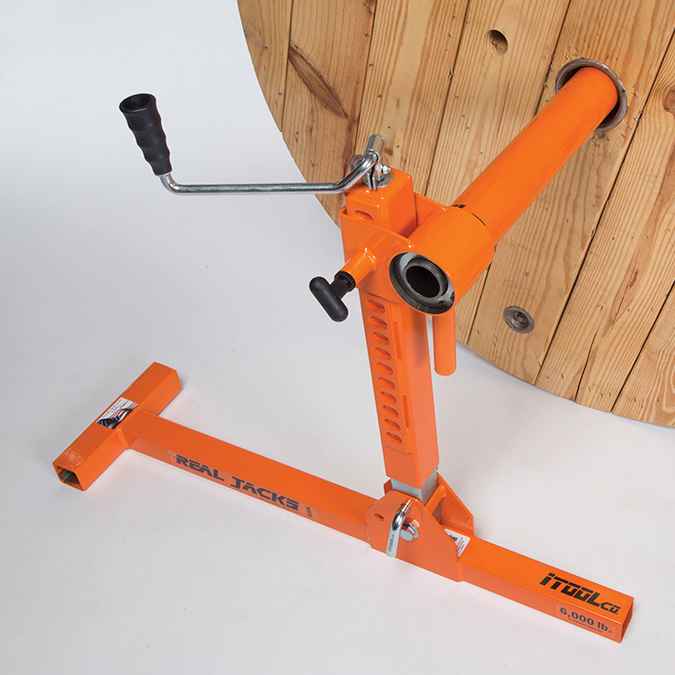

    iTOOLco’s Real Jacks™ make cable pulls run smooth and easy. These innovative drum jack stands have four sealed bearings that capture the axle to prevent the drum from traveling during the pull.

    Part No. RJ6K-AX02 - Includes axles AX02 & AX08

    Part No. RJ6K - Includes axles AX08 only

      FEATURES & BENEFITS

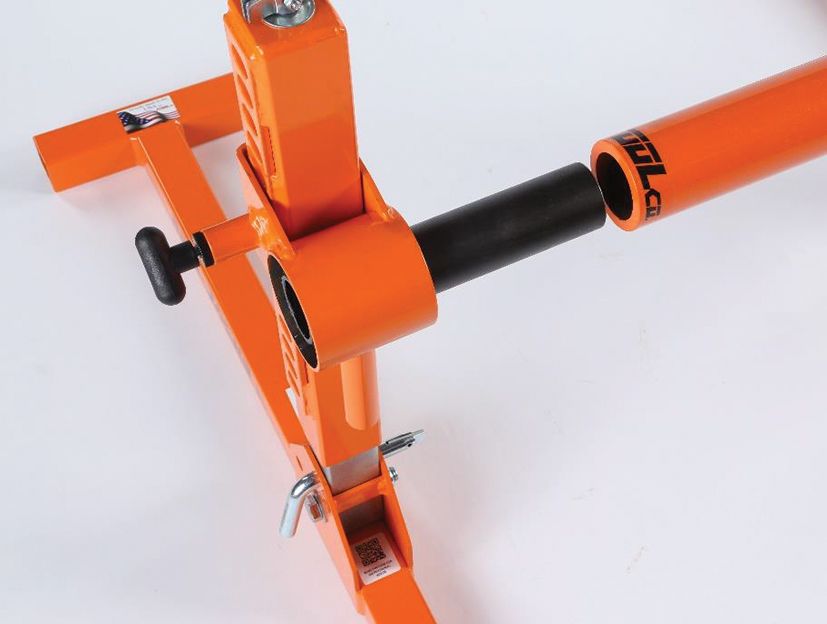

    • Closed head traps axle preventing it from falling out or traveling horizontally

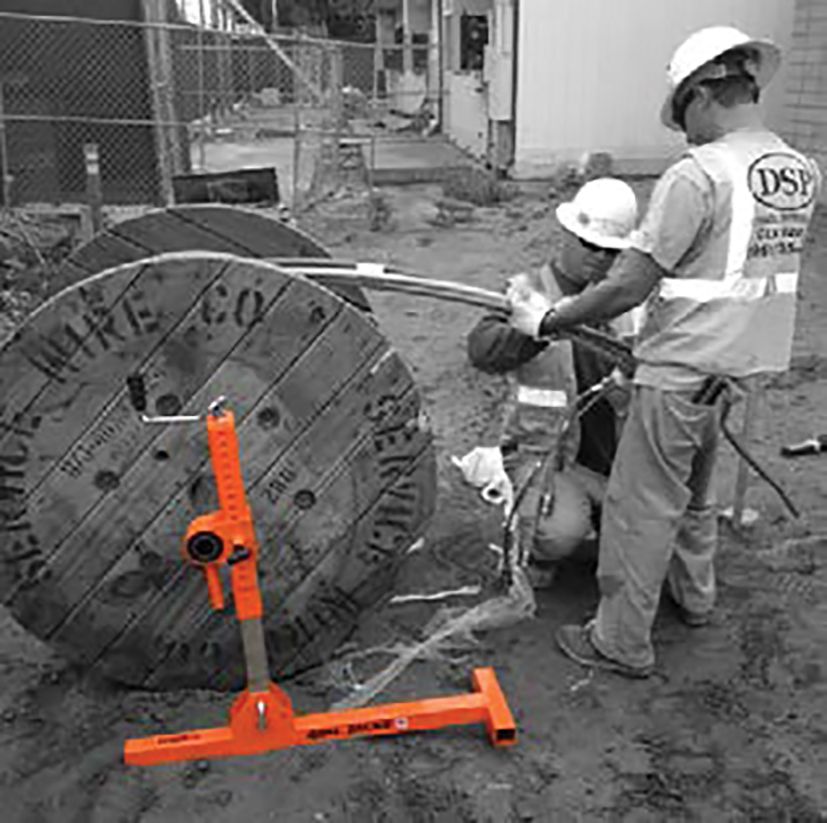

    • Separate sides allow the jacks to be used safely on uneven ground

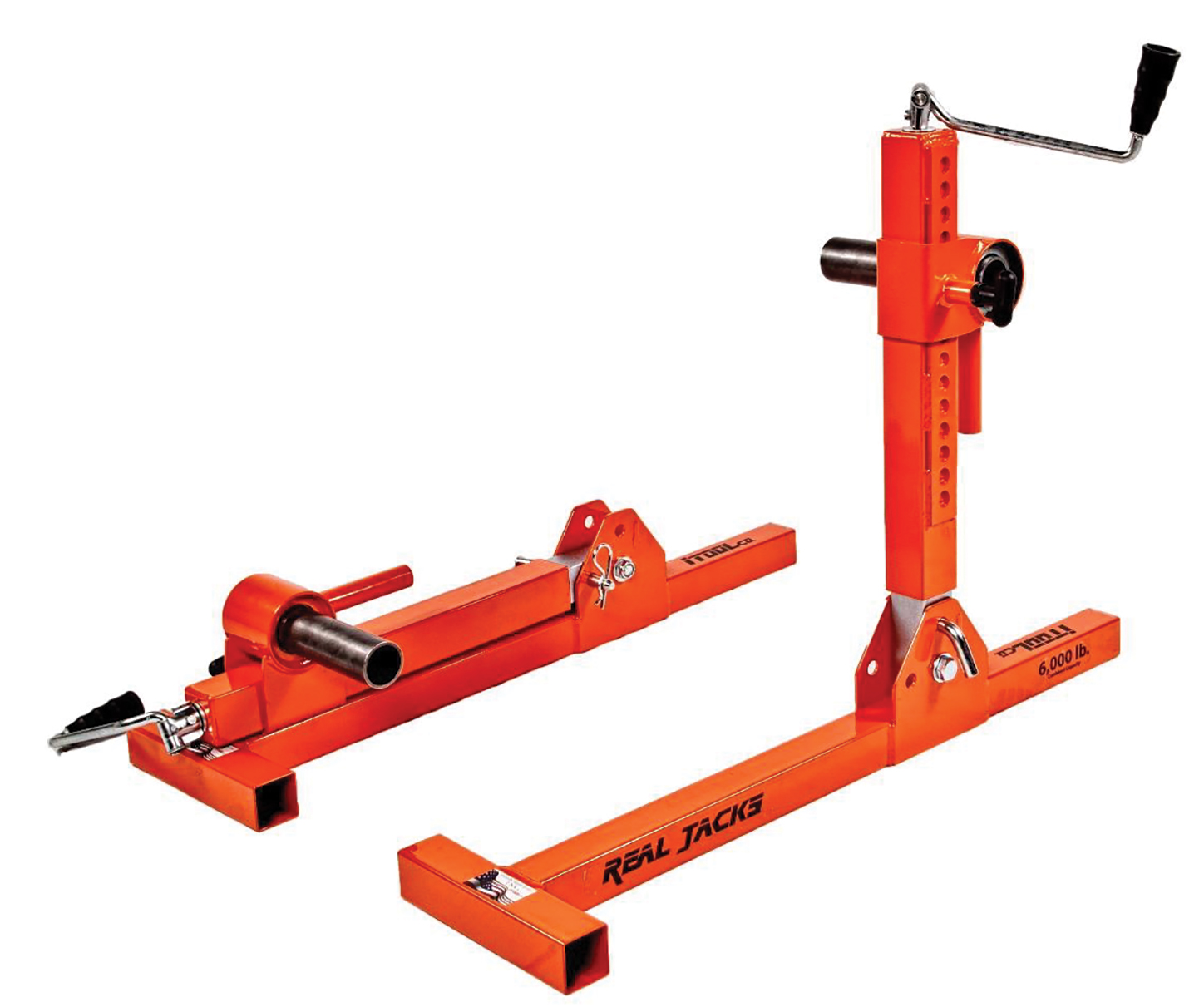

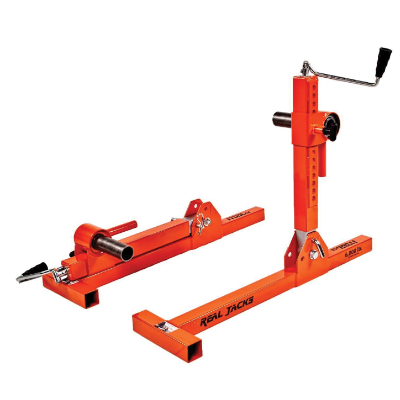

    • Easily folded for storage and transportation
    • Can be used with 560 to 1675mm drums
    • Easy to carry at 16kg per side
    • For use with iTOOLco AX02 (70mmOD) & AX08 (60mmOD) axles or AXS01 (38mmOD) solid bar
    • Set up in less than 1 minute
    • Four bearings make wire pulling smooth and easy
    • No drills or extra tools required

        • SPECIFICATIONS

        Capacity

        1.3T when used with iTOOLco AX08 Axle (Included)

        2.7T when used with iTOOLco AX02 Axle (Included)

        DescriptionSpindleWLL (kg)Min/Max Drum Diameter (mm)Dimensions (mm)Weight per set (kg)
        RJ6K-AX02*Real Jack Drum StandAX022700560 to 1675940L x 254W - 290H (Folded) - 978 (Assembled)32 (Without Axle)
        RJ6KReal Jack Drum StandAX081300560 to 1675940L x 254W - 290H (Folded) - 978 (Assembled)32 (Without Axle)

        *Part No. RJ6K-AX02 includes both axles AX02 & AX08
