Pole puller, hydraulic, 22T, chain, swivel chain assy, base plate, back plate, Reliable

Pole puller, hydraulic, 22T, chain, swivel chain assy, base plate, back plate, Reliable


Code: REL-PL-P
Brand: Reliable
Product Details
Pole puller, hydraulic, 22T, chain, swivel chain assy, base plate, back plate, Reliable

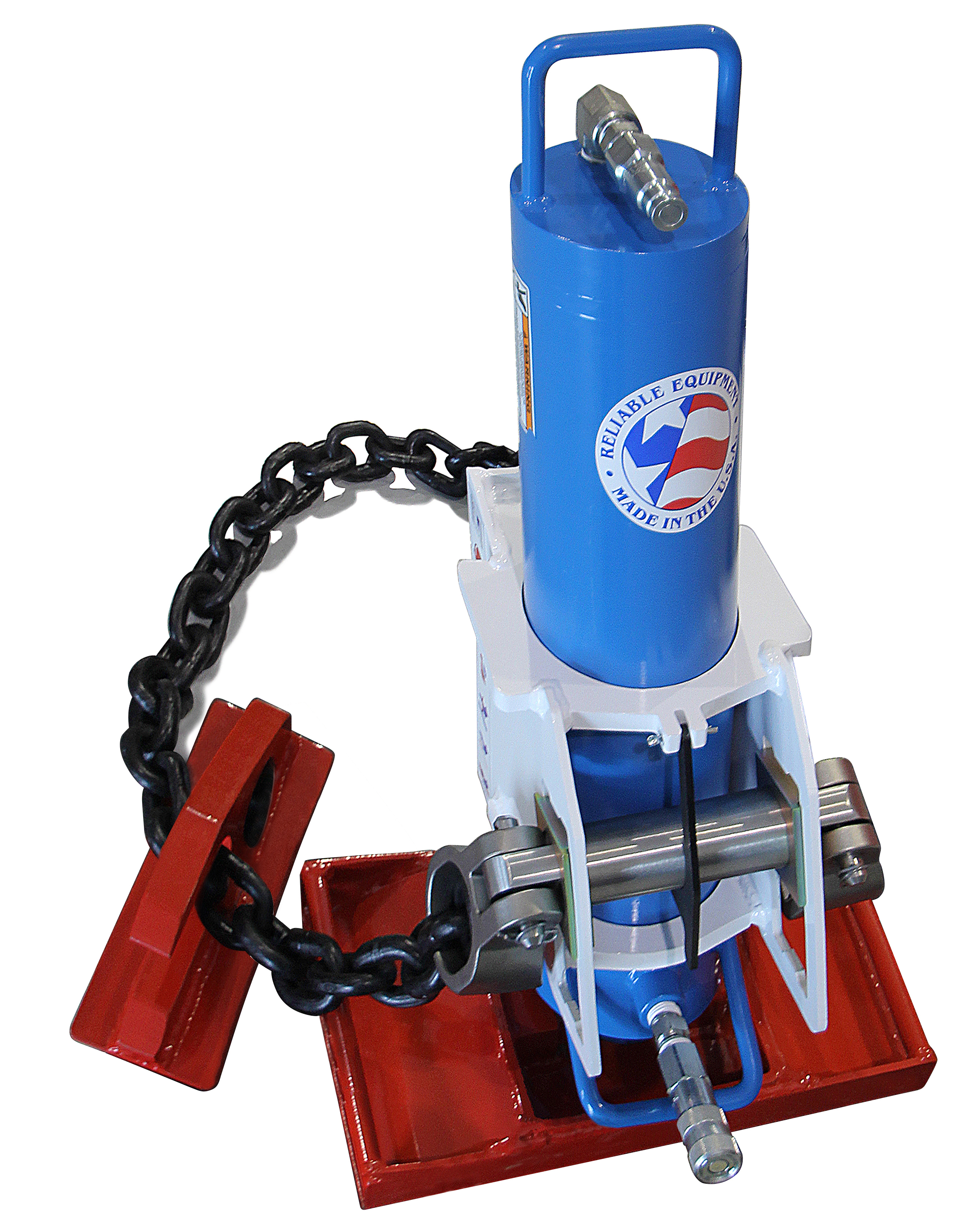

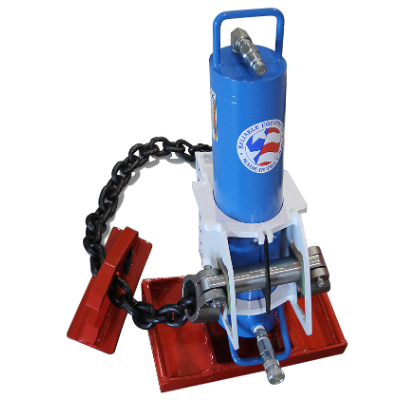

22 Tonne Hydraulic Puller

Part No. REL-PL-P

The REL-PL-P will make Pole Pulling with a Lifter Borer a thing of the PAST. Reduce damage and potential for injury related to pole pulling. Simple installation and operation combined with RELIABLE performance makes this Pole Puller a “Must Have Accessory” for all of your pole pulling operations.

Kit Includes

  • Hydraulic Cylinder with Flush Face Coupler Set
  • Swivel Chain Hook Assembly
  • Chain (12.7mm x 1830mm Alloy)
  • Base Plate and Back Plater

Technical Data

Operating Pressure 2800psi (193bar)
Recommended Flow 15-30 lpm
Lift at Maximum Pressure 22,734kg
Part Weight
Cylinder 25.85kg
Base Plate 11.36kg
Back Plate 3.2kg
Swivel Chain Hook Assembly 16.32kg
Chain 6.8kg

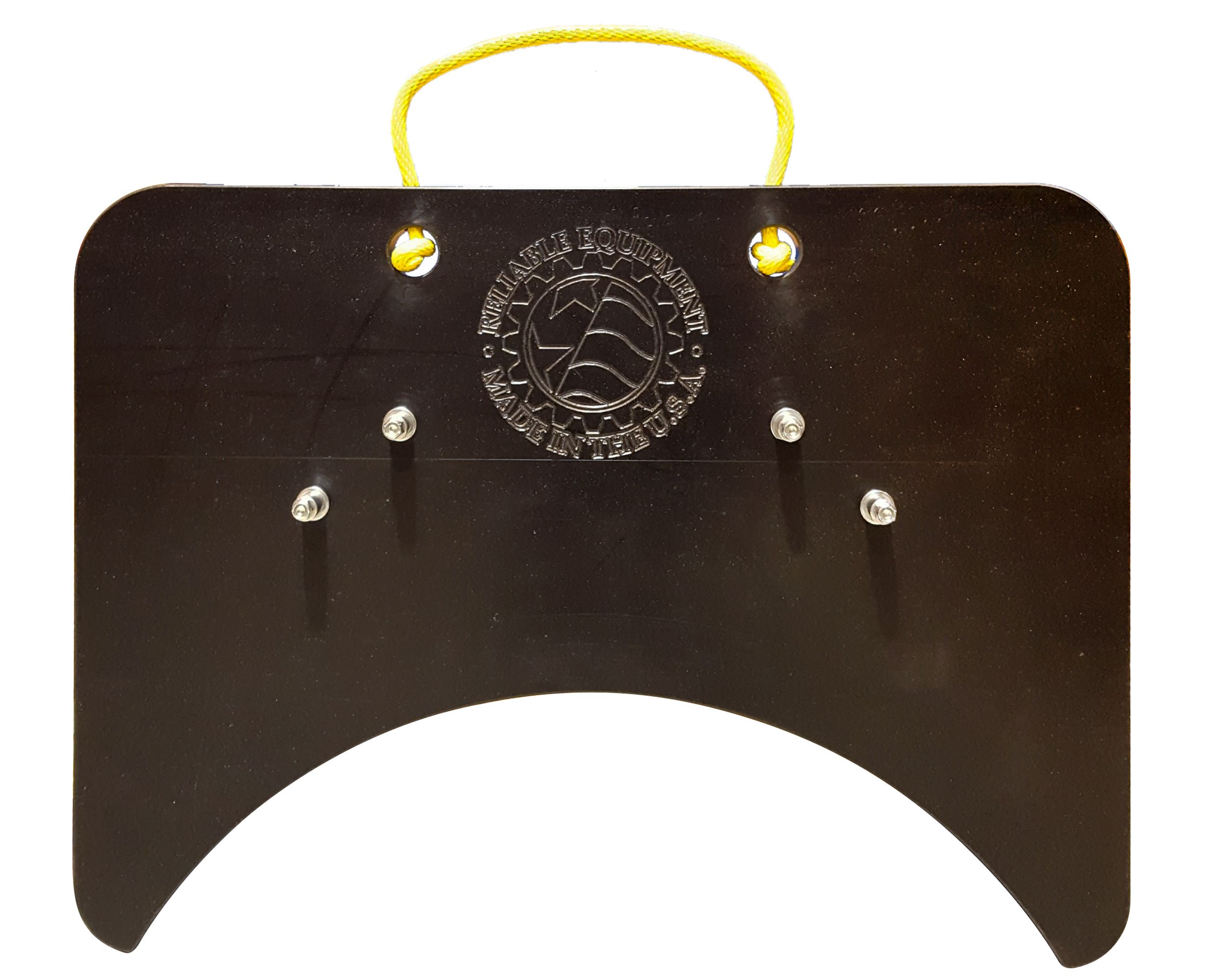

Base Pad (optional) 11.36kg
