Polesaw, hydraulic, LP, foam filled, 330mm bar, 1900mm OAL, couplers, ASSY
Polesaw, hydraulic, LP, foam filled, 330mm bar, 1900mm OAL, couplers, ASSY
Code: REL-LR-75-TEN-A
Brand: Reliable
Product Details
Polesaw, hydraulic, LP, foam filled, 330mm bar, 1900mm OAL, couplers, ASSY
Brand: Reliable
Product Details
Polesaw, hydraulic, LP, foam filled, 330mm bar, 1900mm OAL, couplers, ASSY

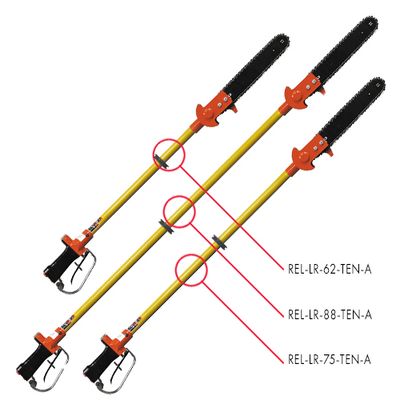

Reliable’s LR-SERIES long reach Insulated Pole chain saws are intended for safely cutting and trimming trees from the ground or an aerial bucket / EWP.
The powerful hydraulic drive motor can easily make cuts up to 330mm in diameter. Three sizes available, with overall lengths of 1600, 1900 & 2250mm, the operator may easily reach areas not possible with a standard chain saw.
FEATURES
- Internally Foam filled fibreglass tube to prevent the ingress of moisture and provide additional electrical safety protection
- Used to safely cut and trim trees and wood, including crossarms
- Powerful hydraulic drive motor
- EZ quick selector valve allows change between open and closed centre systems without tools
- Insulated Fibreglass tube.
- Every saw supplied electrically tested with report
- Supplied standard with Trigger guard, sprocket guard, rubber handguard and scabbard
- The only 62" (1600mm) Long Reach Foam Filled Insulated Chain Saw on the market
SPECIFICATION
| Part No. | REL-LR-62.5-TEN-A | REL-LR-75-TEN-A | REL-LR-88.5-TEN-A |
|---|---|---|---|
| OAL (mm) | 1600 | 1900 | 2250 |
| Insulated Length (mm) | 845 | 1175 | 1515 |
| Cut Capacity (mm) | 330 | ||
| Hydraulic System | Open or Closed | ||
| Flow Rate | 19-30 lpm | ||
| Operating Pressure | 1000-2000 PSI | ||
| Pressure Port Thread | 9/16" - 18 SAE O-Ring | ||
| Return Port Thread | 3/4" - 16 SAE O-Ring | ||
| Couplers | Male and Female Flush Face Couplers | ||
| Chain Pitch | 8.25/25.4mm | ||
| Chain Gauge | 1.47/25.4mm | ||
| Plastic Scabbard P/N | SCAB-PS | ||
| Weight (kg) | 3.6 | 4.3 | 5 |
