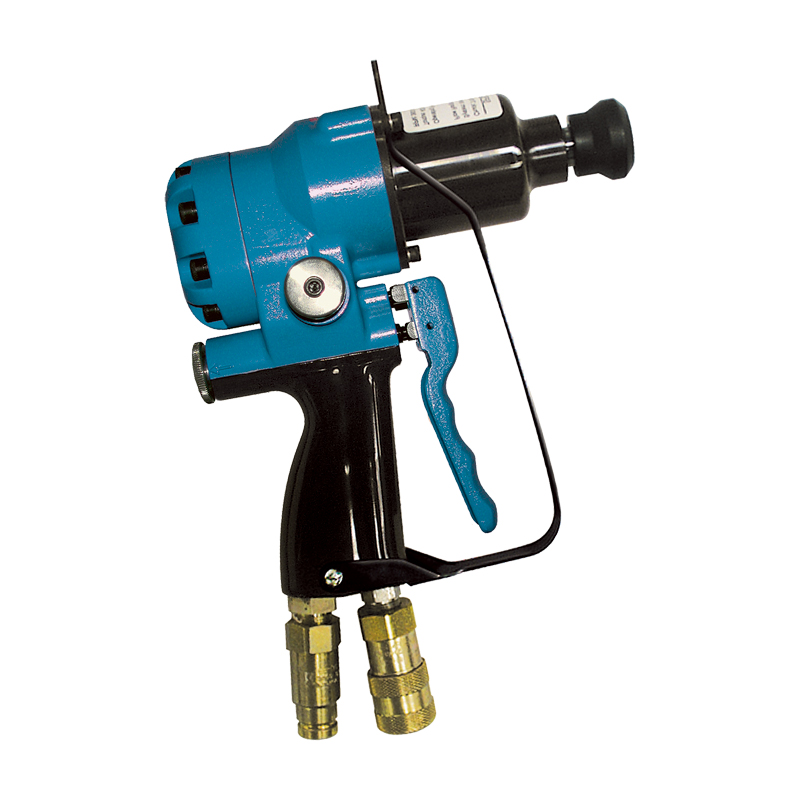

The Reliable Impact Wrench was designed with an EZ selector for use on both open and closed centre hydraulic systems. Its lightweight design makes it the ideal tool for use on utility pole construction, in particular drilling, loosening rusted hardware or tightening bolts with ease.
- Lightweight aluminium alloy construction
- One piece aluminium body
- Feather trigger allows control of speed
- Adjustable throw angle on trigger
- Ergonomic balanced design with finger moulds in trigger
- Easily changeable forward/reverse push shaft
- EZ selector valve allows change between open and closed
- centre systems without tools
- Supplied with trigger guard and flush face couplers
- Heat insulated handle
- Lifetime warranty on motor only
| Part No | Chuck Type | Operating Pressure | Flow | Torque/ @ 22.7L-min | RPM @ 22.7L/min | Weight with couplers |
|---|
| REL425CG | 7/16" | 1,000-2,000 PSI | 19-30 L/min | 0.50kN-M | 3,600 | 3.9kg |
Tech Corner
Variable torque settings are not recommended, as this can increase the running temperature of the drill when used on a low torque setting. Heat is a major contributor to seal and component damage and can increase maintenance and repair.
TEN is an authorised Reliable Equipment Service & Repair Centre
