Stripper, cable, bushing only, for 2x2-4x4-WS68 tool, 70mm² Cu PVC .6/1kV Blk/Clear,Ripley

Stripper, cable, bushing only, for 2x2-4x4-WS68 tool, 70mm² Cu PVC .6/1kV Blk/Clear,Ripley


Code: RB-305
Brand: Ripley Tools
Product Details
Stripper, cable, bushing only, for 2x2-4x4-WS68 tool, 70mm² Cu PVC .6/1kV Blk/Clear,Ripley

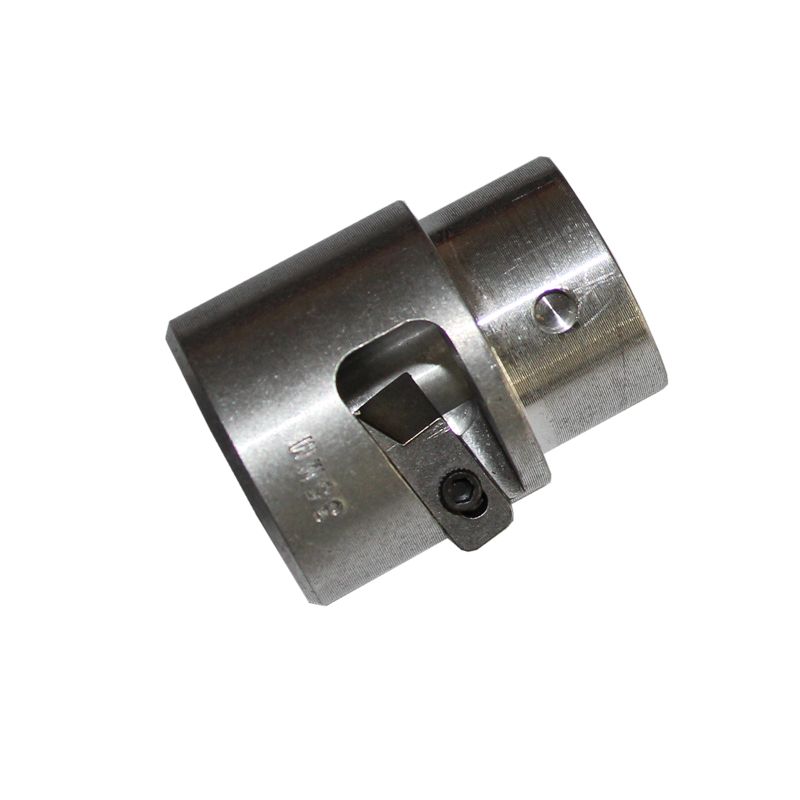

TEN Square Cut Cable Stripper Bushing

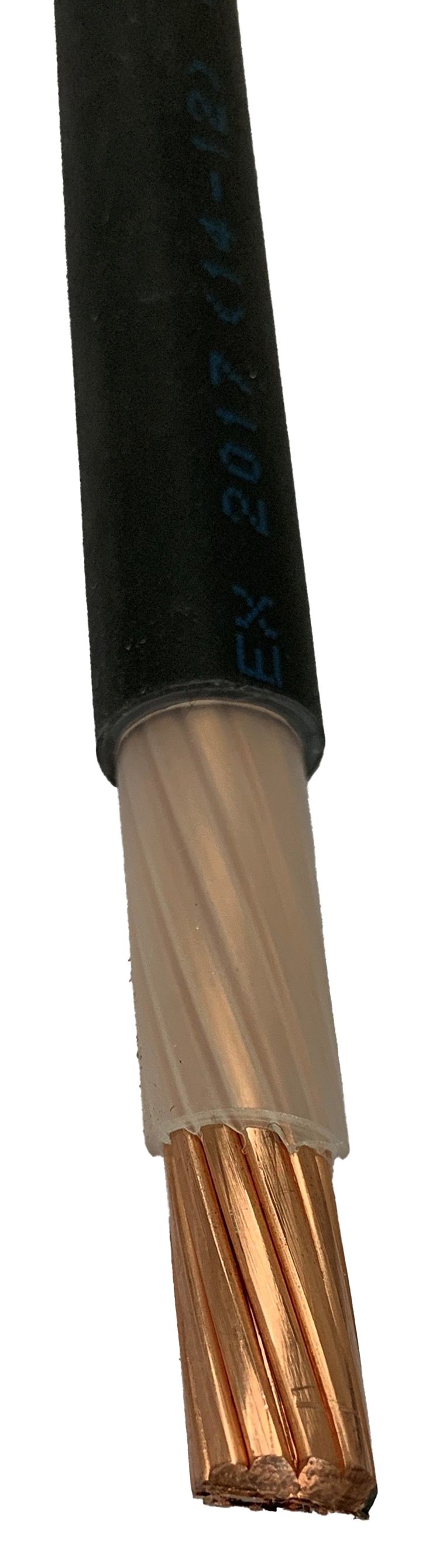

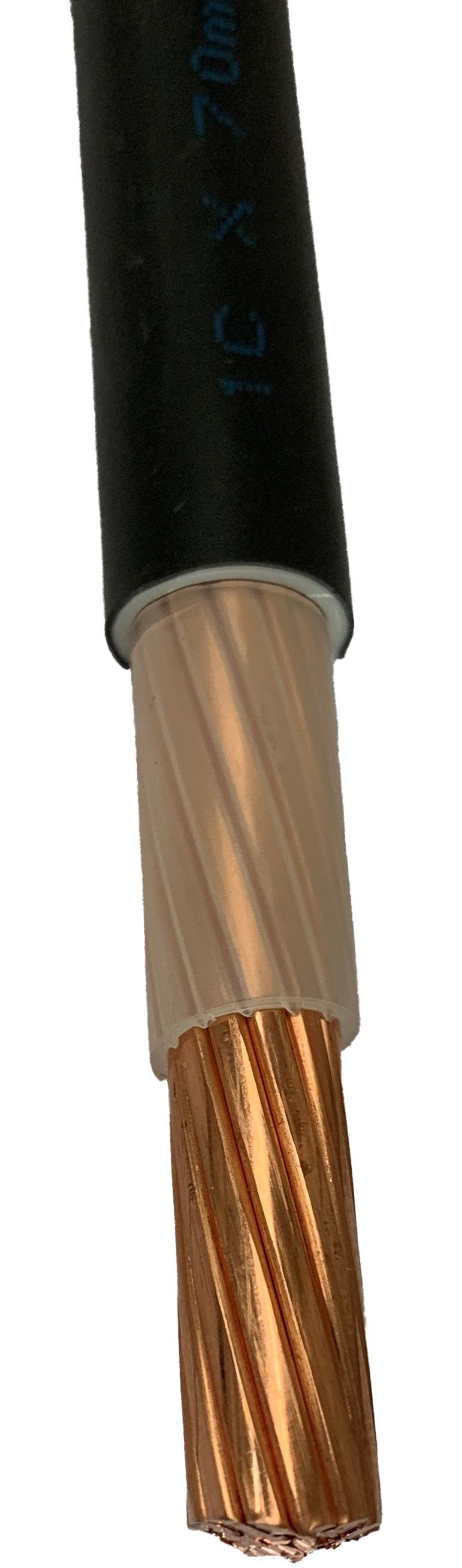

Part No. RB-305 - Cable Stripper Bushing for 70mm² Cu PVC LV 0.6/1kV Black on Clear (Olex) & Black-White on Clear (Olex)

Large range of bushings suit common Australian cable sizes

Quick and simple bushing interchange for fast cable stripping

Bushings Suit the following Stripping Tools

  • Milwaukee - M18™ Battery Cable Stripper - Part No. M18BCS-0C

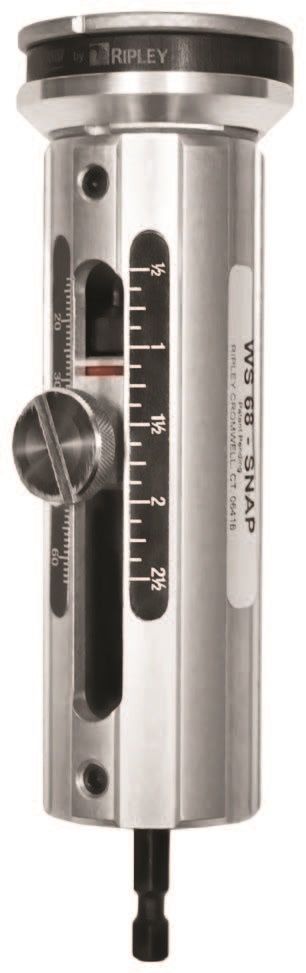

  • Ripley - Power Driven Stripper - Part No. WS68-3-8

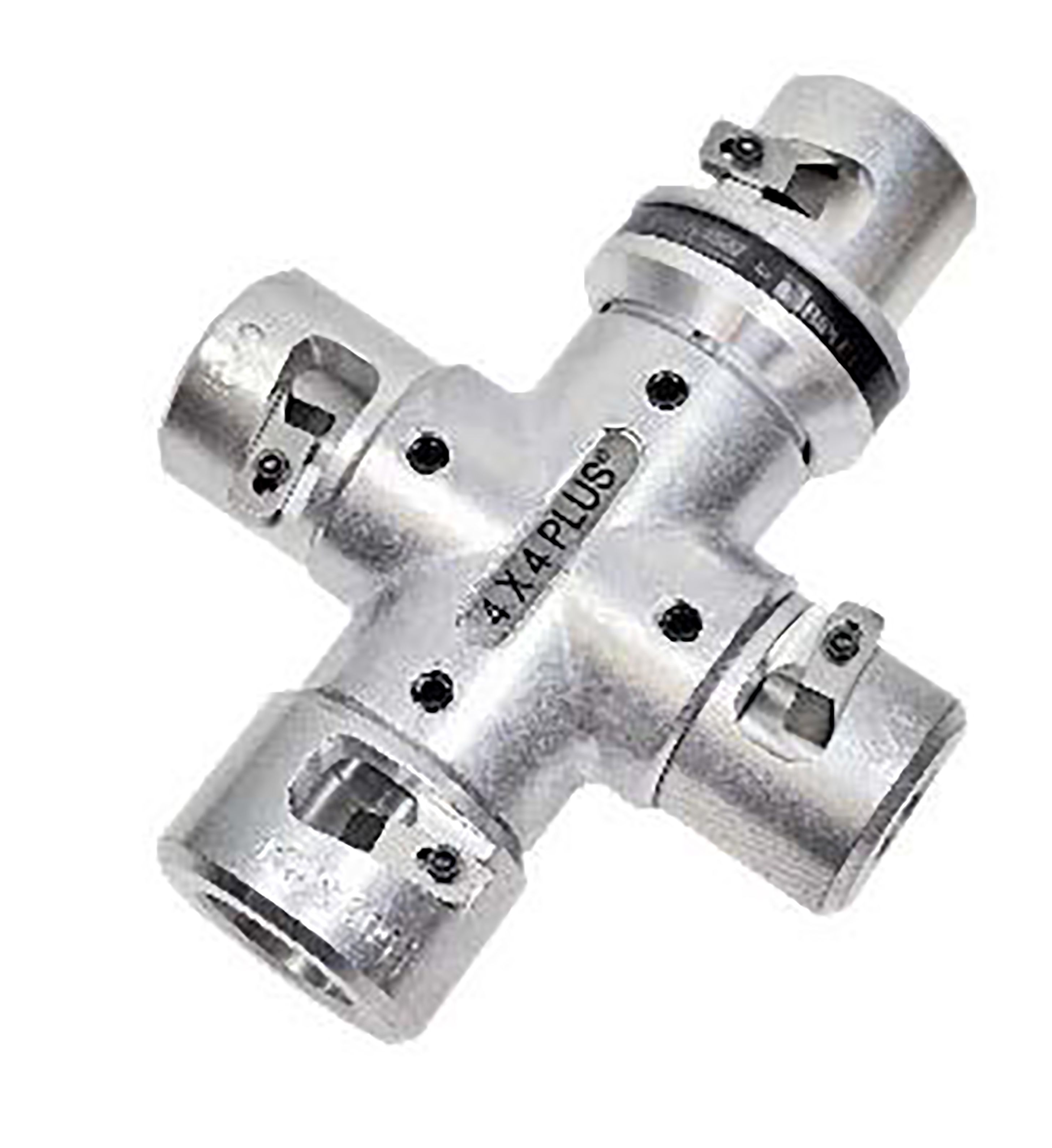

  • Ripley - 4 x 4 Stripper - Part No. 36001H

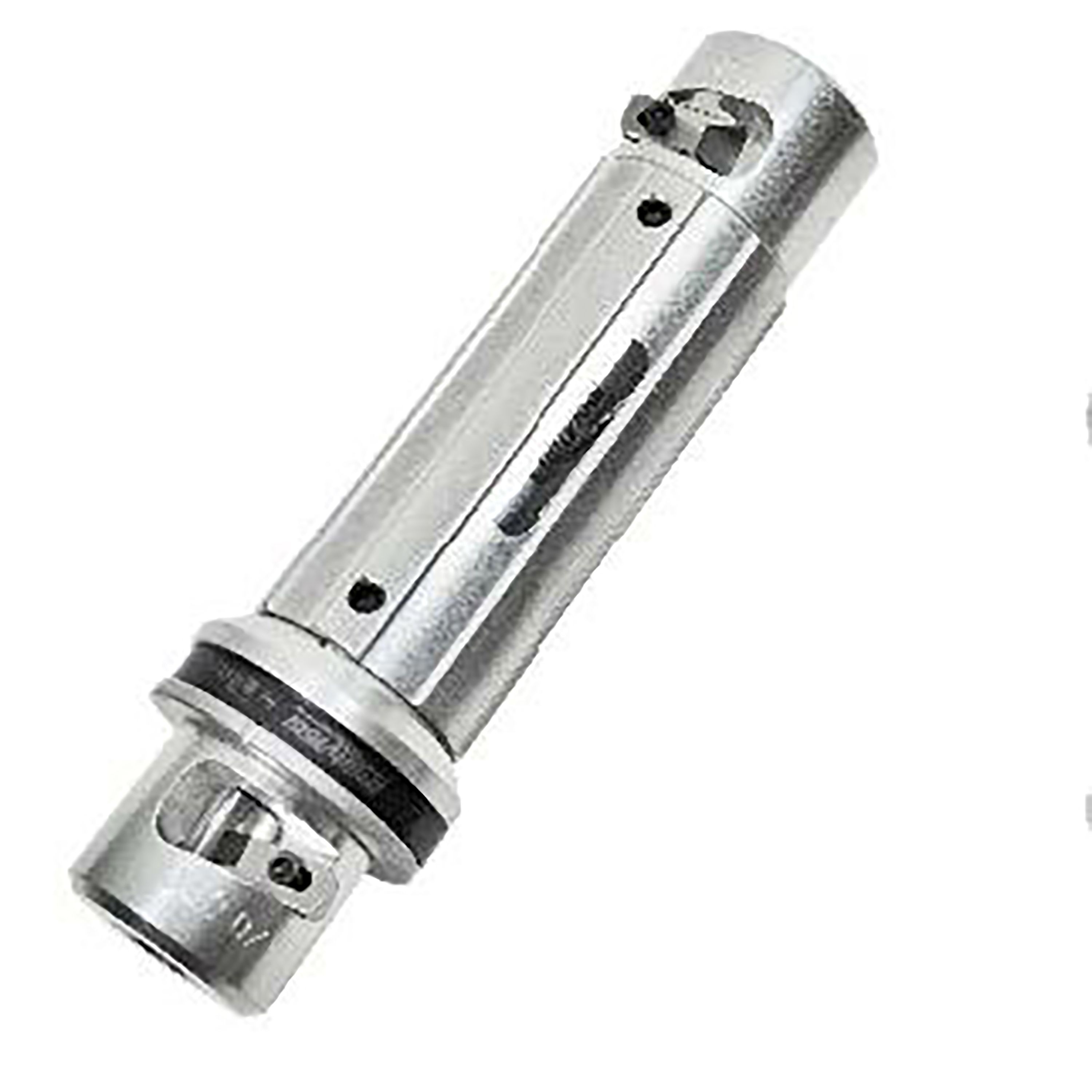

  • Ripley - 2 x 2 Stripper - Part No. 36101H

Range of available bushings

TEN Part No.Square Cut Bushings to suit LV ABC
RB-10010mm² Al XLPE OH
RB-10116mm² Al XLPE OH
RB-20025mm² Al XLPE OH
RB-20135mm² Al XLPE OH
RB-30050mm² Al XLPE OH
RB-30170mm² Al XLPE OH
RB-40095mm² Al XLPE OH
RB-401120mm² Al XLPE OH
RB-500150mm² Al XLPE OH
TEN Part No.Square Cut Bushings to suit Underground
RB-10216mm² Cu XLPE/PVC LV UG (Olex)
RB-20235mm² Cu XLPE/PVC LV UG (Olex)
RB-30250mm² Cu XLPE/PVC LV UG (Olex)
TEN Part No.Square Cut Bushings to suit Building Cable
RB-10316mm² Cu PVC SDI V90 - Red (Olex)
RB-10316mm² Cu PVC SDI V90 - Black (Olex)
RB-30370mm² 19/2.14 Cu Green/Yellow Earth building wire
RB-600240mm² Cu Double Insulated
TEN Part No.Square Cut Bushings to suit PVC
RB-30450mm² Cu PVC 0.6/1kV - Black on White (Olex)
RB-30570mm² Cu PVC 0.6/1kV - Black on Clear (Olex)
RB-30570mm² Cu PVC 0.6/1kV - Black-White on Clear (Olex)
TEN Part No.Square Cut Bushings to suit Misc Cable
RB-30670mm² Cu XLPE / PVC, Black on White (Olex)
RB-402120mm² Cu XLPE / PVC, Black on Clear (Olex)
RB-501150mm² Cu, Black-White on Clear (Olex)
RB-502185mm² Cu, Black-White on Clear (Olex)
RB-502185mm² Cu, Black (Prysmian)
RB-501150mm² Al, Black (Olex)
RB-601240mm² Al XLPE / PVC, Black on Colour (Olex)
RB-700157mm² HD Al, Railway, 12 x 3.27 0.6/1KV V-90 L Electric Cable (Prysmian)
CB6667Bushing spare blade
TEN Part No.Ripley Stripper Bodies & Accessories
WS68-3-8RIPLEY Power/Drill Driven Stripper
36001HRIPLEY 4 x 4 Stripper
36101HRIPLEY 2 x 2 Stripper

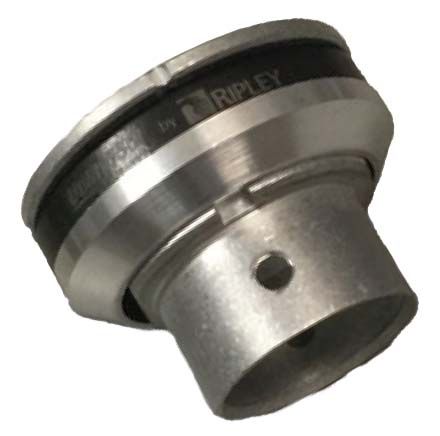

40110RIPLEY Bushing quick connect for above strippers
