Hoist, ratchet, web, single, 3m/750kg, double 1.5m/1500kg, convertible, NGK

Ten Group // Cable Pulling and Hauling Equipment // Hoists and Lever Blocks // Web Strap Hoists // Hoist, ratchet, web, single, 3m/750kg, double 1.5m/1500kg, convertible, NGK

Code: N-1500P-EX
Brand: NGK
Product Details
Hoist, ratchet, web, single, 3m/750kg, double 1.5m/1500kg, convertible, NGK

Product Features and Benefits
Documentation

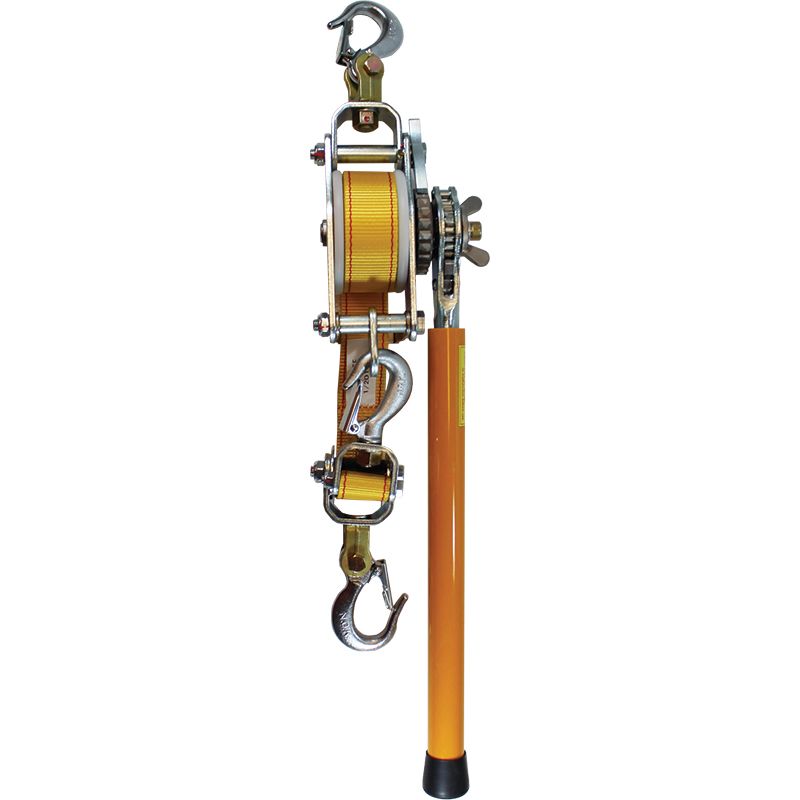

Nagaki NGK N-1500P-EX

Web Strap Ratchet Hoists

Part No	WLL (T)	Min Pull (mm)	Max Pull (mm)	Handle Length (mm)	Wt (kg)
N-1500P-EX	0.75 Single 1.5 Double	500	2000 Double 3500 Single	460	5.0

NGK web strap hoists feature insulated super-strength 32mm wide web straps, insulated fibreglass handles and a special handle neck that will bend if the unit is overloaded to prevent damage to the puller and injury to the operator.

Convertible series with 3 hooks
Lightweight
Insulated handle rotates 360 deg
Controlled smother release of load
Made in Japan from Quality Japanese components

Other Nagaki NGK Web Strap Hoists Available from TEN

Part No	WLL (T)	Min Pull (mm)	Max Pull (mm)	Handle Length (mm)	Wt (kg)
N-1000P	1.0	440	1940	400	3.3
N-1500P	1.5	470	1970	460	4.6
N-1500P-EX-L	Pulling: 0.75 Single 1.5 Double Lifting: 200kg Single 400kg Double	500	2000 Double 3500 Single	460	5.0

TEN Group_NGK N-1500P-EX Hoist-0123pdf.pdf
