This item contains the following components:
Part No./Sections | Part No./ Stick c/w Quick release head |
Extended Length (m) | Retracted Length (m) | Base OD (mm) | Wt (kg) | Add "K" for Storage Bag |
---|---|---|---|---|---|---|
MV-25 | MV-25-Q | 7.8 | 1.6 | 48.5 | 3.7 | TENM301 |
MV-30 | MV-30-Q | 9.2 | 1.7 | 52.5 | 4.5 | TENM301 |
MV-35 | MV-35-Q | 10.6 | 1.7 | 56.0 | 5.5 | TENM301 |
MV-40 | MV-40-Q | 12.0 | 1.8 | 60.4 | 6.5 | TENM301 |
Kit also available with Storage Bag - *Add -K to part Number

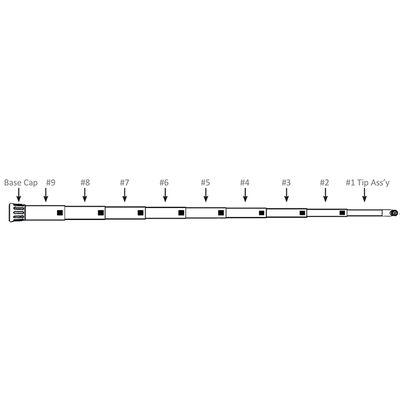

Part No./ Sections |
9 Base |
8 | 7 | 6 | 5 | 4 | 3 | 2 | 1 | Base Cap | Thumb Screw |
---|---|---|---|---|---|---|---|---|---|---|---|
MV-25 | - | - | - | A20348 | A20356 | A20355 | A20354 | A20353 | A20352 | P18029 | P16055 |
MV-25-Q | - | - | - | A20348 | A20356 | A20355 | A20354 | A20353 | A20466 | P18029 | Not Required |
MV-30 | - | - | A20349 | A20357 | A20356 | A20355 | A20354 | A20353 | A20352 | P18030 | P16055 |
MV-30-Q | - | - | A20349 | A20348 | A20356 | A20355 | A20354 | A20353 | A20466 | P18030 | Not Required |
MV-35 | - | A20350 | A20358 | A20357 | A20356 | A20355 | A20354 | A20353 | A20352 | P18031 | P16055 |
MV-35-Q | - | A20350 | A20358 | A20357 | A20356 | A20355 | A20354 | A20353 | A20466 | P18031 | Not Required |
MV-40 | A20263 | A20359 | A20358 | A20357 | A20356 | A20355 | A20354 | A20353 | A20352 | P18026 | P16055 |
MV-40-Q | A20263 | A20359 | A20358 | A20357 | A20356 | A20355 | A20354 | A20353 | A20466 | P18026 | Not Required |
