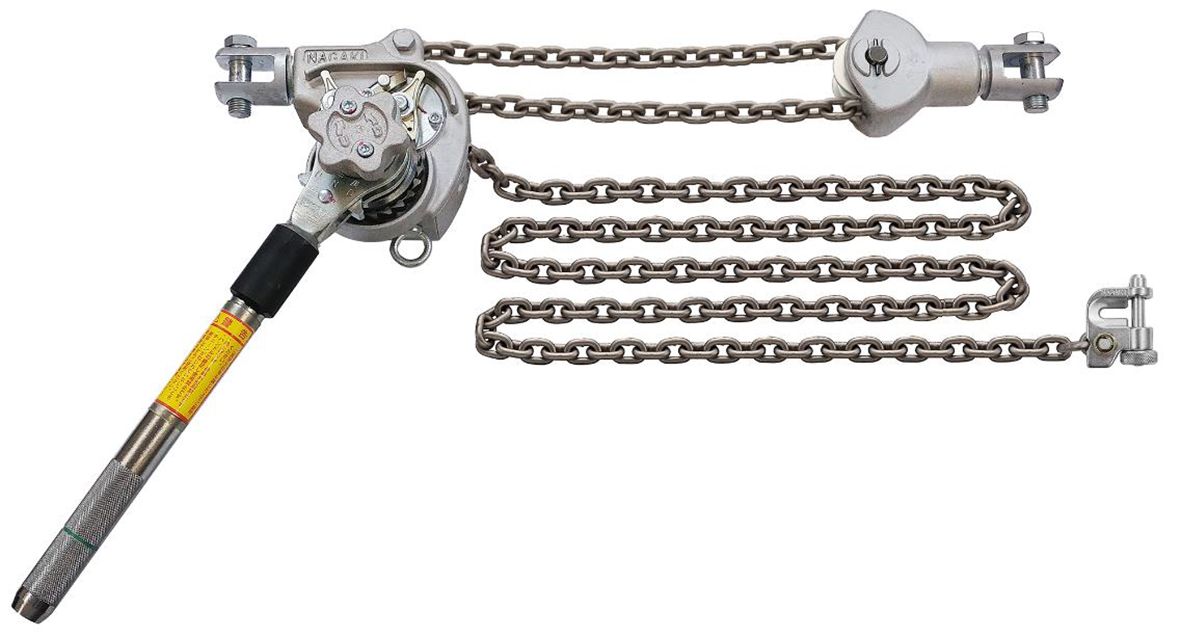

Hoist, ratchet, chain, 2T, 20kN, 480mm - 2m pull, torque handle, hook, 5mm D chain, NGK

Ten Group // Cable Pulling and Hauling Equipment // Hoists and Lever Blocks // Chain Hoists & Lever Blocks // Hoist, ratchet, chain, 2T, 20kN, 480mm - 2m pull, torque handle, hook, 5mm D chain, NGK
Hoist, ratchet, chain, 2T, 20kN, 480mm - 2m pull, torque handle, hook, 5mm D chain, NGK


Code: MODEL2000C-1.5
Brand: NGK
Product Details
Hoist, ratchet, chain, 2T, 20kN, 480mm - 2m pull, torque handle, hook, 5mm D chain, NGK

MODEL2000C-1.5

Features

  • Lightweight aluminium housing with 5mm OD alloy chain link and forged hooks
  • 360° rotating handle of 430mm length
  • Safety hook attachment
  • Special length chains available on request
Part # Style WLL Chain Length Minimum Pull Maximum Pull Handle Length Weight
MODEL2000C-1.5 Safety Hook 2 Tonne 1.5m 480mm 2000mm 430mm 6.6kg
MODEL3000-1.5 Safety Hook 3 Tonne 1.5m 480mm 2000mm 430mm 8.0kg
MODEL4000H-1.5 Safety Hook 4 Tonne 1.5m 580mm 2180mm 430mm 12.0kg
MODEL6000-1.5 Clevis 6 Tonne 1.5m 650mm 2250mm 430mm 19.0kg
