Stick, telescopic, measuring, 40', 12.0m/1.67m, Hastings

Ten Group // FIBREGLASS STICKS & ACCESSORIES // Fibreglass Sticks // Telescopic Sticks // Stick, telescopic, measuring, 40', 12.0m/1.67m, Hastings
Stick, telescopic, measuring, 40', 12.0m/1.67m, Hastings


Code: M-40
Brand: Hastings Fiberglass Products
Product Details
Stick, telescopic, measuring, 40', 12.0m/1.67m, Hastings

Hastings Round Measuring Telescopic Fibreglass Sticks

  • Measure elevated heights
  • Foam filled tip section
  • Tested to ASTM F7-11 & OSHA
  • Supplied in metre/centimetre measuring graduations
  • Eye level reading with measurement markings in large, red, easy to read numbers
  • Markings will not chip, peel or rub off
  • Hook style stick head

Part # Extended Length Retracted Length Weight
M-25 7.5m 1.7m 1.5kg
M-35 10.5m 1.7m 2.7kg
M-40 12.0m 1.7m 3.4kg
M-50 15.0m 1.8m 6.0kg

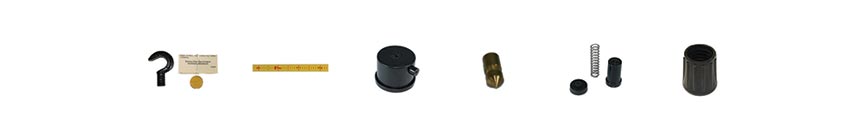

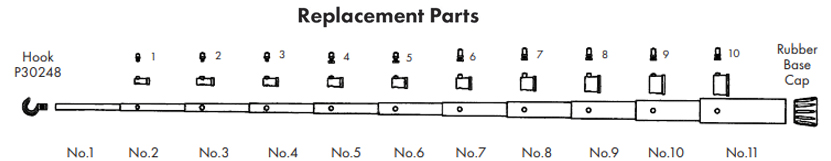

Part No./
Sections		 1 2 3 4 5 6 7 8 9 10 11 Base Cap Hook
M25 (6) P21606 P21446 P21447 P21448 P21449 P21419 P18020 P30248
M35 (8) P21606 P21446 P21447 P21448 P21449 P21450 P21451 P21423 P18029 P30248
M40 (9) P21606 P21446 P21447 P21448 P21449 P21450 P21451 P21452 P21425 P18030 P30248
M50 (11) P21607 P21454 P21455 P21456 P21457 P21458 P21459 P21460 P21461 P21462 P21426 P18035 P30248
Complete Lock Assembly # A14011 A14012 A14013 A14014 A14015 A14031 A14032 A14029 A14030 A14028
Drive Pin/Roll Pin # P16513 P12022 P12022 P12022 P12022 P12022 P12022 P12022 P12022 P12022
Pin & Spring Assembly # A12018 A12004 A12023 A12027 A12020 A12012 A12013 A12015 A12014 A12015
