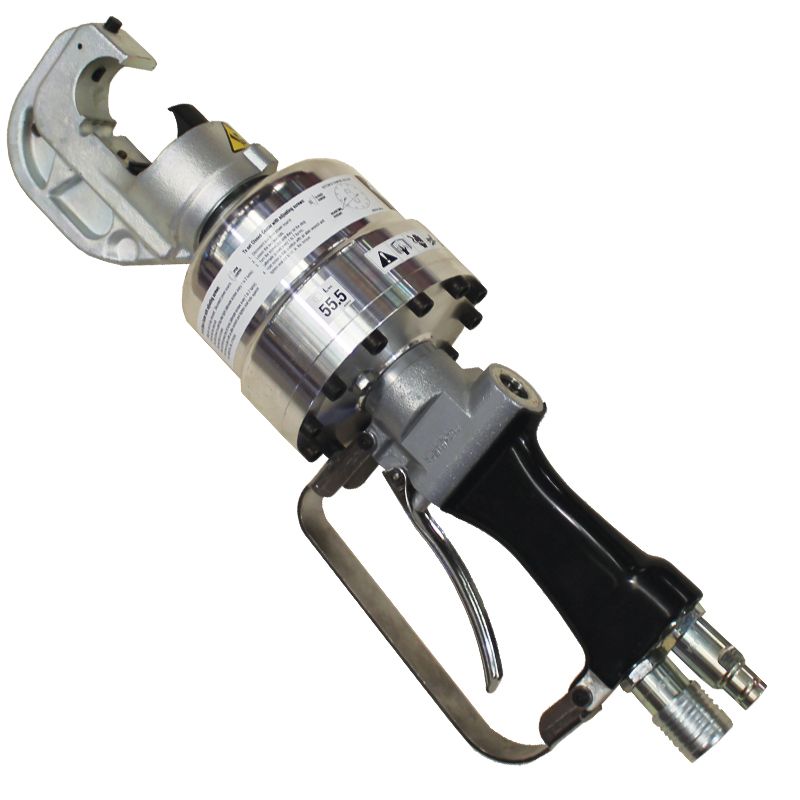

Greenlee 12Ton Low Pressure Remote Crimping Head fitted with Flush Face Couplers, 42mm Jaw Opening


Code: LPK1240-A
Brand: Greenlee
Product Details
Crimper, hydraulic, LP, remote head,12 Ton, DA, rotating head ,42mm jaw, couplers, Greenlee

  • Crimps up to 400mm2 copper and 300mm2 aluminium
  • Relief valve signals operator when crimp is complete
  • Operates on Open- or Closed-Centre hydraulic systems
  • Jaw opening 42mm
  • Head rotates for easy tool positioning

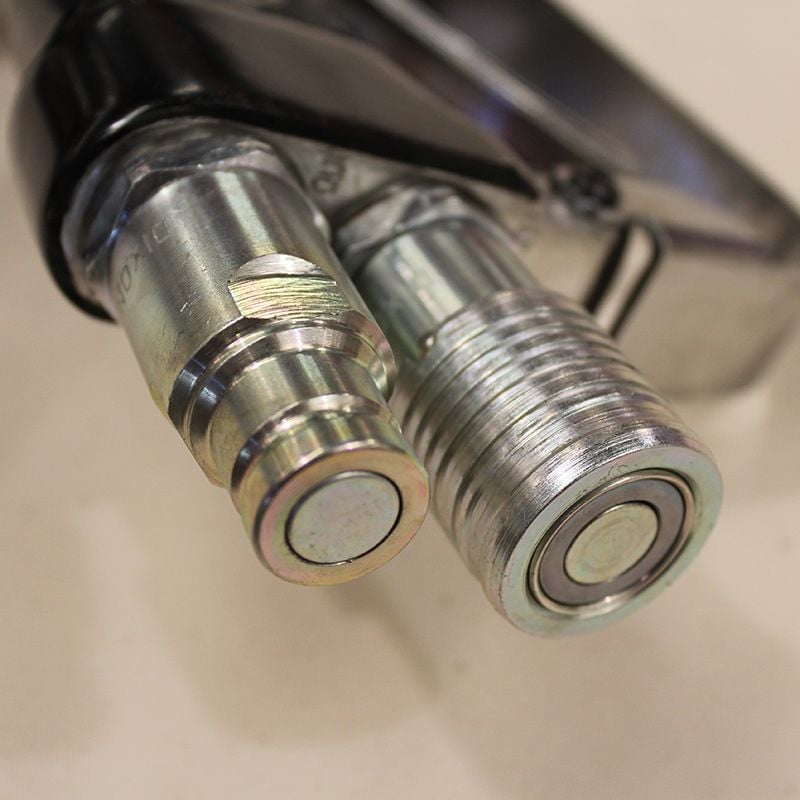

  • Fitted with flush face couplers
Crimping Force106.8kN at 1500psi
Flow Rate 11 - 34 lpm
Jaw Opening 42mm
Operating Pressure1500 - 2500psi /103 - 172bar
Pressure Port3/4 - 16 SAE O-Ring
Return Port3/4 - 16 SAE O-Ring
Length515mm
Tool Weight8.9kg
Width140mm

Compatible with dies for:
• Klauke
• Utilux
• Burndy
• Alcoa
• Anderson
• Thomas & Betts
