Die, Set, 6T, Cu, 10 dies, 16-240mm2, inc. 18 compartment metal box
Code: K6CUSET-16-240
Brand: TEN
Product Details
Die, Set, 6T, Cu, 10 dies, 16-240mm2, inc. 18 compartment metal box
Kit Components
This item contains the following components:
- 1 x Die, 6T, hex, Cu, 6.3mm AF, 16mm2, 6mm W, TEN
- 1 x Die, 6T, Cu, 7.7mm AF, 25mm2, 12.0mm W, TEN
- 1 x Die, 6T, hex, Cu, 9.2mm AF, 35mm2, 12mm W, TEN
- 1 x Die, 6T, hex, Cu, 10.4mm AF, 50mm2, 9mm W, TEN
- 1 x Die, 6T, Cu, 11.5mm AF, 70mm2, 9.0mm W, TEN
- 1 x Die, 6T, hex, Cu, 14.2mm AF, 95mm2, 6.0mm, TEN
- 1 x Die, 6T, hex, Cu, 16.5mm AF, 120mm2, 6.0mm W, TEN
- 1 x Die. 6T, hex, Cu, 18.3mm AF, 150mm2, 5.0mm W, TEN
- 1 x Die, 6T, hex, Cu, 20mm AF, 185mm2, 5.0mm W, TEN
- 1 x Die, 6T,hex, Cu, 23.1mm AF, 240mm2, 5.0mm W, TEN
- 1 x Box, die, 18 compartments, steel, red, 345 x 180 x 60mm, storage, clasp, handle, TEN
6 Tonne Copper Die set, (10 dies - 16 to 240mm2) Suits EK425FSCFM
Part No. | Size (mm²) | Across Flats (mm) | Crimp Width (mm) |

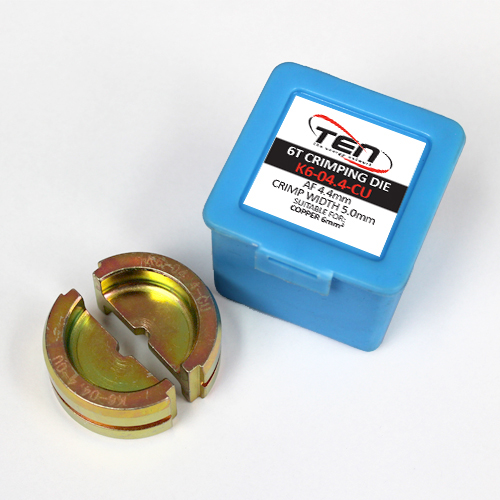

K6-04.4-CU | 6 | 4.4 | 5.0 |
K6-05.7-CU | 10 | 5.7 | 5.0 |
K6-06.3-CU | 16* | 6.3 | 6.0 |
K6-07.7-CU | 25* | 7.7 | 12.0 |
K6-09.2-CU | 35* | 9.2 | 12.0 |
K6-10.4-CU | 50* | 10.4 | 9.0 |
K6-11.5-CU | 70* | 11.5 | 9.0 |
K6-14.2-CU | 95* | 14.2 | 6.0 |
K6-16.5-CU | 120* | 16.5 | 6.0 |
K6-18.3-CU | 150* | 18.3 | 5.0 |
K6-20.0-CU | 185* | 20.0 | 5.0 |
K6-23.1-CU | 240* | 23.1 | 5.0 |
K6CUSET-16-240 | *16 to 240 (10 Dies) including 20 compartment metal box |
