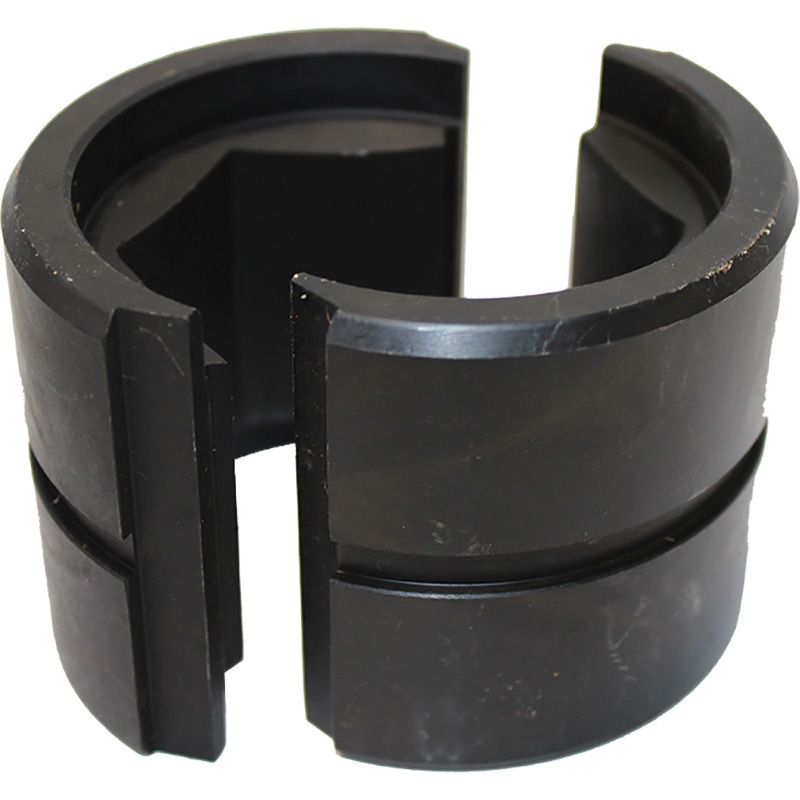

Die, 60T, hex, Al, 40.0mm AF, 50.0mm W, TEN

Ten Group // HYDRAULIC TOOLS & EQUIPMENT // Dies // Crimping Dies 60T // Die, 60T, hex, Al, 40.0mm AF, 50.0mm W, TEN

Code: K60-40.0-AL
Brand: TEN
Product Details
Die, 60T, hex, Al, 40.0mm AF, 50.0mm W, TEN

Part No	Type	Conductor	A/F	Width
K60-23.1-CU	Cu	240mm2	23.1mm	25.0mm
K60-26.0-CU	Cu	300mm2	26.0mm	25.0mm
K60-28.1-CU	Cu	400mm2	28.1mm	25.0mm
K60-31.0-CU	Cu	500mm2	31.0mm	25.0mm
K60-37.0-CU	Cu	630mm2	37.0mm	25.0m
K60-43.2-CU	Cu	800mm2	43.2mm	25.0mm
K60-48.0-CU	Cu	1000mm2	48.0mm	25.0mm
K60-28.3-AL	Al	240-300mm2	28.3mm	50.0mm
K60-28.5-AL	Al		28.5mm	50.0mm
K60-34.5-AL	Al		34.5mm	50.0mm
K60-39.0-AL	Al	400-500mm2	39.0mm	50.0mm
K60-40.0-AL	Al		40.0mm	50.0mm
K60-43.2-AL	Al	630mm2	43.2mm	50.0mm
K60-44.5-AL	Al		44.5mm	50.0mm
K60-47.5-AL	Al		47.5mm	45.0mm
K60-48.0-AL	Al		48.0mm	45.0mm
K60-52.5-AL	Al	800-1000mm2	52.5mm	40.0mm
K60-16.0-ST	Steel Inner		16.0mm	19.0mm
K60-17.0-ST	Steel Inner		17.0mm	19.0mm
K60-18.0-ST	Steel Inner		18.0mm	19.0mm
K60-19.0-ST	Steel Inner		19.0mm	19.0mm
