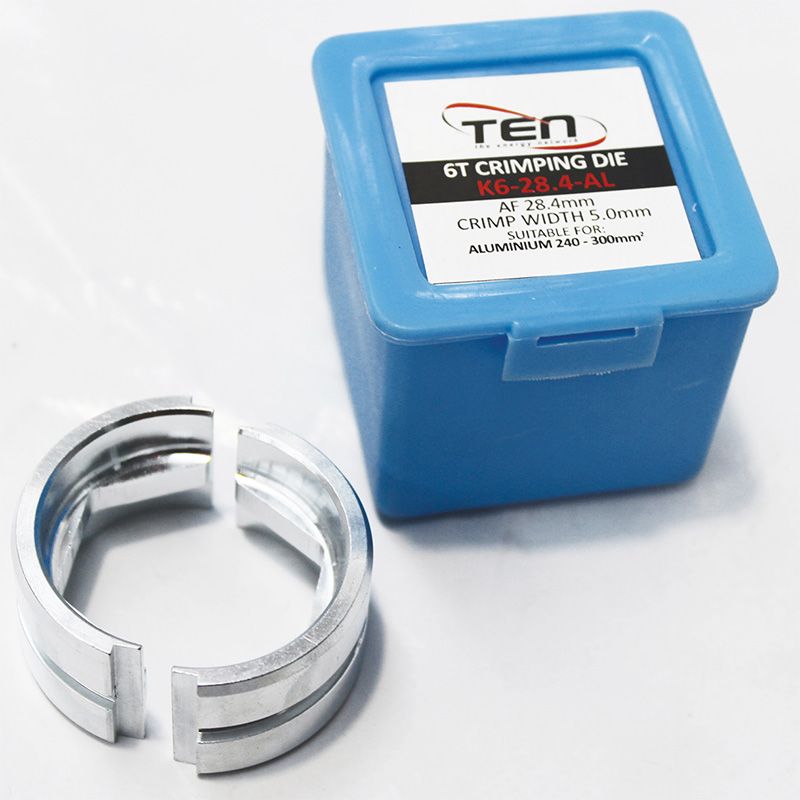

Die, 6T, hex, Al, 28.4mm AF, 240-300mm2, 5.0mm W, TEN
Die, 6T, hex, Al, 28.4mm AF, 240-300mm2, 5.0mm W, TEN
Code: K6-28.4-AL
Brand: TEN
Product Details
Die, 6T, hex, Al, 28.4mm AF, 240-300mm2, 5.0mm W, TEN
Brand: TEN
Product Details
Die, 6T, hex, Al, 28.4mm AF, 240-300mm2, 5.0mm W, TEN
- 6 Tonne Crimping Dies
- Commonly referred to as 'C' or 'U' type dies
- Dies colour coded for easy identification
| Part No | Type | Conductor | A/F | Width |
|---|---|---|---|---|
| K6-04.4-CU | Cu | 6mm2 | 4.4mm | 5.0mm |
| K6-06.3-CU | Cu | 16mm2 | 6.3mm | 17.5mm |
| K6-07.7-CU | Cu | 25mm2 | 7.7mm | 12.0mm |
| K6-09.2-CU | Cu | 35mm2 | 9.2mm | 12.0mm |
| K6-10.4-CU | Cu | 50mm2 | 10.4mm | 9.0mm |
| K6-11.5-CU | Cu | 70mm2 | 11.5mm | 9.0mm |
| K6-14.2-CU | Cu | 95mm2 | 14.2mm | 6.0mm |
| K6-16.5-CU | Cu | 120mm2 | 16.5mm | 6.0mm |
| K6-18.3-CU | Cu | 50mm2 | 18.3mm | 5.0mm |
| K6-20.0-CU | Cu | 185mm2 | 20.0mm | 5.0mm |
| K6-23.1-CU | Cu | 240mm2 | 23.1mm | 5.0mm |
| K6-09.0-AL | Al | 10-35mm2 | 9.0mm | 12.0mm |
| K6-13.2-AL | Al | 50-70mm2 | 13.2mm | 12.0mm |
| K6-17.3-AL | Al | 95-120mm2 | 17.3mm | 12.0mm |
| K6-22.0-AL | Al | 150-185mm2 | 22.0mm | 9.0mm |
| K6-28.4-AL | Al | 240-300mm2 | 28.4mm | 5.0mm |
| K6-14.0-ABC | ABC | 25mm2 | 14.0mm | 9.0mm |
| K6-17.3-ABC | ABC | 35-70mm2 | 17.3mm | 9.0mm |
| K6-21.5-ABC | ABC | 95-150mm2 | 21.5mm | 9.0mm |
