Die, 45T, hex, suit 300mm 2 Copper, 26.0mm AF, 25.0mm W, TEN


Code: K45-26.0-CU
Brand: TEN
Product Details

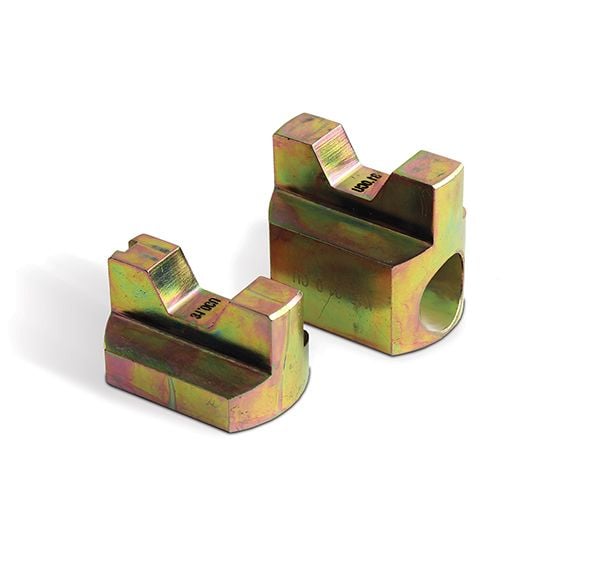

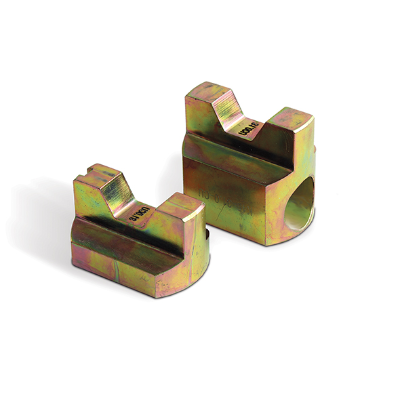

Die, 45T, hex, suit 300mm 2 Copper, 26.0mm AF, 25.0mm W, TEN

45Tonne crimp Dies (Suits 45 tonne cable Crimping Head)

Part No. K45-26.0-CU

High quality crimp dies for crimping lugs and links with a 45 tonne cable crimper

Part NosHex AFConductorCrimp Width

ACSR/AAC/AAAC Dies
K45-28.3-AL28.3mm240-300mm²50mm
K45-39.0-AL39.0mm400-500mm²50mm
K45-43.2-AL43.2mm630mm²50mm

ACSR/AAC/AAAC Dies
K45-22.0-AL22.0mm 50mm
K45-28.5-AL28.5mm 50mm
K45-30.0-AL30.0mm 50mm
K45-34.5-AL34.5mm 50mm
K45-40.0-AL40.0mm 50mm
K45-44.5-AL44.5mm 50mm
K45-47.5-AL47.5mm 50mm
K45-48.0-AL48.0mm 45mm

ACSR Inner Steel Dies
K45-9.5-ST9.5mm 19mm
K45-16.0-ST16.0mm 19mm
K45-17.0-ST17.0mm 19mm
K45-19.0-ST19.0mm 19mm
K45-18.0-ST18.0mm 19mm
K45-20.0-ST20.0mm 19mm

Copper Dies
K45-23.1-CU23.1mm240mm²25mm
K45-26.0-CU26.0mm300mm²25mm
K45-28.1-CU28.1mm400mm²25mm
K45-31.0-CU31.0mm500mm²25mm
K45-37.0-CU37.0mm630mm²25mm
K45-43.2-CU43.2mm800mm²25mm
K45-48.0-CU48.0mm1000mm²25mm
