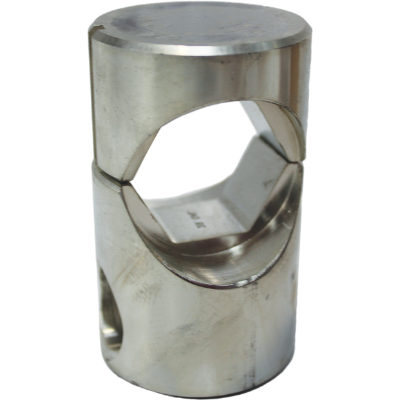

Die, 25T, hex, Al, 39.0mm AF, 400-500mm2, 25.0mm W, TEN

Ten Group // HYDRAULIC TOOLS & EQUIPMENT // Dies // Crimping Dies 25T // Die, 25T, hex, Al, 39.0mm AF, 400-500mm2, 25.0mm W, TEN

Code: K25-39.0-AL
Brand: TEN
Product Details
Die, 25T, hex, Al, 39.0mm AF, 400-500mm2, 25.0mm W, TEN

25 Tonne Crimp / Compression Dies - TEN

Couple with the 25 Tonne hydraulic crimping head (HP25T-SA) for crimping compression lugs, links and sleeves

Part No.	Type	Across Flats (mm)	Conductor	Crimp Width (mm)

ALUMINIUM
K25-30.0-AL	Al	30	19/3.75 AAAC	25
K25-39.0-AL	Al	39	400/500	25
COPPER
K25-18.3-CU	Cu	18.3	150	16
K25-20.0-CU	Cu	20	185	16
K25-23.1-CU	Cu	23.1	240	16
K25-26.0-CU	Cu	26	300	16
K25-28.1-CU	Cu	28.1	400	16
K25-31.0-CU	Cu	31	500	16
K25-37.0-CU	Cu	37	630	12.2
ACSR
K25-28.5-AL	ACSR	28.5	27	30/7/2.50 GRAPE
STEEL ACSR INNER
K25-16.0-ST	Steel ACSR Inner	16.0	17	Inner steel for GRAPE
ROUNDING DIES
K25-22.5-CU	Cu	22.5	300	40
K25-26.0-CU	Cu	26	400	40
K25-29.0-CU	Cu	29	500	40

12 Tonne Die adaptor to utilised 12 tonnes dies with the 25 tonne crimp head also available. See attached Document for further information
