25T Rounding Die, Copper, 26.0mm Round, 400mm2, 40.0mm Wide
25T Rounding Die, Copper,
26.0mm Round, 400mm2, 40.0mm
Wide
Code: K25-26.0-CU
Brand: TEN
Product Details
Die, 25T, rounding, 26.0mm round, 400mm2, 40mmW, TEN
Brand: TEN
Product Details
Die, 25T, rounding, 26.0mm round, 400mm2, 40mmW, TEN

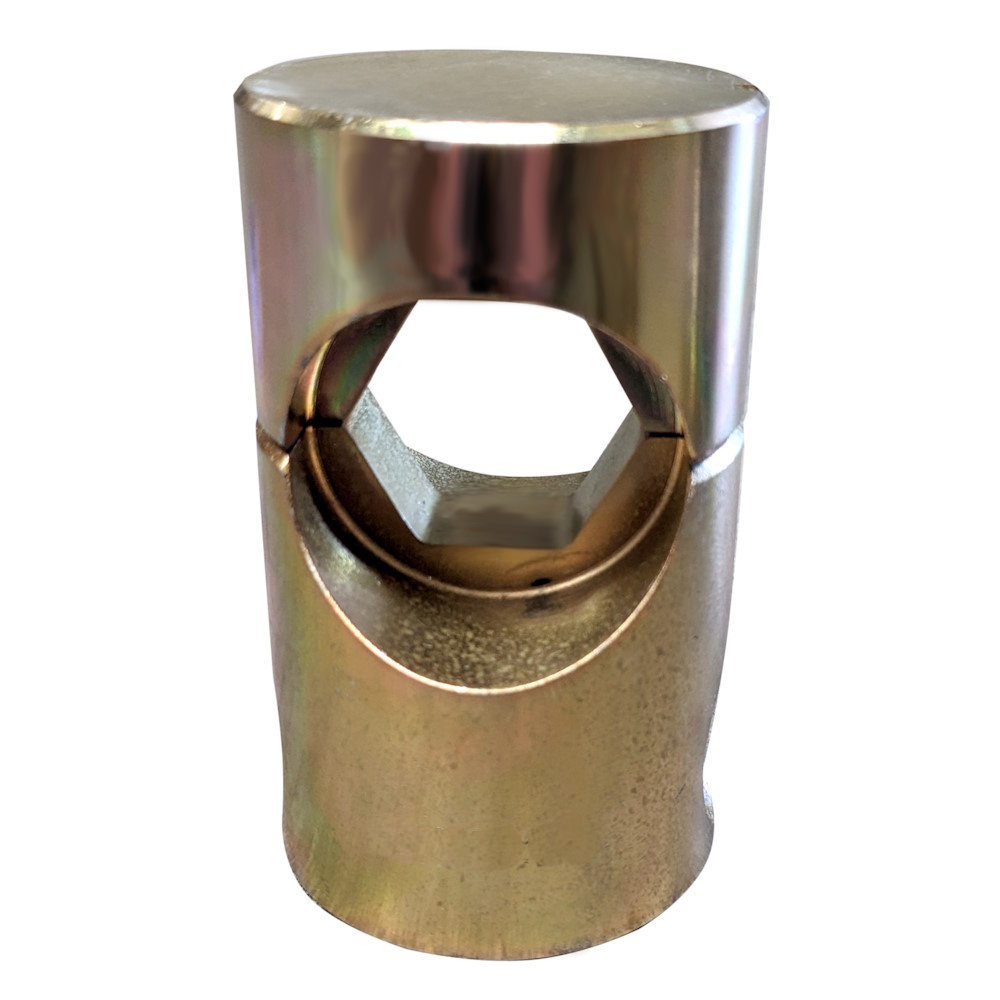

25 Tonne Rounding Dies - TEN
Part No. K25-26.0-CU
Couple with the 25 Tonne hydraulic crimping head (HP25T-SA) for rounding conductor before crimping
ORDERING INFORMATION
| Part No. | Type | Across Flats (mm) | Conductor | Crimp Width (mm) |
|---|---|---|---|---|
| ALUMINIUM | ||||
| K25-30.0-AL | Al | 30 | 19/3.75 AAAC | 25 |
| K25-39.0-AL | Al | 39 | 400/500 | 25 |
| COPPER | ||||
| K25-18.3-CU | Cu | 18.3 | 150 | 16 |
| K25-20.0-CU | Cu | 20 | 185 | 16 |
| K25-23.1-CU | Cu | 23.1 | 240 | 16 |
| K25-26.0-CU | Cu | 26 | 300 | 16 |
| K25-28.1-CU | Cu | 28.1 | 400 | 16 |
| K25-31.0-CU | Cu | 31 | 500 | 16 |
| K25-37.0-CU | Cu | 37 | 630 | 12.2 |
| ACSR | ||||
| K25-28.5-AL | ACSR | 28.5 | 27 | 30/7/2.50 GRAPE |
| STEEL ACSR INNER | ||||
| K25-16.0-ST | Steel ACSR Inner | 16.0 | 17 | Inner steel for GRAPE |
| ROUNDING DIES | ||||
| K25-22.5-CU | Cu | 22.5 | 300 | 40 |
| K25-26.0-CU | Cu | 26 | 400 | 40 |
| K25-29.0-CU | Cu | 29 | 500 | 40 |
12 Tonne Die adaptor to utilised 12 tonnes dies with the 25 tonne crimp head also available. See attached Document for further information
