12T crimping Die
Part No K12-12.7-CS
- Commonly referred to as UG Nest & Indent dies
Contact TEN or download the datasheet on the documentation tab containing information for Special or custom dies.
| 12 Tonne Aluminium Nest and Indent Underground Compression Hex Dies |
|---|
| Conductor Size | 3 Core | 4 Core |
|---|
| Nest Part No | Indent Part No | Nest Part No | Indent Part No |
|---|

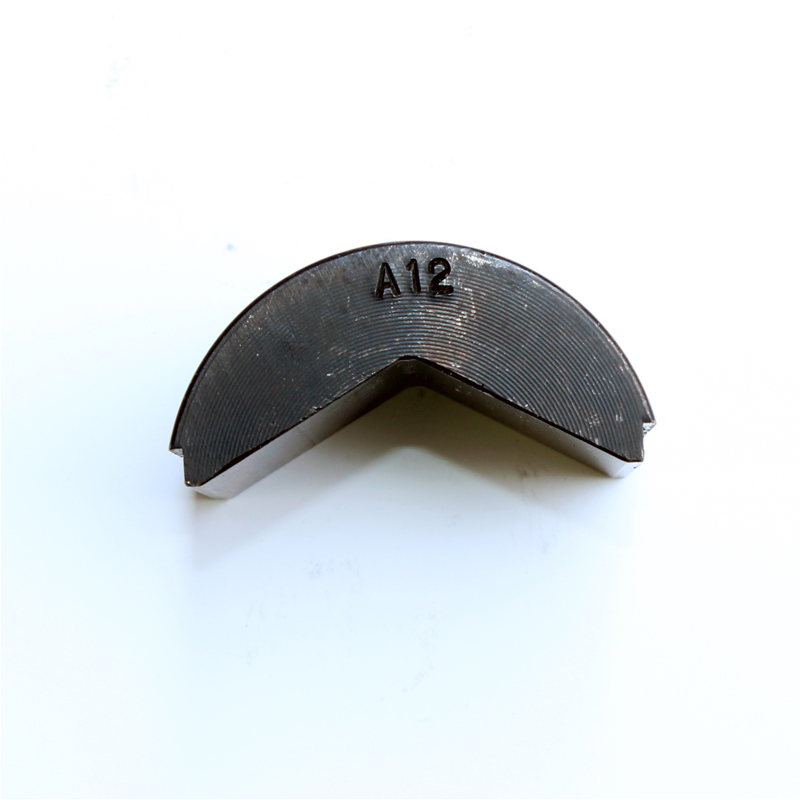

| 120mm2 | K12-ANEST12 | K12-A-INDENT-16 | K12-ANEST14 | K12-A-INDENT-16 |
|---|
| 150mm2 | K12-ANEST12 | K12-A-INDENT-18 | K12-ANEST14 | K12-A-INDENT-18 |
|---|
| 185mm2 | K12-ANEST12 | K12-A-INDENT-18 | K12-ANEST15 | K12-A-INDENT-18 |
|---|
| 240mm2 | K12-ANEST12 | K12-A-INDENT-19 | K12-ANEST15 | K12-A-INDENT-19 |
|---|
| 300mm2 | K12-ANEST12 | K12-A-INDENT-19 | K12-ANEST15 | K12-A-INDENT-19 |
|---|
| 12 Tonne Copper Compression Hex Dies |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-04.4-CU | Cu | 6mm2 | 4.4mm | 6.5mm |
|---|
| K12-05.7-CU | Cu | 10mm2 | 5.7mm | 6.5mm |
|---|
| K12-06.3-CU* | Cu | 16mm2 | 6.3mm | 17.5mm |
|---|
| K12-07.7-CU* | Cu | 25mm2 | 7.7mm | 17.5mm |
|---|
| K12-09.2-CU* | Cu | 35mm2 | 9.2mm | 17.5mm |
|---|
| K12-10.4-CU* | Cu | 50mm2 | 10.4mm | 17.5mm |
|---|
| K12-11.5-CU* | Cu | 70mm2 | 11.5mm | 17.5mm |
|---|
| K12-14.2-CU* | Cu | 95mm2 | 14.2mm | 17.5mm |
|---|
| K12-16.5-CU* | Cu | 120mm2 | 16.5mm | 14mm |
|---|
| K12-18.3-CU* | Cu | 150mm2 | 18.3mm | 14mm |
|---|
| K12-20.0-CU* | Cu | 185mm2 | 20mm | 14mm |
|---|
| K12-23.1-CU* | Cu | 240mm2 | 23.1mm | 10mm |
|---|
| K12-26.0-CU* | Cu | 300mm2 | 26mm | 10mm |
|---|
| K12-28.1-CU* | Cu | 400mm2 | 28.1mm | 10mm |
|---|
Die Sets below are made up using dies (above) marked with asterix *
| 12 Tonne Copper Compression Hex Die Sets |
|---|
| Part No | Description |
|---|
| K12CUSET-16-400 | 16mm2 to 400mm2 (12 Dies) Including 20 compartment metal box |
|---|
| K12CUSET16-400NB | 16mm2 to 400mm2 (12 Dies) No box included |
|---|
| 12 Tonne Copper Compression Hex Die - Overhead |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-8.3-CU | Cu | 7/1.63 and 7/1.70 | 8.3mm | 9.0mm |
|---|
| K12-9.2-CUOH | Cu | 7/2.00 - 7/2.03 | 9.2mm | 9.0mm |
|---|
| K12-11.5-CUOH | Cu | 7/2.32 | 11.5mm | 9mm |
|---|
| K12-13.0-CU | Cu | 37/.064 - 19/2.11 | 13mm | 17.5mm |
|---|
| K12-13.2-CU | Cu | 19/1.70 | 13.2mm | 17.5mm |
|---|
| K12-14.8-CU | Cu | 19/2.00 - 19/2.11 | 14.8mm | 9.0mm |
|---|
| K12-19.3-CU | Cu | OH 19/2.75 | 19.3mm | 14mm |
|---|
| 12 Tonne Copper Compression Hex Dies - Special |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-08.2-CU | Cu | SPECIAL | 8.2mm | 9mm |
|---|
| K12-19.0-CU | Cu | SPECIAL | 19.0mm | 22.0mm |
|---|
| K12-22.0-CU | Cu | SPECIAL | 22.0mm | 10.0mm |
|---|
| K12-CSFLAT9 | Cu | FLAT Face Half Only | *Determined by Lug Size | 9.9mm |
|---|
Contact lug manufacturer for hex half*
| 12 Tonne Copper Screen Compression Hex Dies |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-07.5-CS | Cu Screen | 35mm2 Triplex | 7.5mm | 16mm |
|---|
| K12-12.7-CS | Cu Screen | 185mm2 Triplex | 12.7mm | 14mm |
|---|
| K12-14.0-CS | Cu Screen | Special | 14mm | 18mm |
|---|
| 12 Tonne Copper “C” Connector Compression Hex Dies |
|---|
| Part No | Type | Burndy Part No | Cabac Part No |
|---|
| K12-U1011 | Cu “C” Connector | U1011 | HT130-C1011 |
|---|
| K12-U997 | Cu “C” Connector | U997 | HT130-C997 |
|---|
| K12-UC | Cu “C” Connector | UC | HT130-CC |
|---|
| K12-UO | Cu “C” Connector | UO | HT130-CO |
|---|
| 12 Tonne Aluminium Compression Hex Die |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-09.0-AL | Al | 6 - 35mm2 | 9mm | 22mm |
|---|
| K12-13.2-AL | Al | 50-70mm2 | 13.2mm | 22mm |
|---|
| K12-17.3-AL | Al | 95 - 120mm2 | 17.3mm | 22mm |
|---|
| K12-22.0-AL | Al | 150 - 185mm2 | 22mm | 18mm |
|---|
| K12-28.4-AL | Al | 240- 300mm2 | 28.4mm | 18mm |
|---|
| 12 Tonne Aluminium Compression Hex Dies - Overhead |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-14.0-AL | Al | OH 7/2.25 | 14mm | 22mm |
|---|
| K12-14.5-AL | Al | OH 7/2.50 | 14.5mm | 22mm |
|---|
| K12-14.8-AL | Al | OH 19/2.00-19/2.11 | 14.8mm | 22mm |
|---|
| K12-18.0-AL | Al | OH 7/3.00 - 7/3.75 | 18mm | 22mm |
|---|
| K12-19.0-AL | Al | OH 7/4.50 | 19mm | 22mm |
|---|
| K12-21.0-AL | Al | 150-185mm2 Utilux | 21mm | 18mm |
|---|
| K12-22.0-AL | Al | 19/3.25 | 22mm | 18mm |
|---|
| K12-25.4-AL | Al | OH 19/3.75* | 25.4mm | 18mm |
|---|
| K12-26.2-AL | Al | OH 19/3.75* | 26.2mm | 18mm |
|---|
| K12-30.3-AL | Al | OH 19/4.75 | 30.3mm | 18mm |
|---|
| 12 Tonne Aluminium Compression Hex Dies - Special |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-16.6-AL | Al | Special | 16.6mm | 22mm |
|---|
| K12-21.5-AL | Al | Special | 21.5mm | 18mm |
|---|
| K12-23.1-AL | Al | Special | 23.1mm | 18mm |
|---|
| K12-24.2-AL | Al | Special | 24.2mm | 18mm |
|---|
| K12-24.9-AL | Al | Special | 24.9mm | 18mm |
|---|
| K12-25.0-AL | Al | Special | 25.0mm | 18mm |
|---|
| K12-30.0-AL | Al | Special | 30.0mm | 18mm |
|---|
| 12 Tonne ACSR Inner Steel Compression Hex Dies |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-06.8-ST | Steel | Inner Steel ACSR | 6.8mm | 10mm |
|---|
| K12-07.5-ST | Steel | Inner Steel ACSR | 7.5mm | 10mm |
|---|
| K12-09.5-ST | Steel | Inner Steel ACSR | 9.5mm | 10mm |
|---|
| 12 Tonne ABC Compression Hex Die |
|---|
| Part No | Type | Conductor | Across Flats | Crimp Width |
|---|
| K12-14.0-ABC | ABC | 25mm2 | 14mm | 9mm |
|---|
| K12-17.3-ABC | ABC | 70mm2 | 17.3mm | 9mm |
|---|
| K12-21.5-ABC | ABC | 95 - 120mm2 | 21.5mm | 9mm |
|---|
