Part, punch/die, ISO-50mm, max 1.6mm stainless, 3.2mm mild steel, suit SB-10B punch, TEN

Part, punch/die, ISO-50mm, max 1.6mm stainless, 3.2mm mild steel, suit SB-10B punch, TEN


Code: ISOPD-50
Brand: TEN
Product Details
Part, punch/die, ISO-50mm, max 1.6mm stainless, 3.2mm mild steel, suit SB-10B punch, TEN

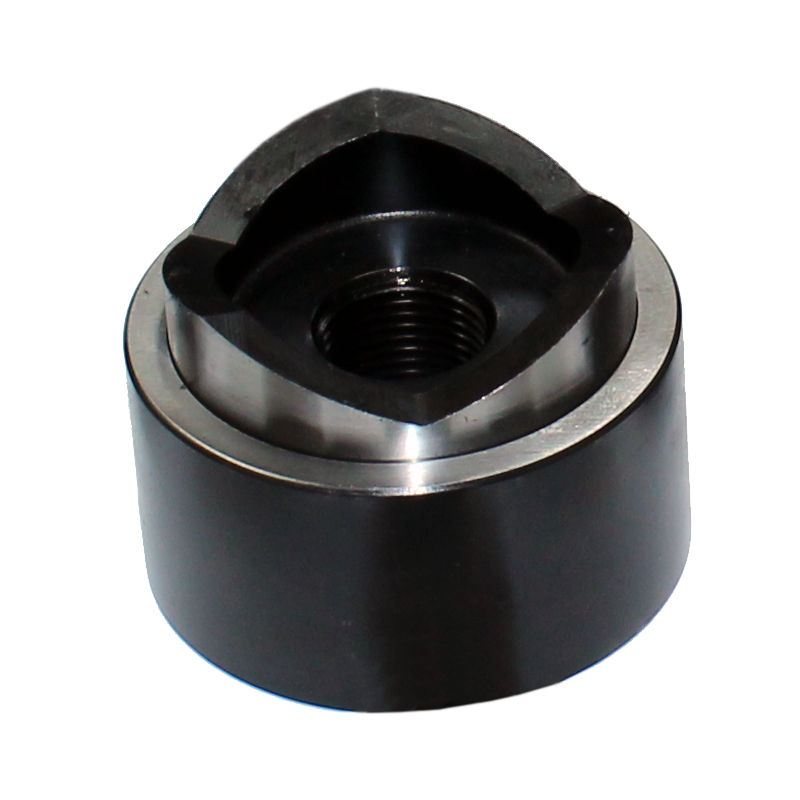

50mm ISO punch/die, to suit SB-10B punch - TEN

Part No. ISOPD-50

Punch-Dies and Draw Stud Part No.s

Part No.Hole SizeImperial Draw StudPart No.
ISOPD-1616mm*3/8” (9.5mm)DS3-8
ISOPD-2020mm*3/8” (9.5mm)DS3-8
ISOPD-22.522.5mm*3/8” (9.5mm)DS3-8
ISOPD-2525mm*3/8" (9.5mm)DS3-8
ISOPD-3232mm*3/4" (19mm)DS3-4
ISOPD-4040mm*3/4” (19mm)DS3-4
ISOPD-5050mm*3/4” (19mm)DS3-4
PD-63.563.5mm3/4” (19mm)DS3-4
PD-7575mm3/4” (19mm)DS3-4
PD-9090mm3/4” (19mm)DS3-4

* included in ISOPD16-50 Punch/die set

Companion Products

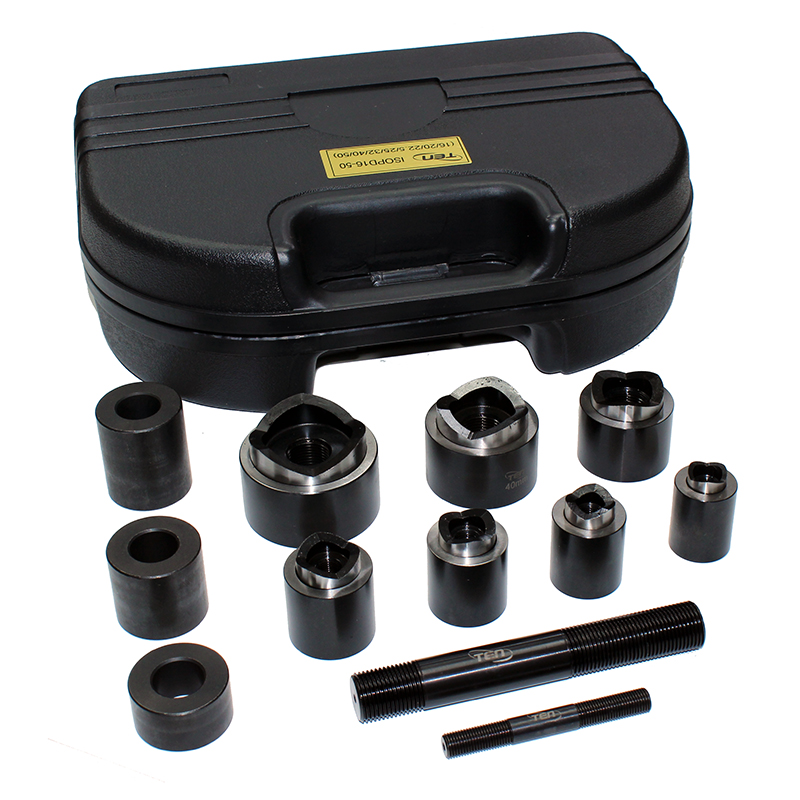

  • Punch die kit, stainless & mild-steel, 7xsets ISO-16-50mm drawstuds, spacers, SB-10B,TEN
