Part, punch/die, ISO-22.5, max 1.6mm stainless, 3.2mm mild steel, suit SB-10B punch, TEN

Part, punch/die, ISO-22.5, max 1.6mm stainless, 3.2mm mild steel, suit SB-10B punch, TEN


Code: ISOPD-22.5
Brand: TEN
Product Details

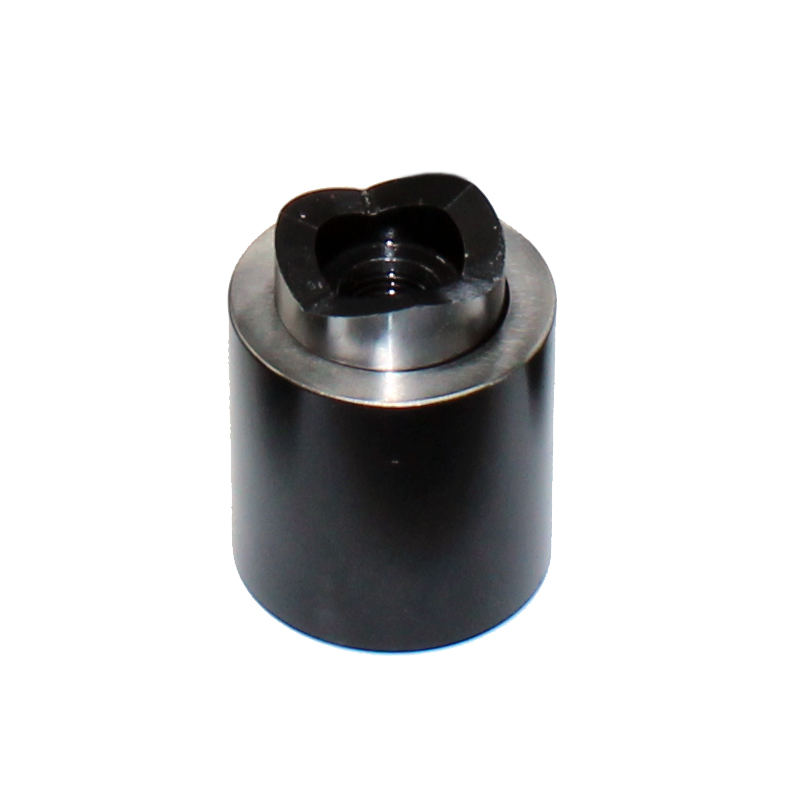

Part, punch/die, ISO-22.5, max 1.6mm stainless, 3.2mm mild steel, suit SB-10B punch, TEN


22.5mm ISO punch/die, to suit SB-10B punch driver - TEN

Part No. ISOPD-22.5

Available Punch-Dies and Draw Stud Part No.s

Part No.Hole SizeImperial Draw StudPart No.
ISOPD-1616mm*3/8” (9.5mm)DS3-8
ISOPD-2020mm*3/8” (9.5mm)DS3-8
ISOPD-22.522.5mm*3/8” (9.5mm)DS3-8
ISOPD-2525mm*3/8" (9.5mm)DS3-8
ISOPD-3232mm*3/4" (19mm)DS3-4
ISOPD-4040mm*3/4” (19mm)DS3-4
ISOPD-5050mm*3/4” (19mm)DS3-4
PD-63.563.5mm3/4” (19mm)DS3-4
PD-7575mm3/4” (19mm)DS3-4
PD-9090mm3/4” (19mm)DS3-4

* included in ISOPD16-50 Punch/die set

Companion Products

  • Punch die kit, stainless & mild-steel, 7xsets ISO-16-50mm drawstuds, spacers, SB-10B,TEN
  • Punch driver, kit, hydraulic handpump 700bar (10,000 psi) 9T punch head, TEN
