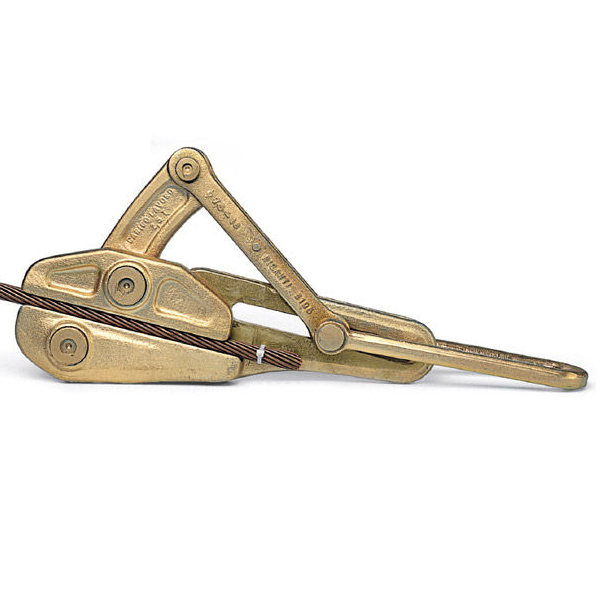

Grip, wire, 7.5-18mm, steel rope, wire, Cu, 125kN breaking load, Riganti
Brand: Riganti
Product Details
Grip, wire, 7.5-18mm, steel rope, wire, Cu, 125kN breaking load, Riganti
Riganti Grips and Liners
See attached "Documentation" for Australian Conductor Size X-Reference
Riganti’s self-gripping comealongs are available for aluminium, ACSR, steel earthwire, antitwisting rope, copper and OPGW conductors.
| Part No | Working Load Limit (kN) |
Minimum Breaking Load (kN) |
Liners | Al, ACSR and Cu (mm) |
Steel, Earth-wire (mm) |
Anti-twist Steel Rope (mm) |
Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| IR-3106 | 50 | 125 | NO | 7.5 | 18 | 7.5 | 18 | 7.5 | 13 | 7 |
Features
- Suitable for steel earth wire, antitwisting rope and copper conductor from 7.5 mm to 18 mm.
- This clamp is made of high tensile alloy steel, hot forged, heat-treated, precision machined and cadmium plated.
Made of high tensile alloy steel, hot forged, heat-treated, precision machined and zinc-plated with a complete range of interchangeable liners. This means working at lower costs on conductors of different materials and diameters only by changing the liners.
The liners are available in aluminium for aluminium or aluminium/steel conductors and bronze for copper conductors, steel anti-twisting rope and steel earthwire.
For OPGW conductor the lower liner is made of Adiprene, whereas the upper liner is made of aluminium.
All Riganti self-gripping clamps comply with European safety standard CE. Special clamps with exact diameters available on request with or without liners.
Other Riganti Grips Available
See attached "Documentation" for Australian Conductor Size X-Reference
| Part No | Working Load Limit (kN) |
Minimum Breaking Load (kN) |
Liners | Al, ACSR and Cu (mm) |
Steel, Earth-wire (mm) |
Anti-twist Steel Rope (mm) |
Weight (kg) |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| IR-3109 | 19.6 | 49 | NO | 2.5 | 15 | 2.5 | 15 | 2.5 | 15 | 1.5 |
| IR-3111* | 21.2 | 64 | YES | 7 | 16 | 7 | 13 | 7 | 13 | 2.5 |
| IR-3108* | 39.5 | 110 | YES | Lifting suspension conductors 7 - 38mm | 5.5 | |||||
| IR-3106 | 50 | 125 | NO | 7.5 | 18 | 7.5 | 18 | 7.5 | 13 | 7 |
| IR-3107* | 49 | 180 | YES | 6 | 23 | 6 | 16 | 6 | 16 | 7 |
| IR-3112* | 49 | 180 | YES | OPGW 6 - 23mm | 7 | |||||
| IR-3105-S* | 88 | 275 | YES | 8 | 35.2 | 8 | 22 | 8 | 24 | 13.5 |
| IR-3104-S* | 117 | 310 | YES | 10 | 45 | 10 | 34 | 8 | 28 | 17 |
*Exact size required for manufacture of liners
