Service Line Tensioner, Series 40 Rope Kit, 8mmOD x 5m, 100kg WLL, 3:1 Double Pulley System
Ten Group
//
Cable Pulling and Hauling Equipment
//
Rope & Tackle
//
Service Cable Tensioners
// Service Line Tensioner, Series 40 Rope Kit, 8mmOD x 5m, 100kg WLL, 3:1 Double Pulley System

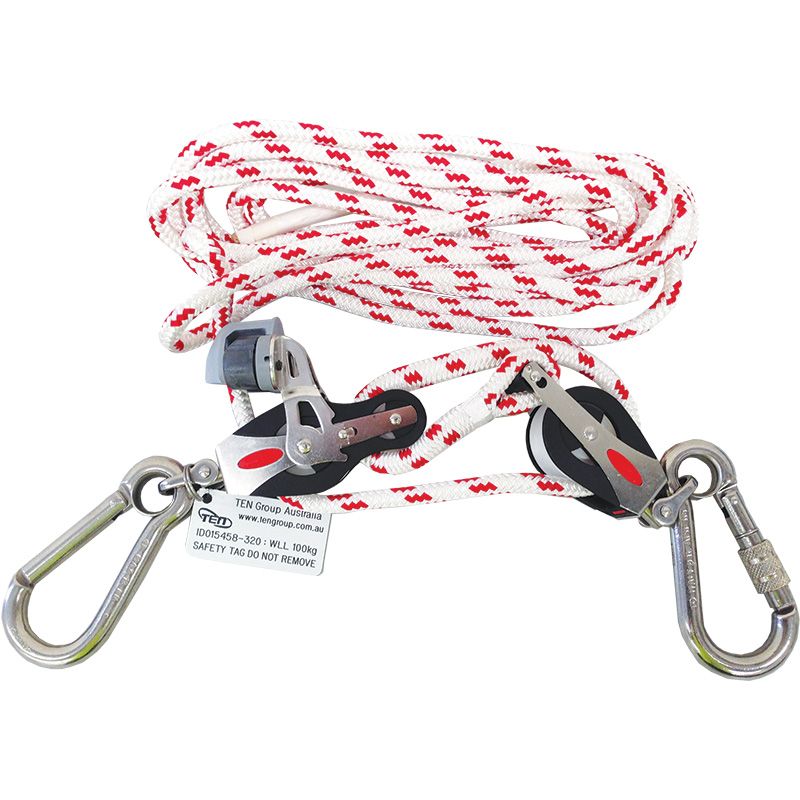

Service Line Tensioner, Series 40 Rope Kit, 8mmOD x 5m, 100kg WLL, 3:1 Double Pulley System
Code:
ID015458-ROPEKIT
Brand:
TEN
Product Details
Tensioner, service line, rope kit, 8mm x 5m, 100kg WLL, 3:1 double pulley system
Product Features and Benefits
Documentation
House Service Line Tensioner
Part No. ID015458-ROPEKIT
Made with high quality yachting components
Specifically designed for lifting service cables and conductors

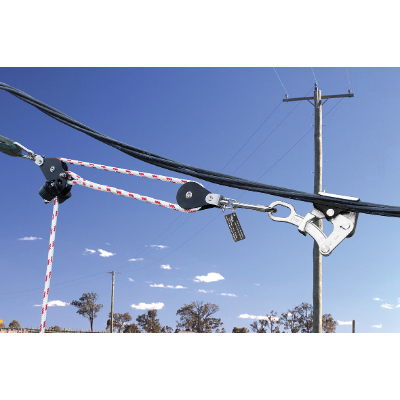

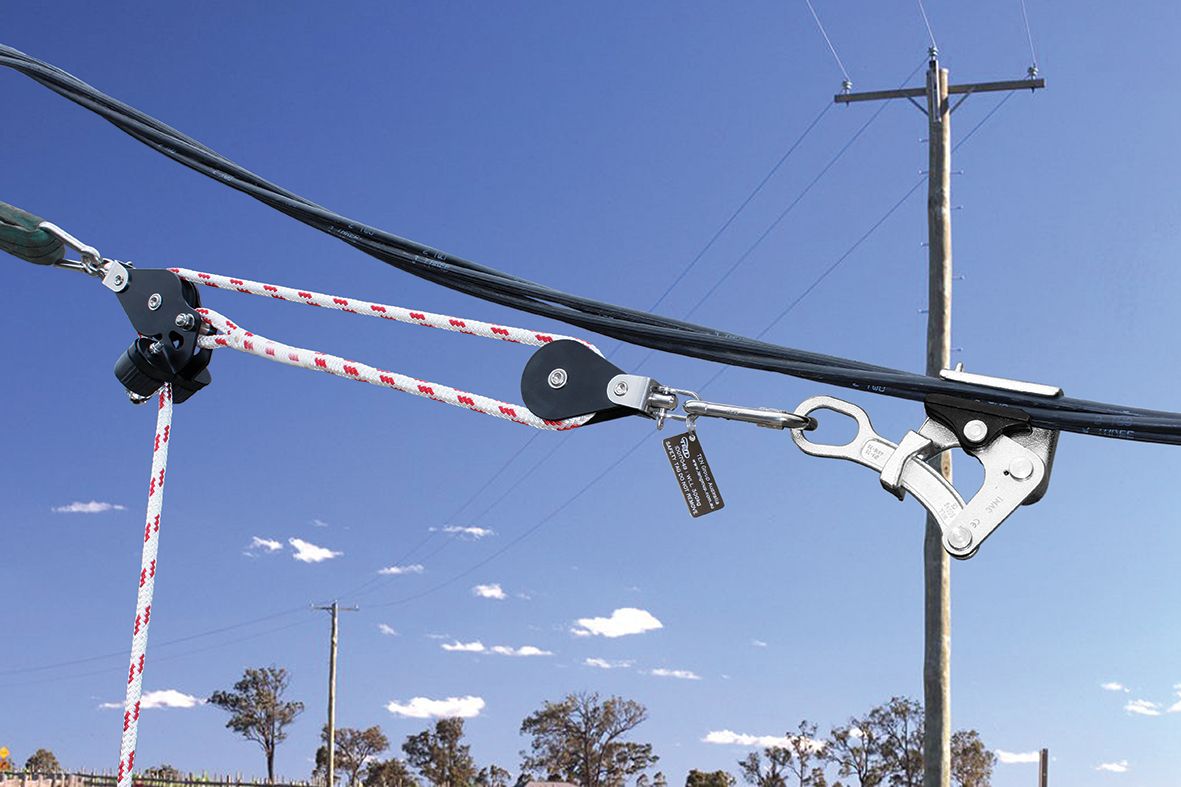

Tensioning of overhead conductors especially ABC service cables
Fitted with detailed information tag
Longer rope lengths available - Contact TEN for further information
Part #
Rope Diameter
Rope Length
WLL
Double Pulley System
Weight
ID015458-ROPEKIT
8mm
5m
100kg
3:1
2.2kg
ID017049-ROPEKIT
12mm
5m
300kg
2:1
2.5kg
TEN Group_Service Tensioner & ABC Grips-0624.pdf
