Crimper, head, hydraulic, 100T double acting, 76mm, max crimp 10,000PSI, handles, Assembly


Code: HP100T-DA-A
Brand: Unspecified
Product Details
Crimper, head, hydraulic, 100T double acting, 76mm, max crimp 10,000PSI, handles, Assembly

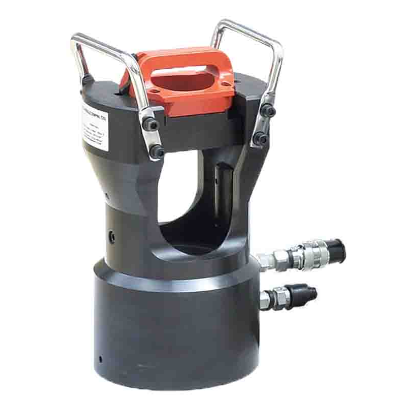

TEN 100T Press Head - Double Acting

Part No. HP100T-DA-A

Double acting high pressure 100T press head/crimper for use with 100T Dies

Operated by a double-acting hydraulic pump.

Features

• High pressure 10,000PSI, Double Acting Hydraulic
• Accepts 100T Izumi Style Dies
• Quick couplers for easy hydraulic assembly and disassembly
• Top of the head rotates 90 degrees and can be lifted off to remove completed connection
Specifications
Output Force:100T
Rated Pressure:10,000PSI (700 Bar)
Crimping Capacity:Max Cu/Al 1000mm2 - Max Steel AF 36mm
Max Stroke:31mm
Weight:31kg (crimp body only)

100T Aluminium Die

Part No.TypeAcross Flats (mm)Crimp Width (mm)
K100-21.0-ALAl21.075.0
K100-25.6-ALAl25.675.0
K100-28.3-ALAl28.375.0
K100-28.5-ALAl28.575.0
K100-30.0-ALAl30.075.0
K100-34.5-ALAl34.575.0
K100-36.22-ALAl36.2275.0
K100-37.0-ALAl37.075.0
K100-39.0-ALAl39.075.0
K100-40.0-ALAl40.075.0
K100-40.21-ALAl40.2175.0
K100-43.2-ALAl43.275.0
K100-44.5-ALAl44.575.0
K100-47.5-ALAl47.575.0
K100-48.0-ALAl48.075.0
K100-49.71-ALAl49.7175.0

100T Steel Inner Die

Part No.TypeAcross Flats (mm)Crimp Width (mm)
K100-07.5-STSteel Inner7.535.0
K100-09.5-STSteel Inner9.535.0
K100-11.0-STSteel Inner11.535.0
K100-16.0-STSteel Inner16.035.0
K100-17.0-STSteel Inner17.035.0
K100-18.0-STSteel Inner18.035.0
K100-19.0-STSteel Inner19.035.0
K100-20.0-STSteel Inner20.035.0
K100-20.22-STSteel Inner20.2235.0
K100-26.0-STSteel Inner26.035.0
