Punch, Battery drill driven, Kit 6 punch/dies 22.5-61.5mm, studs, bits & case, ITOOLco

Ten Group // HYDRAULIC TOOLS & EQUIPMENT // Line Hydraulics // Punch Driver // Punch, Battery drill driven, Kit 6 punch/dies 22.5-61.5mm, studs, bits & case, ITOOLco
Punch, Battery drill driven, Kit 6 punch/dies 22.5-61.5mm, studs, bits & case, ITOOLco


Code: GP122
Brand: iToolco
Product Details
Punch, Battery drill driven, Kit 6 punch/dies 22.5-61.5mm, studs, bits & case, ITOOLco

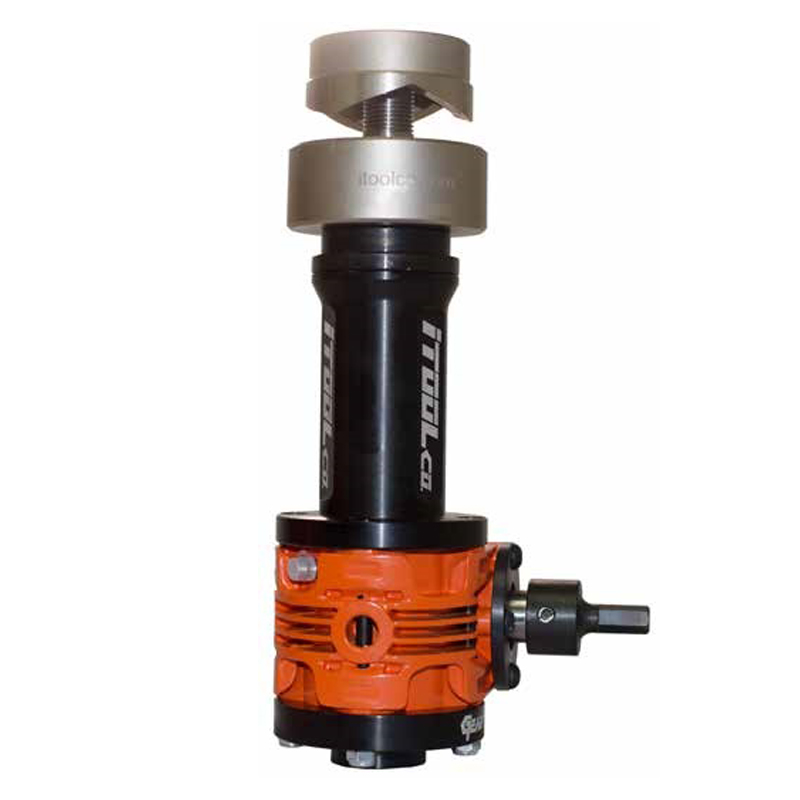

    iToolco Battery Powered Punch Driver

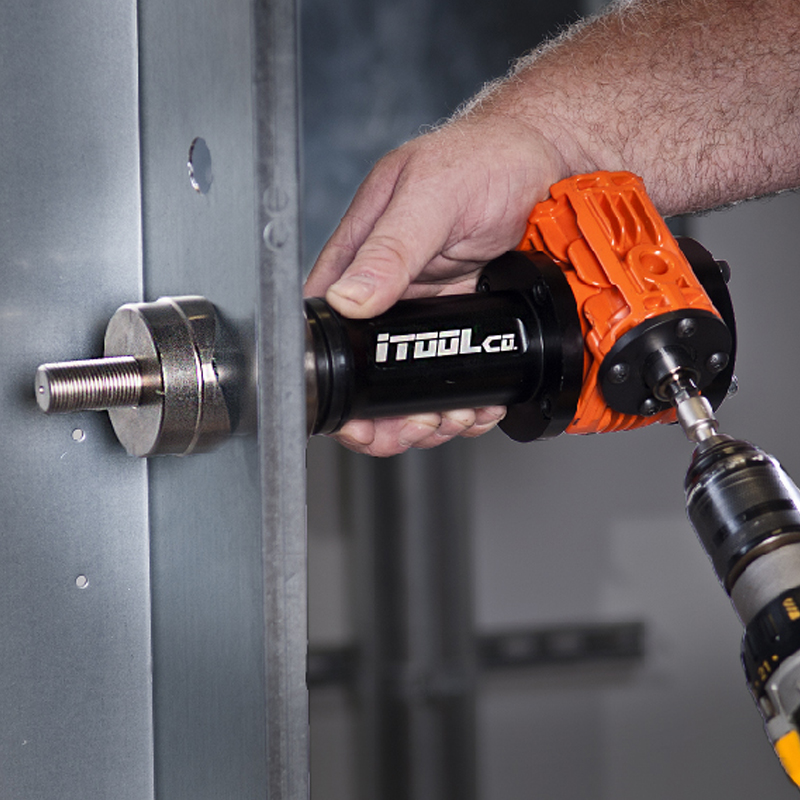

    Operates with most model 230vAC and Battery drills, new or old, with no special add-on tools required. Punches mild and stainless steel up to 152mm. The punches and dies are clearly marked with Centre Point™ marks for perfect alignment, no matter what direction you punch from. Lightweight and easy to use, the Gear Punch™ tool is compatible with other punch and die offerings.

    Features

    • Gear Punch, SS 2.4mm rated
    • Knockout punch and Dies 12.7 through 152mm
    • Draw Stud
    • Step Bits Helical TiAn Coated
    • Nut Drivers
    • Centre Point Knockout Layout Tool
    • Fast and Easy compatible with Corded or Cordless Drill
    • No Leaking Hydraulics
    • No Hydraulic Seals to Replace

    Part No Description
    GP122 Battery Powered Punch Driver

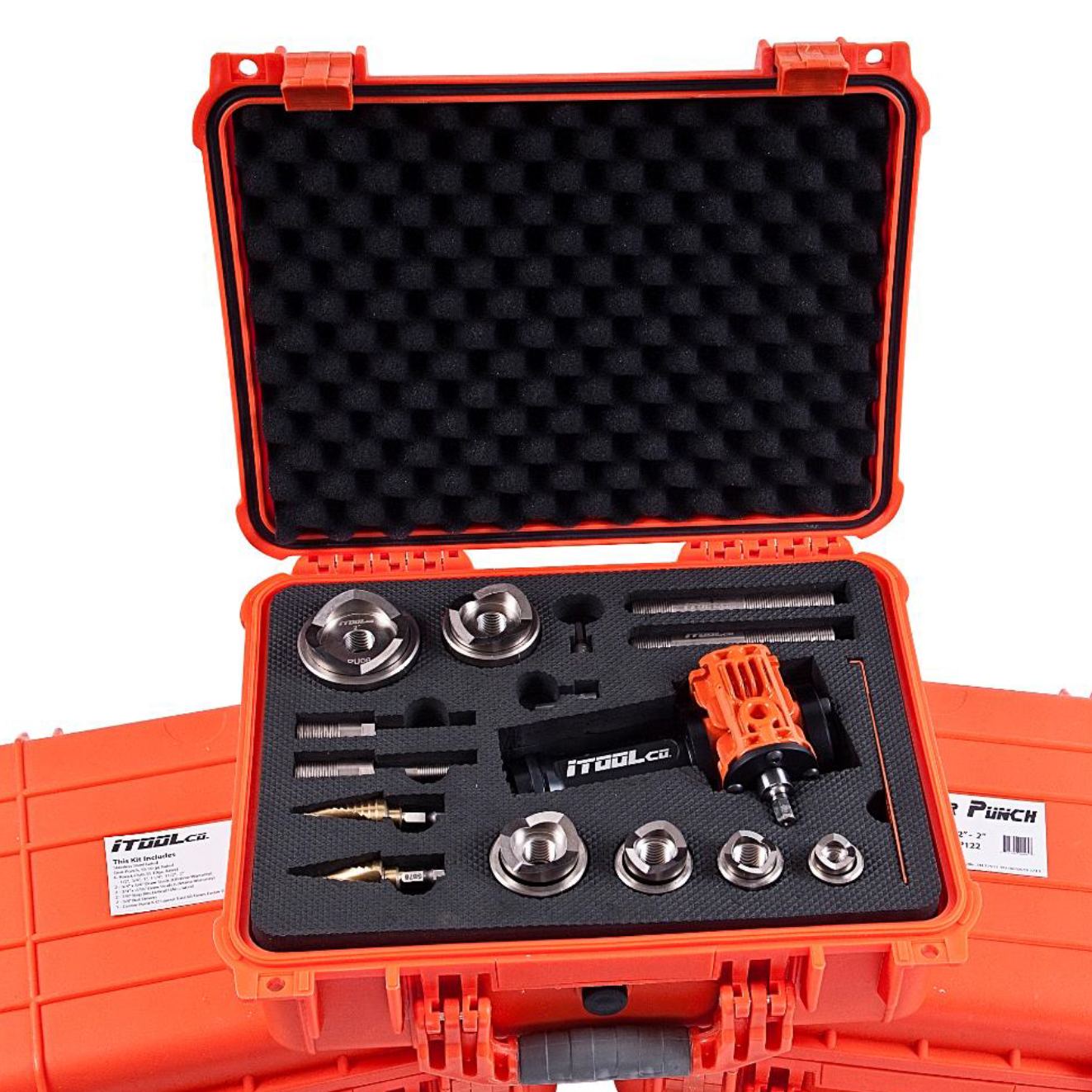

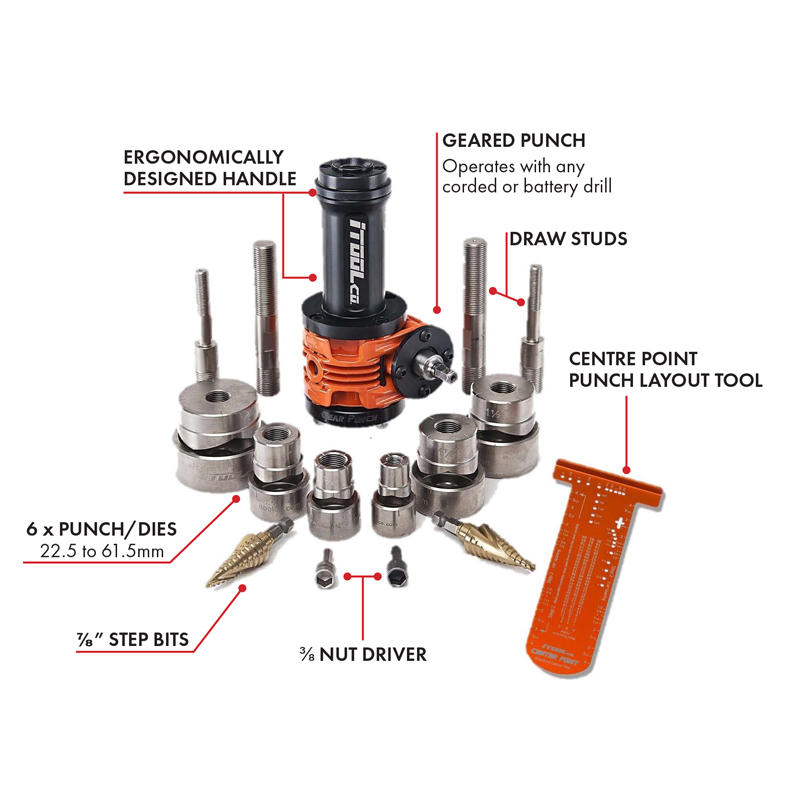

    Kit Includes

    Part No Description Hole Size Quantity
    GP01 Punch Tool - 1
    CP02 Centre Point Knockout Layout Tool - 1
    DS716 ⁷⁄16” x ¾” Draw studs - 2
    DS034 ¾” x ¾” Draw Stud - 2
    ND038 ⅜” Nut Driver - 2
    SB78 ⅞” Step Bit - 2
    PD01 *½” Punch and Die 22.5mm 1
    PD02 *¾” Punch and Die 28.4mm 1
    PD03 *1” Punch and Die 34.5mm 1
    PD04 *1-¼” Punch and Die 43.2mm 1
    PD05 *1-½” Punch and Die 49.6 1
    PD06 *2” Punch and Die 61.5mm 1
    GPD02 ½” – 2” Case - 1

    *Imperial sizes mentioned above refer to actual conduit sizes
