Swivel, joint, 60mm D, 360kN breaking load, 234mm L, 24mm max rope D, Tesmec


Code: GGT030
Brand: Tesmec
Product Details

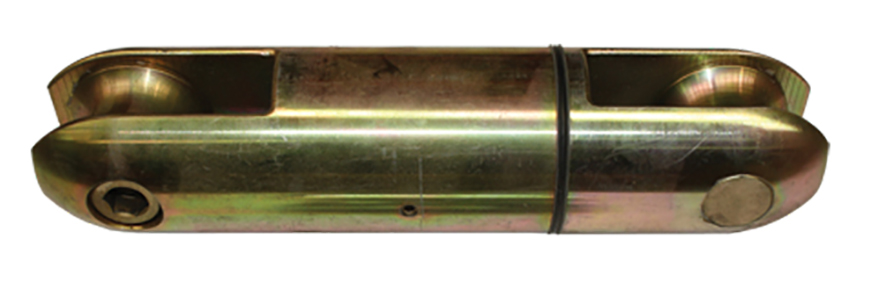

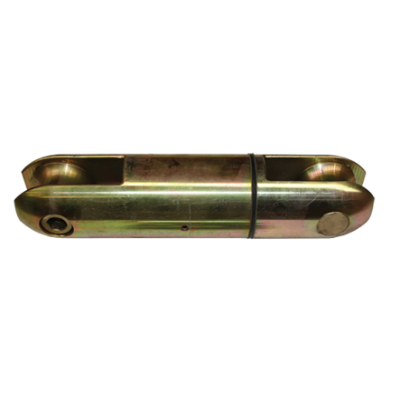

Swivel, joint, 60mm D, 360kN breaking load, 234mm L, 24mm max rope D, Tesmec

  • Swivels for connecting pulling rope to cable sock
  • For Overhead or Underground application
  • Made from high tensile galvanised and corrosion protected steel
  • Chamfered edges allowing smooth passing through rollers or conduit
  • Special design can bear high radial loads. Thrust bearings designed to avoid torsion strain accumulation

SPECIFICATIONS

Part # Max. Rope Size Break Load Diameter Overall Length Weight
GGT001 10mm OD 70kN 28mm 106mm 0.3kg
GGT010 13mm OD 110kN 40mm 143mm 0.9kg
GGT020 18mm OD 220kN 54mm 184mm 2.1kg
GGT030 24mm OD 360kN 60mm 234mm 3.4kg
GGT040 28mm OD 750kN 77mm 322mm 8.2kg
