Cutter, battery hydraulic, 18V, 1000V Insulated, 20mm max Cu/Al/ACSR, skin, Klauke

Cutter, battery hydraulic, 18V, 1000V Insulated, 20mm max Cu/Al/ACSR, skin, Klauke


Code: ES20ISM-0
Brand: Klauke
Product Details
Cutter, battery hydraulic, 18V, 1000V Insulated, 20mm max Cu/Al/ACSR, skin, Klauke

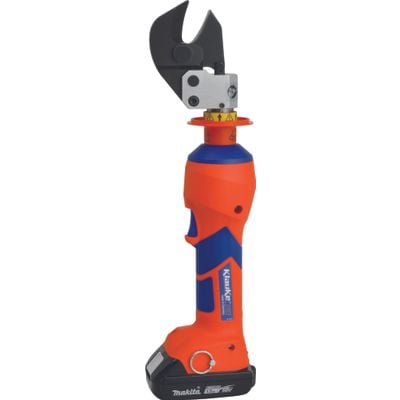

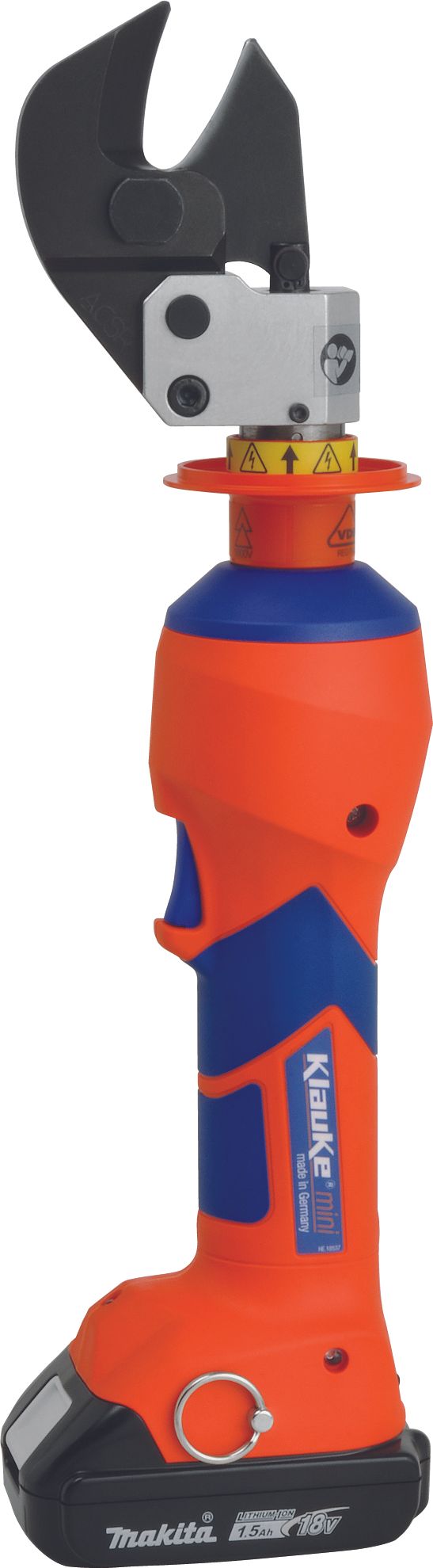

Klauke 1000V Insulated Battery Powered Hydraulic Cutting Tool 20mm

Part No: ES20ISM-0 (skin supplied with case)

Part No: ES20ISM-K (tool supplied with case inc. charger and 2 x batteries)

For cutting Al/St conductors (ACSR), solid Al/Cu cables

Extremely robust design and lightweight

Slim cutting head - ideal when space is critical

All tool data can be viewed using on-tool display and i-press app

Features

  • Makita battery system
  • All data can be easily read via Bluetooth
  • Open head, rotatable
  • Simple and safe: One-button operating concept for controlling all tool functions
  • Safety: Automatic retraction after operation completed
  • Effortless working due to balanced centre of gravity
  • LED for work area illumination
  • LED display for showing tool data
  • Battery charge and service display
Specification
CCutting RangeMax 18mm dia. dependent on cable type
Cutting Force23kN
Cutting Time2-4 secs dependent on cable type
Number of Cutsapprox 160 (ACSR wire 120/20)
BatteryMakita 18V 1.5Ah, Li-Ion
Ambient Temperature-10C up to +40C
Weight Including battery2.15kg
