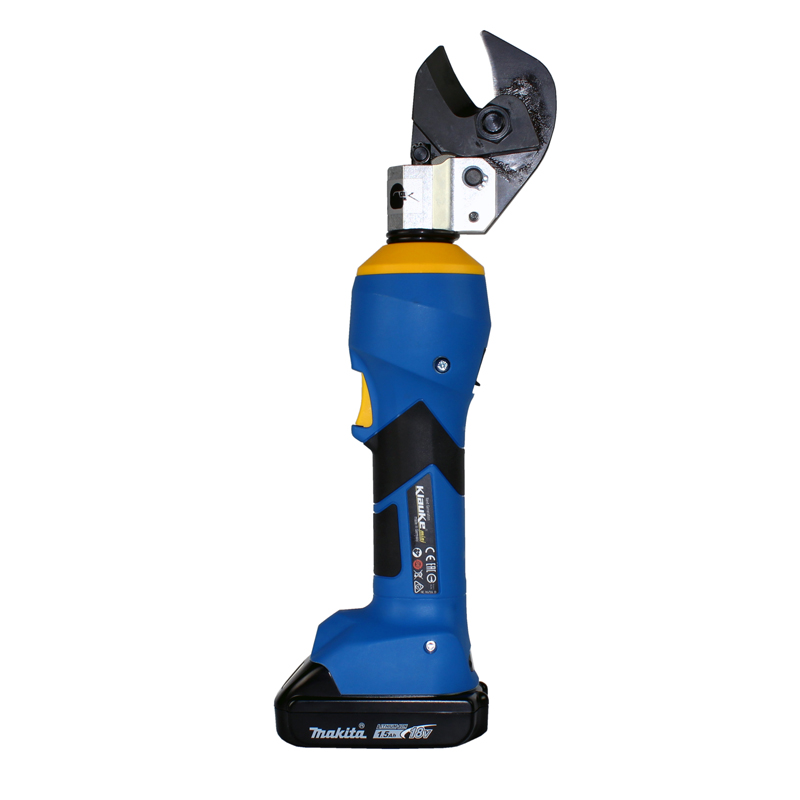

Kit, cutter, battery hydraulic b/tooth, 20mm max, Cu/Al/ACSR, 2 x 1.5Ah 18v Li, chg, Klauke

Ten Group // HYDRAULIC TOOLS & EQUIPMENT // Battery Powered Hydraulic Tools // Battery Powered Cutters // Kit, cutter, battery hydraulic b/tooth, 20mm max, Cu/Al/ACSR, 2 x 1.5Ah 18v Li, chg, Klauke

Code: ES20CFM-K
Brand: Klauke
Product Details
Kit, cutter, battery hydraulic b/tooth, 20mm max, Cu/Al/ACSR, 2 x 1.5Ah 18v Li, chg, Klauke

Kit Components

This item contains the following components:

Part No: EK20CFM-0 (skin supplied with case)

Part No: EK20CFM-K (tool supplied with case inc. charger and 2 x batteries)

For cutting Al/St conductors (ACSR) to DIN EN 50182, solid Al/Cu cables to DIN EN 60228, Class 1 and laminated copper bus bars

Extremely robust design and lightweight

Slim cutting head - ideal when space is critical

All tool data can be viewed using on-tool display and i-press app

Makita battery system
All data can be easily read via Bluetooth
Open head, rotatable
Simple and safe: One-button operating concept for controlling all tool functions
Safety: Automatic retraction after operation completed
Effortless working due to balanced centre of gravity
LED for work area illumination
LED display for showing tool data
Battery charge and service display

Specification
CCutting Range	Max 18mm dia. dependent on cable type
Cutting Force	23kN
Cutting Time	2-4 secs dependent on cable type
Number of Cuts	approx 160 (ACSR wire 120/20)
Battery	Makita 18V 1.5Ah, Li-Ion
Ambient Temperature	-10C up to +40C
Weight Including battery	2.15kg
