Kit, cutter, battery hydraulic b/tooth, 105mm max Cu/Al, 2 x 4Ah Li, charger, Klauke
Code: ES105CFM-K
Brand: Klauke
Product Details
Kit, cutter, battery hydraulic b/tooth, 105mm max Cu/Al, 2 x 4Ah Li, charger, Klauke

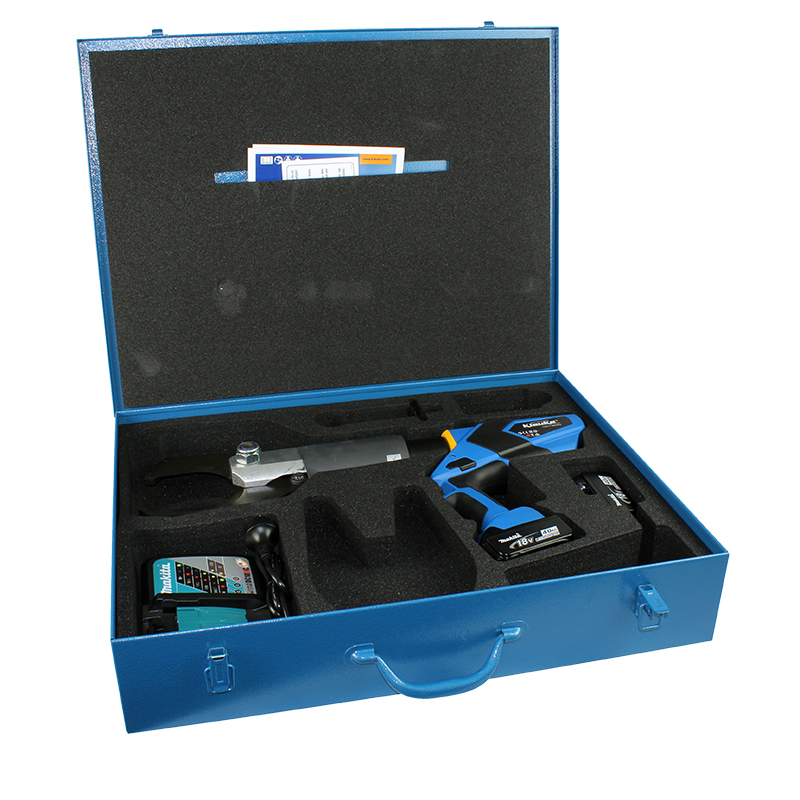

Kit Components
This item contains the following components:
- 1 x Cutter, battery hydraulic, 18V b/tooth, 105mm max, Cu/Al, scissor type, skin, Klauke
- 2 x Battery, spare, 18v Li, 4Ah, 36min charge time, Makita
- 1 x Part, charger, battery, spare, 240v, rapid charge, 18v Li, Makita

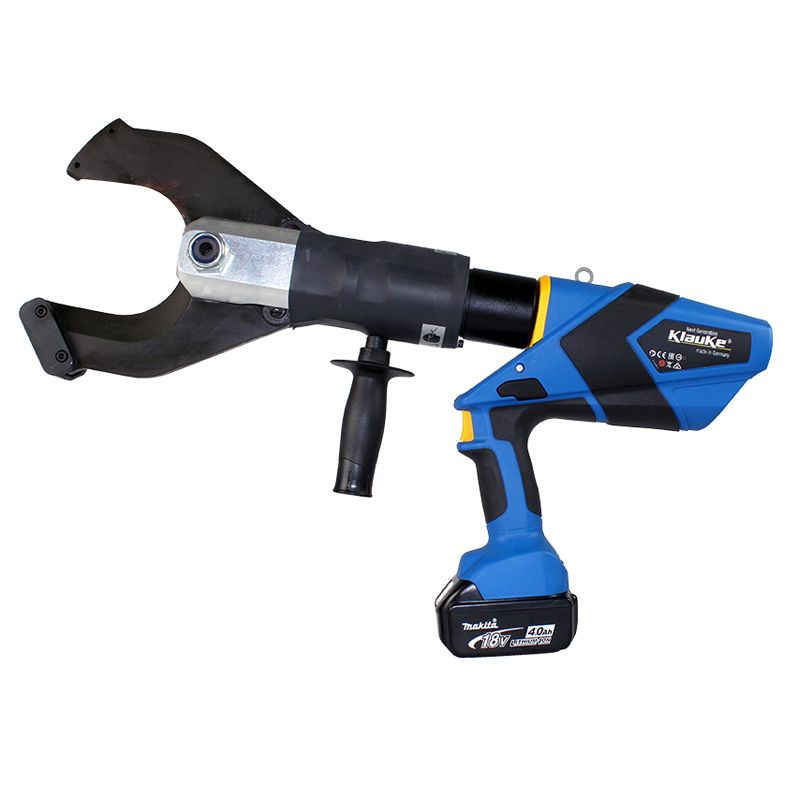

Klauke Battery Powered Hydraulic Cutting Tool 105mm
Part No: ES105CFM-0 (skin supplied with case)
Part No: ES105CFM-K (tool supplied with case inc. charger and 2 x batteries)
Cuts copper and aluminium cables with lightweight steel armouring and fine stranded conductors*
Extremely large cutting area
Saves time with multiple cuts thanks to innovative opening mechanism
All tool data can be viewed using on-tool display and i-press app
Features
- Makita battery system
- All data can be easily read via Bluetooth
- Simple and safe: One-button operating concept for controlling all tool functions
- Effortless working due to balanced centre of gravity
- 2 stage hydraulic system with fast feed and power stroke
- Safety: Automatic retraction after operation completed
- Manual retract stop (MRS) for efficient operation
- LED for work area illumination
- LED display for showing tool data
- Battery charge and service display
Specification | |
Head Type | Cutter Open |
Cutting Range | Max 105mm dia dependent on cable type |
Crimping Force | 74kN |
Cutting Time | dependent on cable type |
Battery | Makita 18V 4.0Ah, Li-Ion |
Charging Time | 22 min |
Ambient Temperature | -10C up to +40C |
Weight Including battery | 9.55kg |
